| Brand Name: | NO |
| Model Number: | TD04L6-15TK31 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

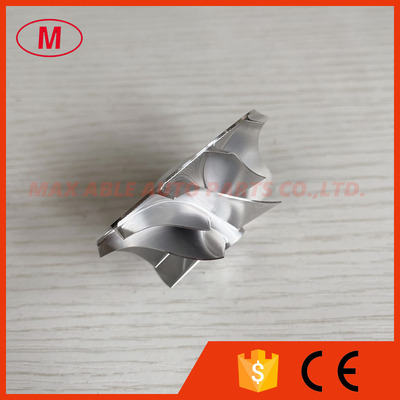

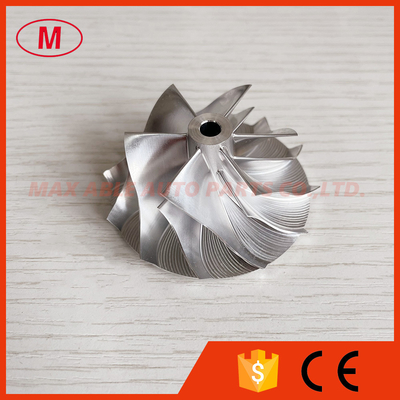

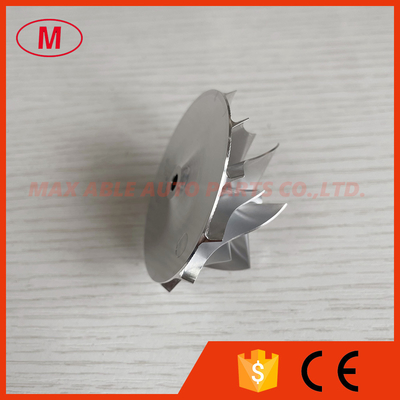

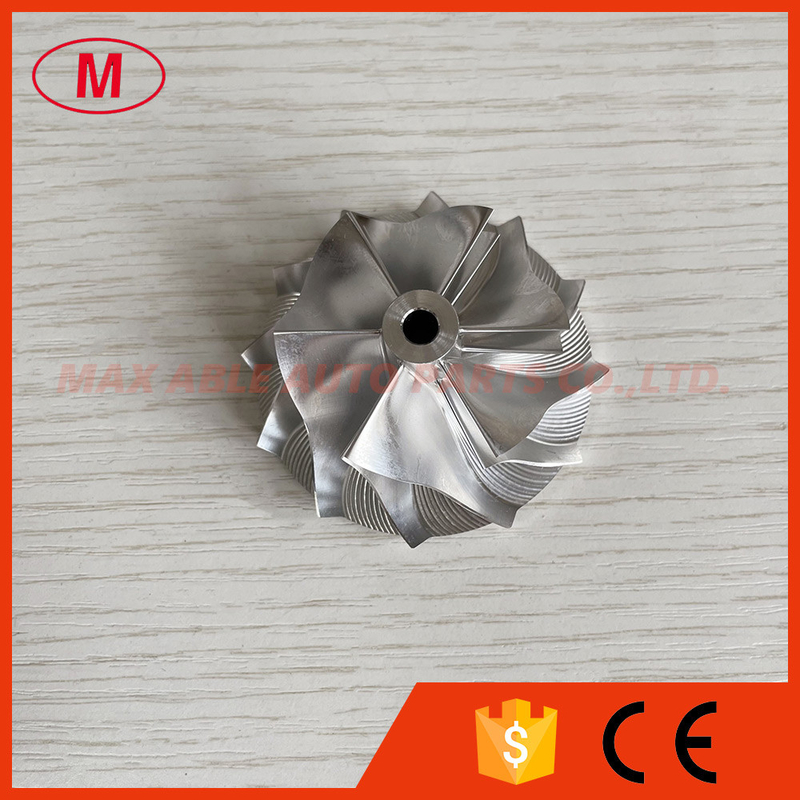

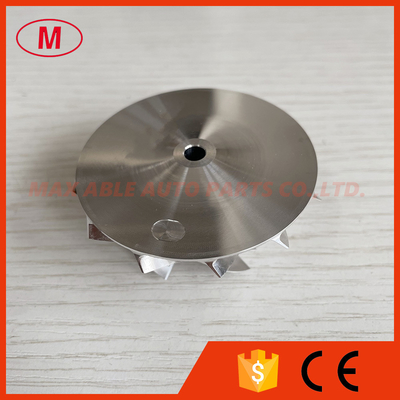

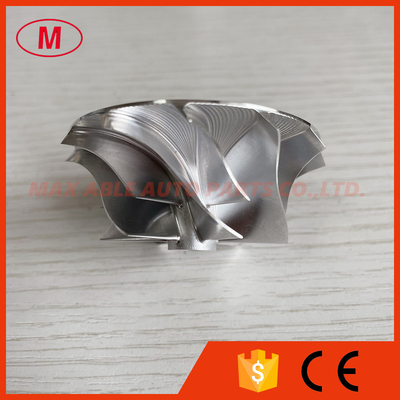

1.Model:TD04L6-15TK31 FORWARD
3.Size:
Nose diamter:10.77mm
inducer:42.00mm
Exduder:56.02mm
Tapered tip exducer:59.95mm
Tip height:4.41mm
Superback:1.83mm
Overall height:26.20mm
bore size :5.00mm
bore type:through
Trailing Angle:55 degree
Cutback:0.00
Blade height:22.38mm
Splitter height:15.40mm
Sp height angle:-2.00
It is custom size,please check carefully before buying.
6+6 blades
Forward rotation
Tapered tip angle:30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
