1.Model:TF035 Forward

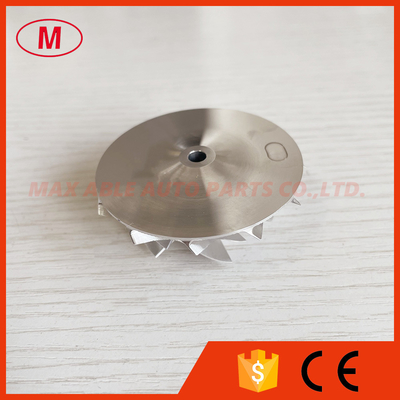

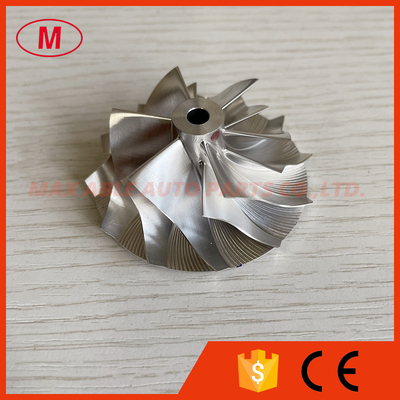

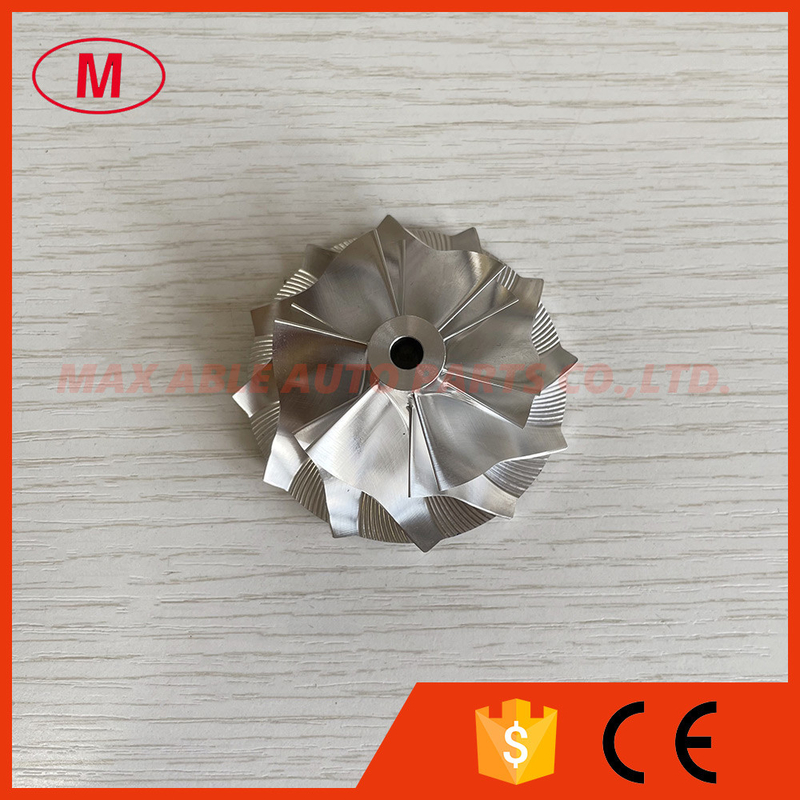

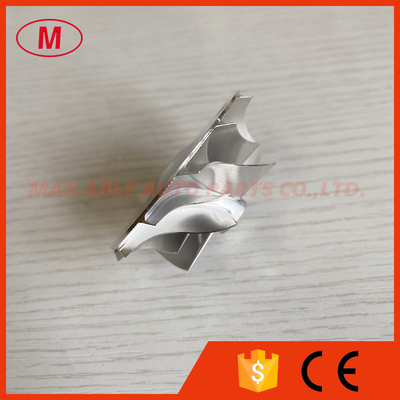

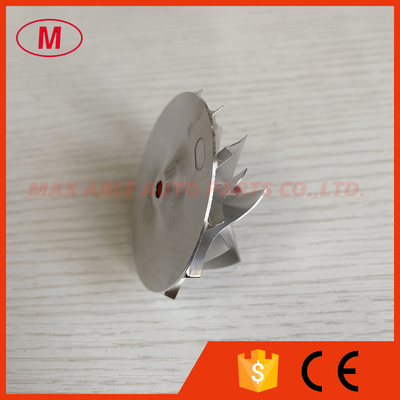

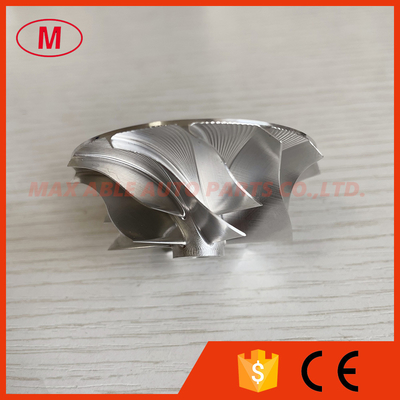

2.TF035 42.24/56.02mm 6+6 blades high performance turbo billet/milling/aluminum 2618 compressor wheel for 49135-05671/320D Upgrade
3.Size:
Nose diameter:11.74mm
Inducer:42.24mm
Exducer:56.02mm
Tapered tip exducer:59.53mm
Tip height:4.04mm
Superback:1.83mm
Overall height:24.20mm
Bore size:5.00mm
bore type:through
Trailing angle:50
Cutback:0.0
Blade height:19.76mm
Splitter height:13.90mm
Sp height angle:0.00
6+6 blades
Forward rotation
Tapered tip angle:30 degree
It is custom size,please check carefully before buying.
4.High quality ,competitive price and good service.
5.We can also produce as your requirement.
All the compressor wheels have been balanced.
6.If you want more details, please send email to me or talk to me online.
We will try our best to meet your needs.
