1.Model: K04 forward

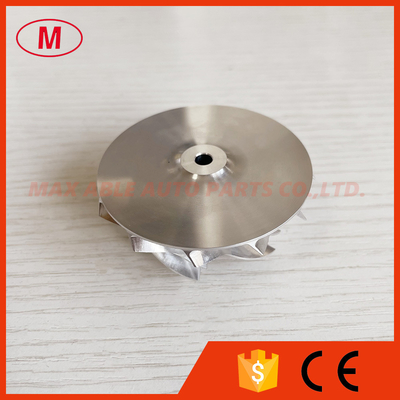

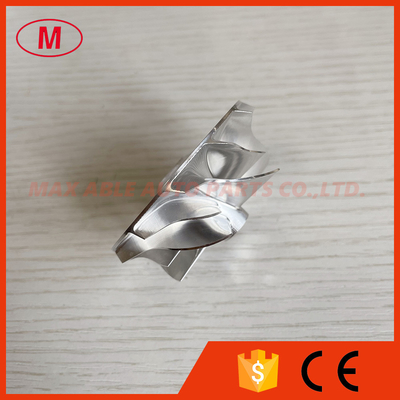

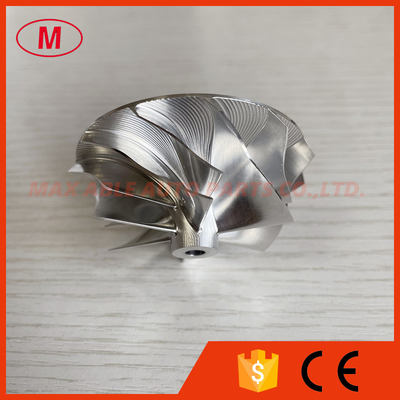

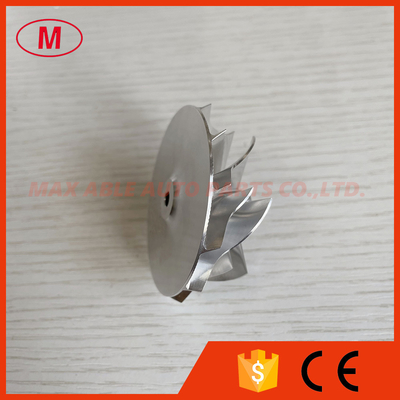

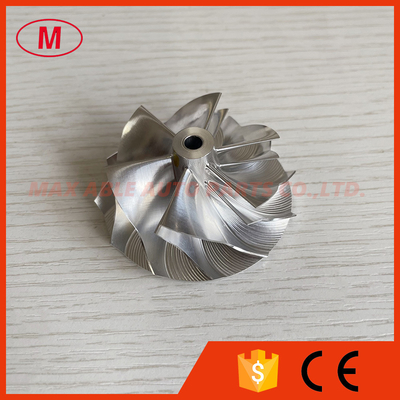

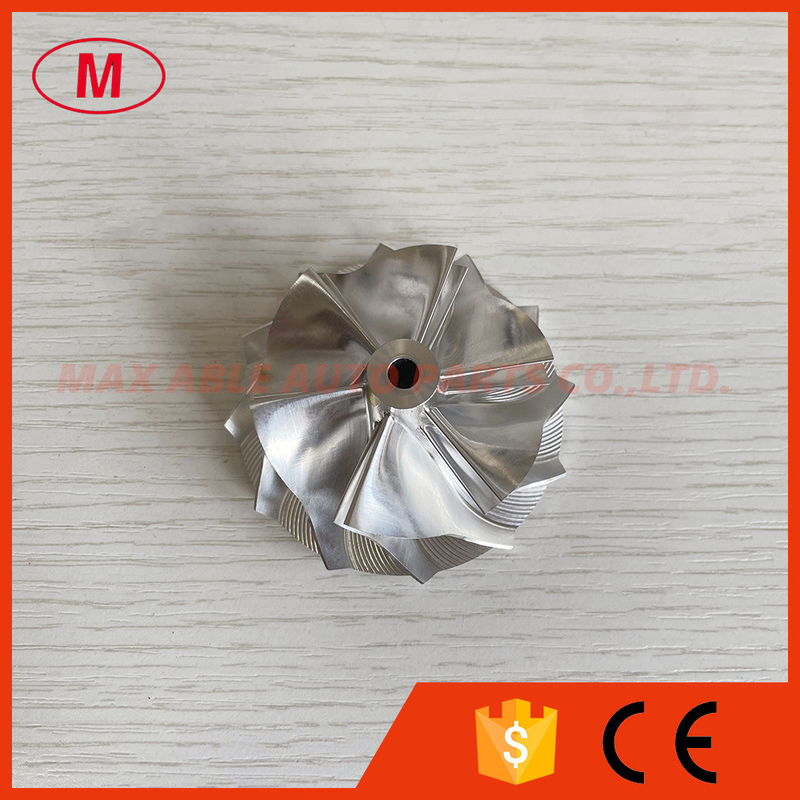

2.K04 46.38/56.10mm 6+6 blades aluminum 2618/milling/ billet compressor wheel
3.SIZE:
Nose Diameter:10.91mm
inducer:46.38mm
Exducer:56.10mm
Tapered tip exducer:59.45mm
Tip height:4.74mm
Superback:1.80mm
Overall height:25.68mm
bore size :4.61mm
bore type:through
Trailing angle:55 degree
Cutback:0.0mm
Sp height angle:0.00
Splitter height:14.50mm
Blades height:20.06mm
6+6 blades
Forward rotation
It is custom size ,please check carefully before buying.
Tapered tip angle:26 degree
4.Good quality and competitive price
5.Please send email to me or talk to me on online ,if you want to know more details.
All the billet compressor wheels have been balanced.
