| Place of Origin: | China |
| Brand Name: | no |
| Model Number: | K16 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:K16 forward

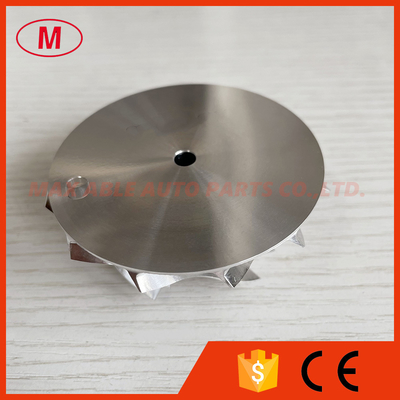

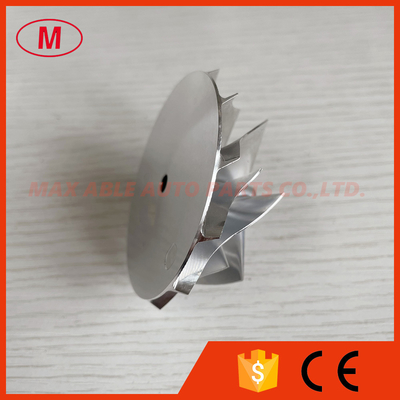

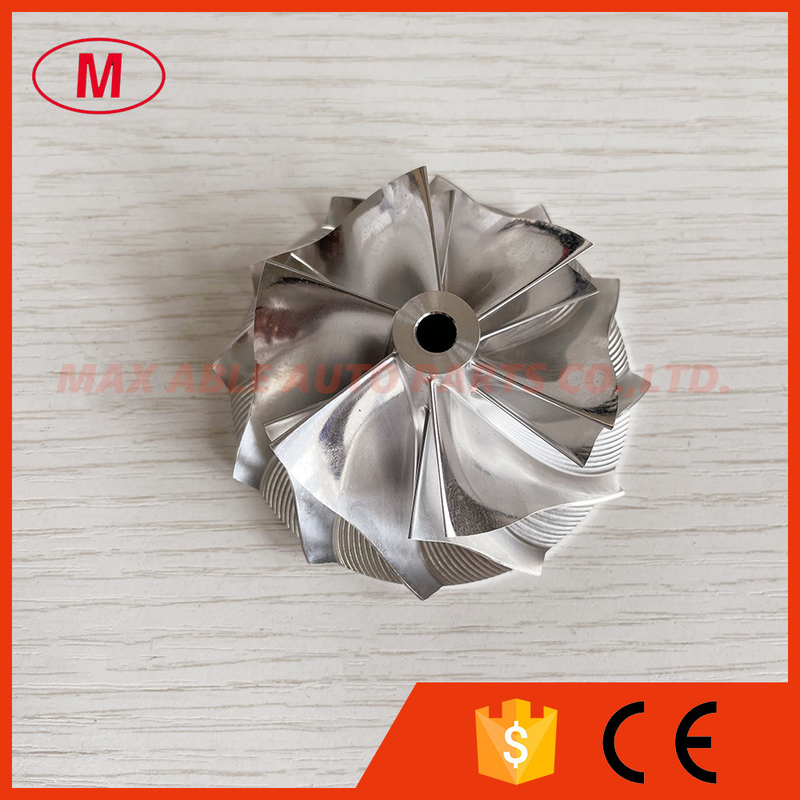

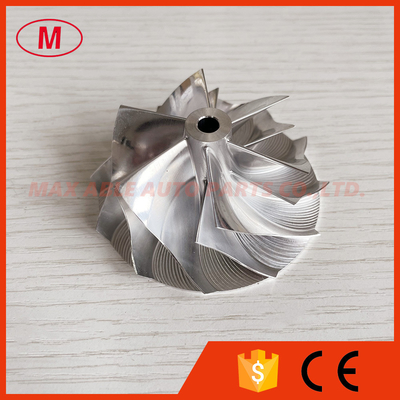

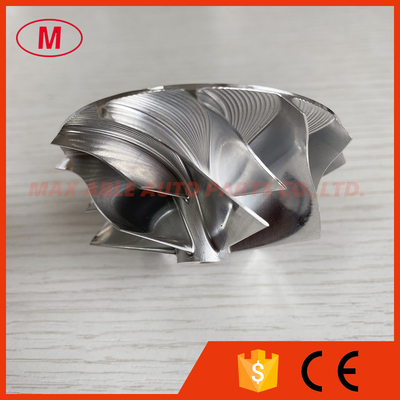

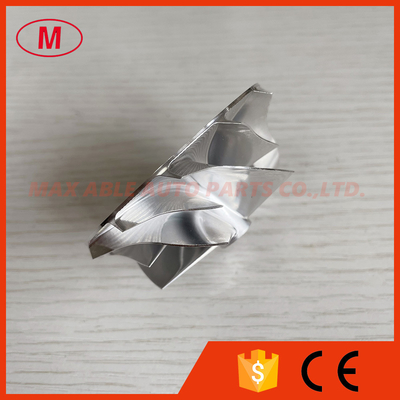

2.K16 54.20/66.57mm 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel.
3.Size:
Nose diameter:11.84mm
inducer:54.20mm
Exduder:66.57mm
Tapered tip exducer:70.99mm
Tip height:4.82mm
Superback:0.00mm
Overall height:28.39mm
bore size :5.41mm
bore type:through
Trailing Angle:55 degree
Cutback:8.0
Blade height:26.33mm
SP height Angle:-5.60
Splitter height:16.30mm
6+6 blades
forward rotation
It is for OE compressor housing
Tapered tip Angle: 30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirements
The more models we also have.
