Customer Satisfy is the eternal pursue of corporation.
Place of Origin: | China |
Brand Name: | no |
Model Number: | TD08 |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT,western union ,paypal |
Supply Ability: | 1000pcs |

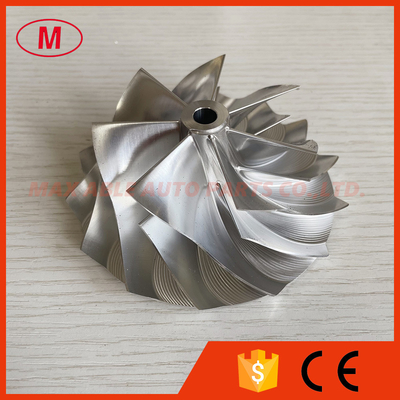

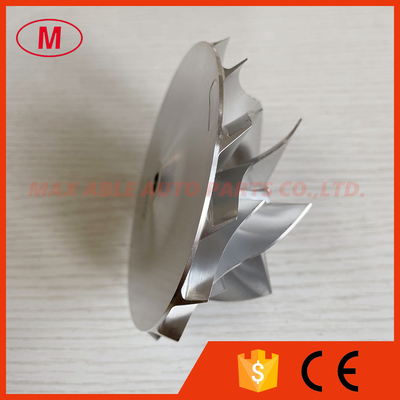

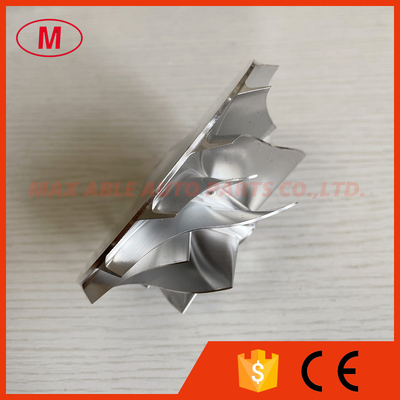

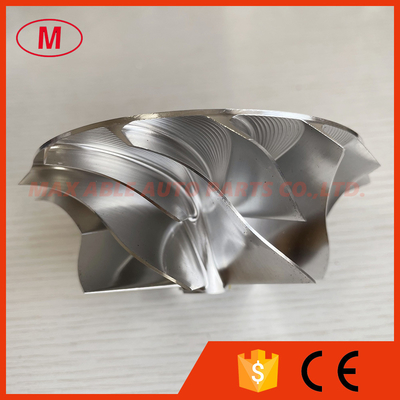

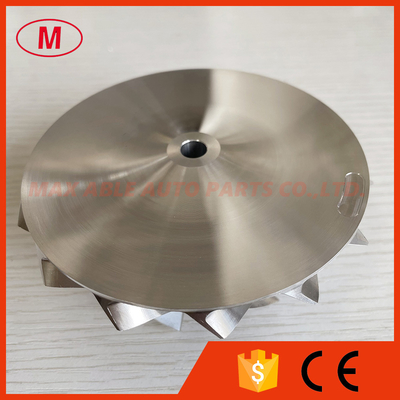

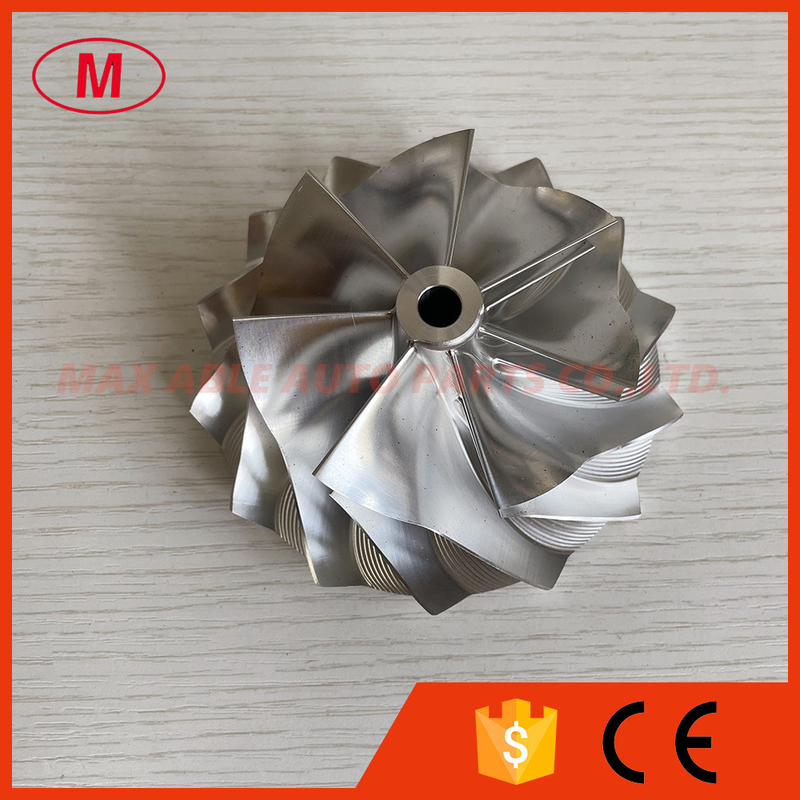

1.Model:TD08 Forward
3.Size:
Nose diamter:16.00mm
inducer:76.00mm
Exduder:101.00mm
Tapered tip exducer:108.38mm
Tip height:7.89mm
Superback:2.95mm
Overall height:42.50mm
bore size :7.95mm
bore type:through
Trailing angle:45 degree
Cutback:0.00mm
Blade height:37.50mm
SP height angle:-9.80
Splitter height:22.00mm
7+7 blades
forward rotation
Tapered tip angle: 30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
