Place of Origin: | China |
Brand Name: | no |
Model Number: | TD04HL |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT,western union ,paypal |
Supply Ability: | 1000pcs |
1. MODEL:TD04HL reverse

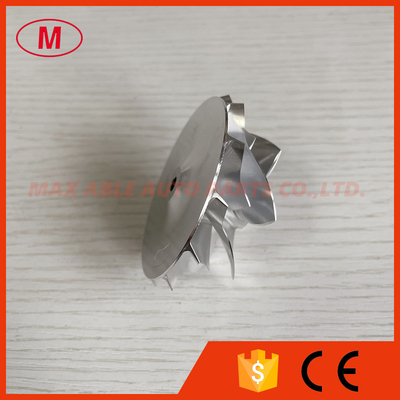

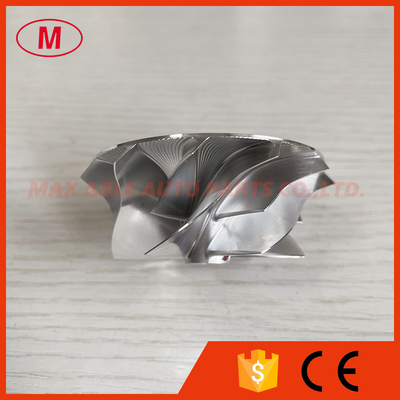

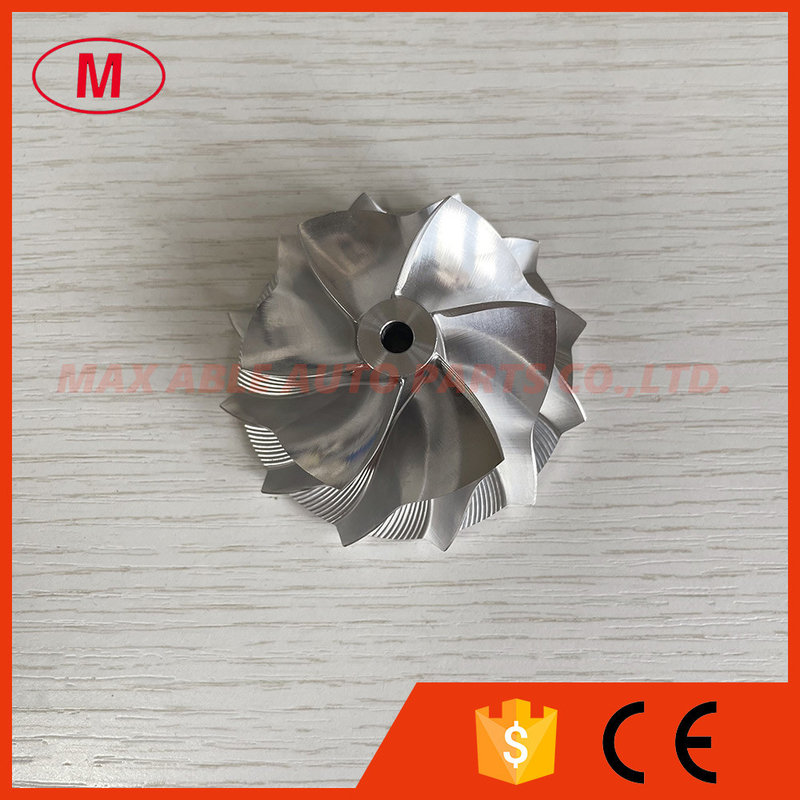

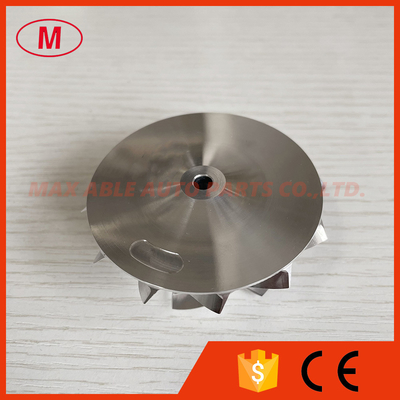

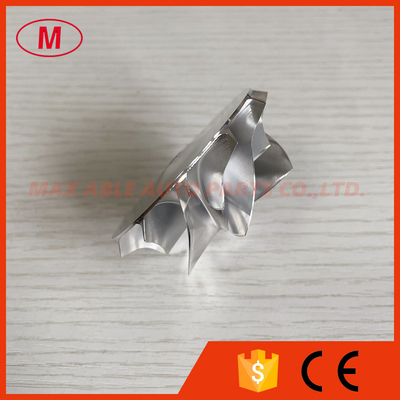

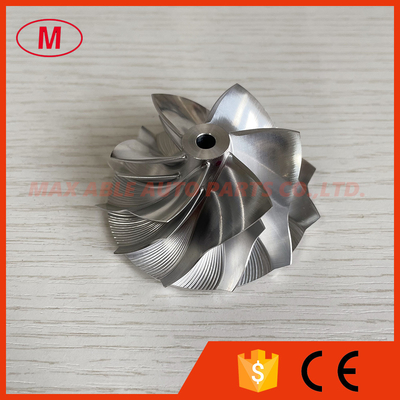

2.TD04HL reverse 6+6 blades 49.62/61.01mm LEP Style ,high performance turbocharger billet/milling/aluminum 2618 compressor wheel
3.Size
Nose diamter:12.46mm
inducer:49.62mm
Exduder:61.01mm
Tapered tip exducer:66.61mm
Tip height:5.00mm
Superback:1.90mm
Overall height:27.20mm
bore size :5.00mm
bore type:through
Trailing Angle:55 degree
Cutback:0.0
SP height angle:0.00
Splitter height:14.70mm
Blades height:23.70mm
6+6 blades
Tapered tip Angle: 35 degree
reverse rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
