| Place of Origin: | CHINA |
| Model Number: | GTA4594 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT/western union/paypal |
| Supply Ability: | 1000 |
1. MODEL:GTA4594 Forward

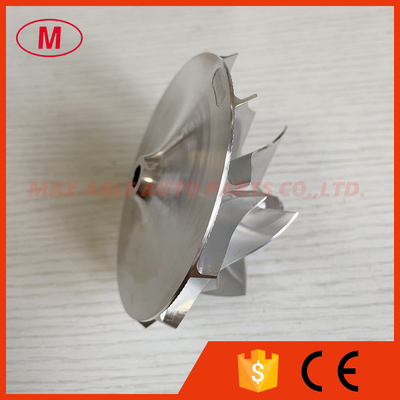

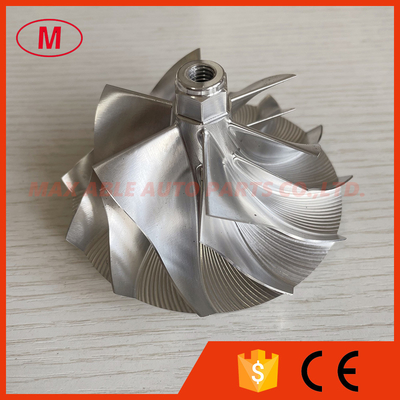

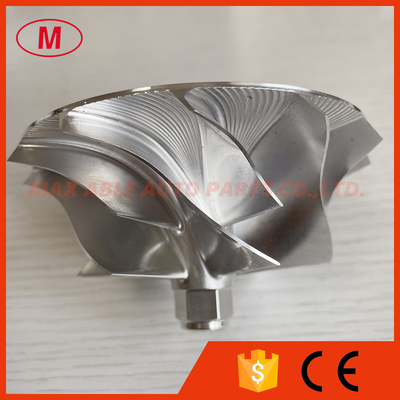

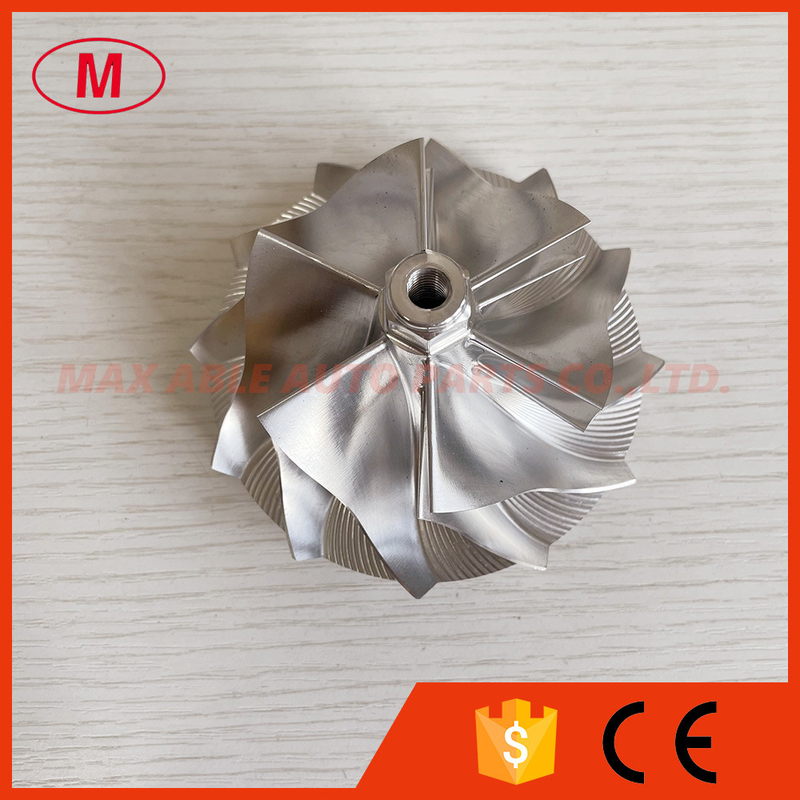

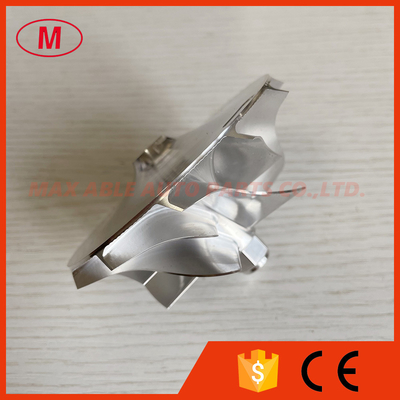

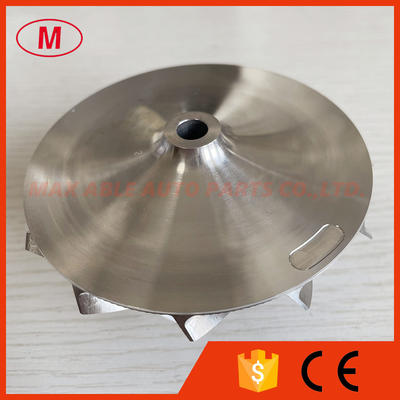

2.GTA4594 70.30/94.00mm 6+6 blades 434335-0017 high performance Turbo Billet/milling/aluminum 2618 compressor wheel for C-A-T C-12 EURO 2 12.0L 702335-0001
3.Size:
Nose diameter:17.00mm
Inducer:70.30mm
Exducer:94.00mm
Tapered tip exducer:100.49mm
Tip height:6.63mm
super back:9.51mm
overall height:58.80mm
bore size :8.25mm
bore type:Threaded-M8x1.25LHT
Trailing angle:60 degree
Cutback:5.0mm
Splitter height:21.60mm
SP height angle:5.00
Blades height:36.00mm
6+6 blades
forward rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
4.Application:
C-A-T C-12 EURO 2 12.0L 702335-0001
5.High quality and competitive price.
6.Any questions please send email to me.
All the compressor wheels have been balanced.
