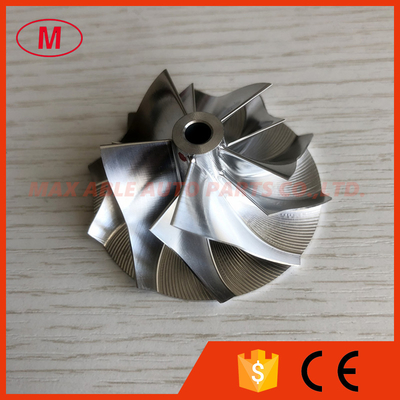

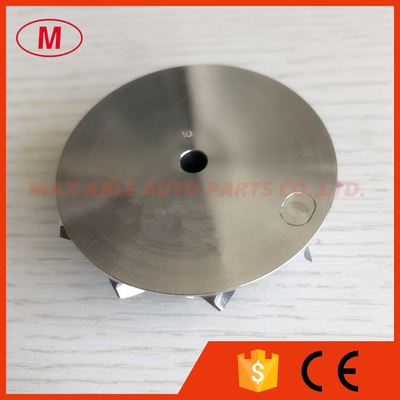

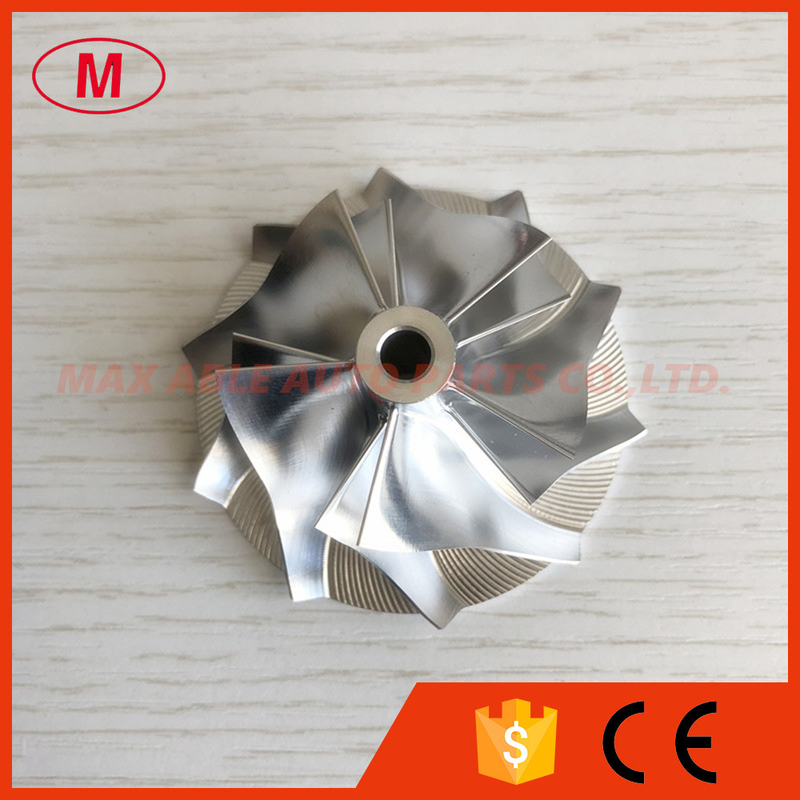

RHB5 38.50/52.50mm 5+5 blades high performance turbo Billet/milling/Aluminum 2618 compressor wheel for VJ20

China RHB5 38.50/52.50mm 5+5 blades high performance turbo Billet/milling/Aluminum 2618 compressor wheel for VJ20 supplier
RHB5 38.50/52.50mm 5+5 blades high performance turbo Billet/milling/Aluminum 2618 compressor wheel for VJ20 supplier RHB5 38.50/52.50mm 5+5 blades high performance turbo Billet/milling/Aluminum 2618 compressor wheel for VJ20 supplier RHB5 38.50/52.50mm 5+5 blades high performance turbo Billet/milling/Aluminum 2618 compressor wheel for VJ20 supplier RHB5 38.50/52.50mm 5+5 blades high performance turbo Billet/milling/Aluminum 2618 compressor wheel for VJ20 supplier

Large Image :  RHB5 38.50/52.50mm 5+5 blades high performance turbo Billet/milling/Aluminum 2618 compressor wheel for VJ20

Product Details:

Brand Name: NO
Model Number: RHB5

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: neutral packing
Delivery Time: 3-7 days
Payment Terms: TT ,western union ,paypal
Supply Ability: 1000
Contact Now
Detailed Product Description
Size: 38.50/52.50mm Type: Turbochargers

1. MODEL: RHB5 forward​
2.RHB5 38.50/52.50mm 5+5 blades high performance turbo Billet/milling/Aluminum 2618 compressor wheel for VJ20
3.Size:
Nose diameter:10.00mm
Inducer:38.50mm
exducer:52.50mm
Tapered tip exducer:56.02mm
Tip height:4.05mm
Superback:0.00mm
bore size :5.10mm
Overall height:22.60mm
Cutback:0.0
Trailing Angle:60
Blade height:21.42mm
5+5 blades forward
It is for OE compressor housing
Tapered tip Angle:30 degree


4.High quality and competitive price.
5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
