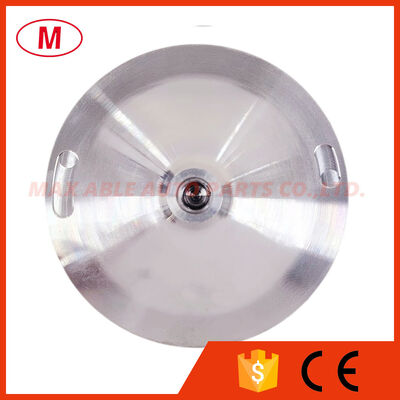

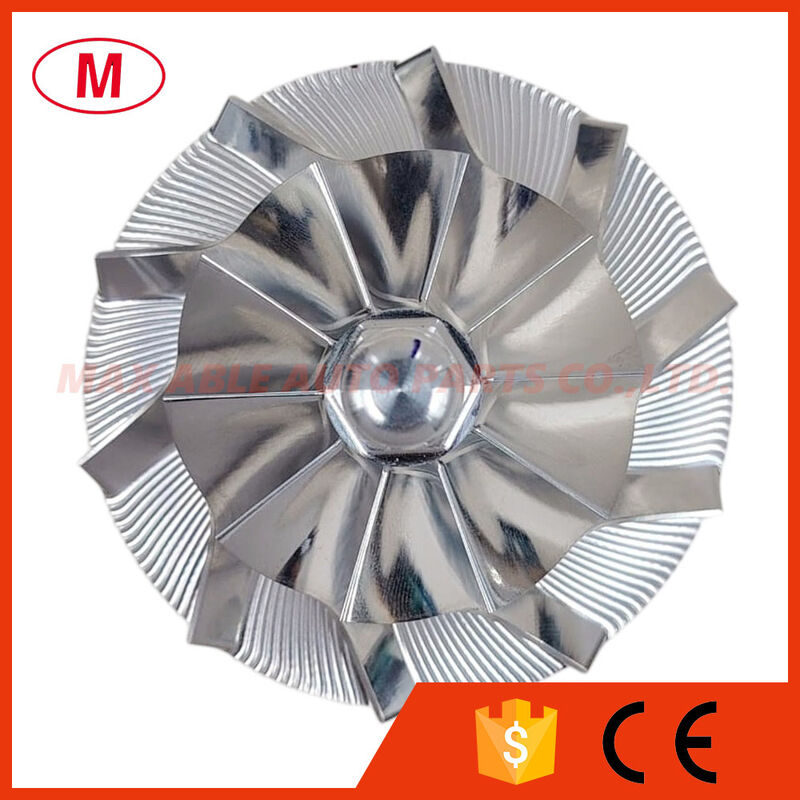

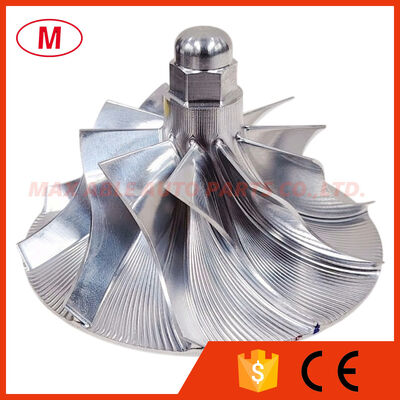

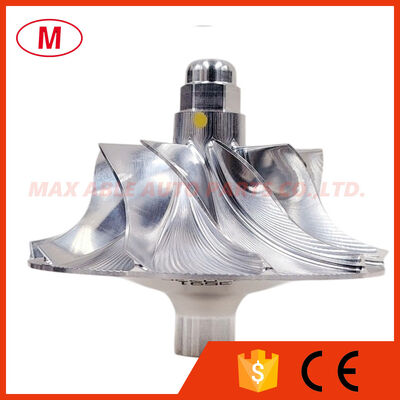

GTB3576 50.48/77.20mm 10+0 blades Turbo milling/aluminum 2618/billet compressor wheel for 17201-E0734/E7031 Engine:J07E ranger

GTB3576 50.48/77.20mm 10+0 blades Turbo milling/aluminum 2618/billet compressor wheel for 17201-E0734/E7031 Engine:J07E ranger

    • GTB3576 50.48/77.20mm 10+0 blades Turbo milling/aluminum 2618/billet compressor wheel for 17201-E0734/E7031 Engine:J07E ranger
    • GTB3576 50.48/77.20mm 10+0 blades Turbo milling/aluminum 2618/billet compressor wheel for 17201-E0734/E7031 Engine:J07E ranger
    • GTB3576 50.48/77.20mm 10+0 blades Turbo milling/aluminum 2618/billet compressor wheel for 17201-E0734/E7031 Engine:J07E ranger
    • GTB3576 50.48/77.20mm 10+0 blades Turbo milling/aluminum 2618/billet compressor wheel for 17201-E0734/E7031 Engine:J07E ranger
    • GTB3576 50.48/77.20mm 10+0 blades Turbo milling/aluminum 2618/billet compressor wheel for 17201-E0734/E7031 Engine:J07E ranger

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: GTB3576

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, ,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description

    1. MODEL:GTB3576 forward
    2.GTB3576 50.48/77.20mm 10+0 blades Turbo milling/aluminum 2618/billet compressor wheel for 17201-E0734/E7031 Engine:J07E ranger
    3.Size:
    Nose diameter:16.05mm
    Inducer:50.48mm
    exducer:77.20mm
    Tapered tip exducer:78.41mm
    Tip height:4.90mm
    Superback:18.80mm
    bore size :8.27mm
    bore type:Boreless-M8x1.0LHT
    Overall height:64.88mm
    Cutback:0.0mm
    Trailing Angle:45 degree
    Sp height angle:0.00
    Splitter height:0.00mm
    Blades height:26.55mm
    10+0 blades forward
    Fit for OE compressor housing
    Tapered tip Angle:17 degree
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced.
