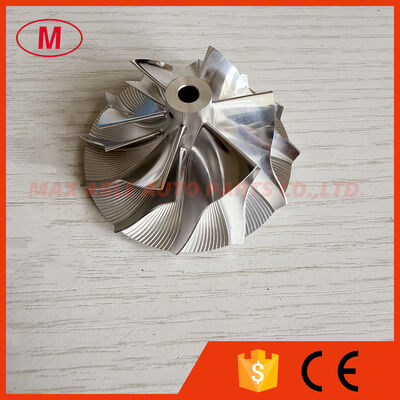

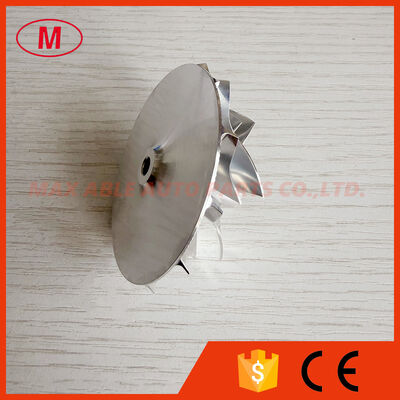

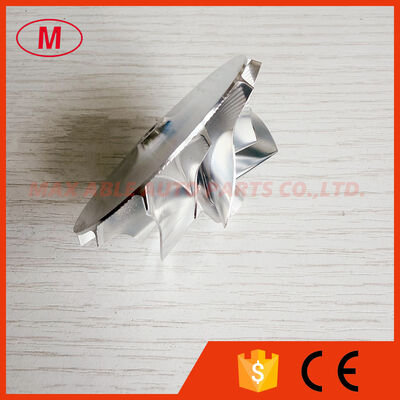

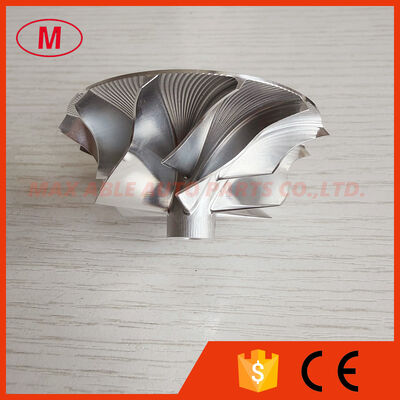

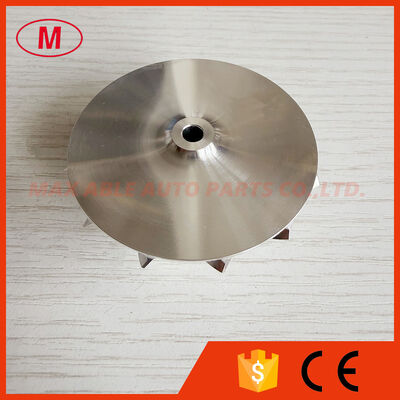

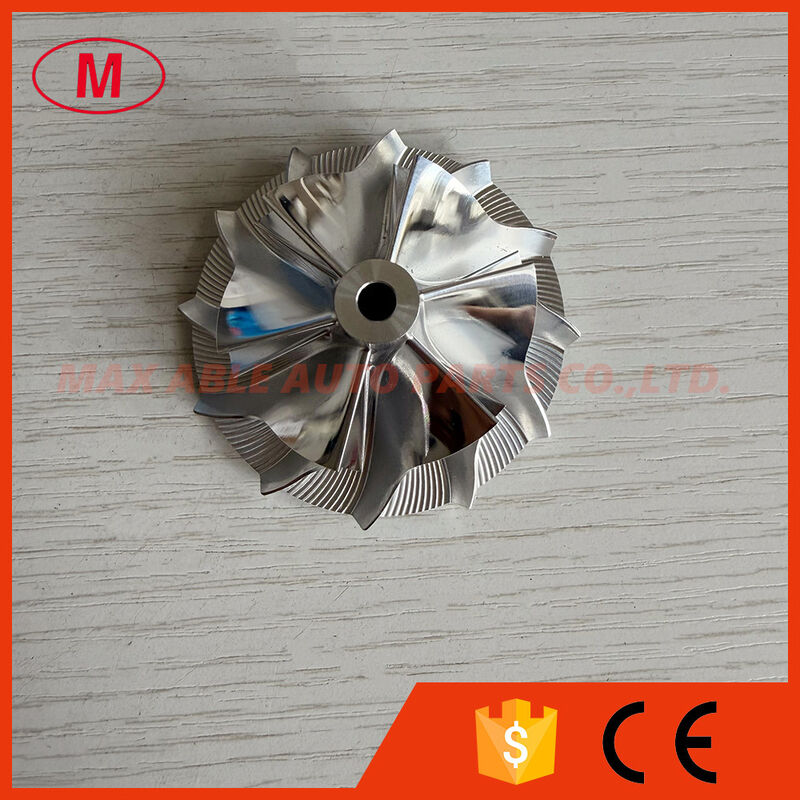

K04 reverse 5306-123-2035 41.65/56.08mm 6+6 blades high performance turbocharger milling/aluminum 2618 /billet compressor wheel

K04 reverse 5306-123-2035 41.65/56.08mm 6+6 blades high performance turbocharger milling/aluminum 2618 /billet compressor wheel

    • K04 reverse 5306-123-2035 41.65/56.08mm 6+6 blades high performance turbocharger milling/aluminum 2618 /billet compressor wheel
    • K04 reverse 5306-123-2035 41.65/56.08mm 6+6 blades high performance turbocharger milling/aluminum 2618 /billet compressor wheel
    • K04 reverse 5306-123-2035 41.65/56.08mm 6+6 blades high performance turbocharger milling/aluminum 2618 /billet compressor wheel
    • K04 reverse 5306-123-2035 41.65/56.08mm 6+6 blades high performance turbocharger milling/aluminum 2618 /billet compressor wheel
    • K04 reverse 5306-123-2035 41.65/56.08mm 6+6 blades high performance turbocharger milling/aluminum 2618 /billet compressor wheel
    • K04 reverse 5306-123-2035 41.65/56.08mm 6+6 blades high performance turbocharger milling/aluminum 2618 /billet compressor wheel
    • K04 reverse 5306-123-2035 41.65/56.08mm 6+6 blades high performance turbocharger milling/aluminum 2618 /billet compressor wheel

    Product Details:

    Place of Origin: CHINA
    Brand Name: NO
    Model Number: K04

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT/western union/paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description

    1.Model:k04 reverse


    2.K04 reverse 5306-123-2035 41.65/56.08mm 6+6 blades high performance turbocharger milling/aluminum 2618 /billet compressor wheel

    3.Size:
    Nose diameter:10.30mm
    Inducer:41.65mm
    Exducer:56.08mm
    Tapered tip exducer:59.25mm
    Tip height:3.74mm
    Superback:2.60mm
    Overall height:27.70mm
    Bore size:4.61mm
    Trailing angle:60 degree
    Bore Type:Through
    Cutback:2.50mm
    SP Height angle:-3.00
    Blade height:23.30mm
    Splitter height:13.80mm
    6+6 blades
    Reverse rotation
    Tapered tip angle:30 degree
    It is for OE compressor housing.

    4.High quality ,competitive price and good service.

    5.We can also produce as your requirement.
    All the compressor wheels have been balanced.

    6.If you want more details, please send email to me or talk to me online.
    We will try our best to meet your needs.



    Wechat/Whatsapp:+86-18018657719

    K04 reverse 5306-123-2035 41.65/56.08mm 6+6 blades high performance turbocharger milling/aluminum 2618 /billet compressor wheel

    K04 reverse 5306-123-2035 41.65/56.08mm 6+6 blades high performance turbocharger milling/aluminum 2618 /billet compressor wheelK04 reverse 5306-123-2035 41.65/56.08mm 6+6 blades high performance turbocharger milling/aluminum 2618 /billet compressor wheelK04 reverse 5306-123-2035 41.65/56.08mm 6+6 blades high performance turbocharger milling/aluminum 2618 /billet compressor wheelK04 reverse 5306-123-2035 41.65/56.08mm 6+6 blades high performance turbocharger milling/aluminum 2618 /billet compressor wheelK04 reverse 5306-123-2035 41.65/56.08mm 6+6 blades high performance turbocharger milling/aluminum 2618 /billet compressor wheelK04 reverse 5306-123-2035 41.65/56.08mm 6+6 blades high performance turbocharger milling/aluminum 2618 /billet compressor wheel
