Brand Name: | NO |
Model Number: | HX35 |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000pcs |
1. MODEL:HX35 Forward

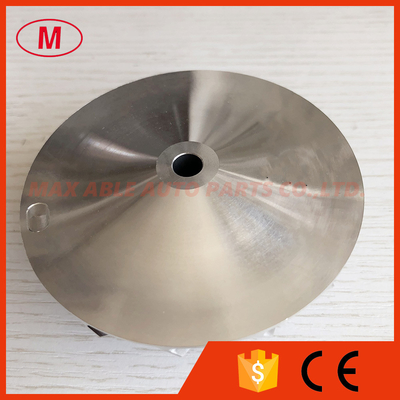

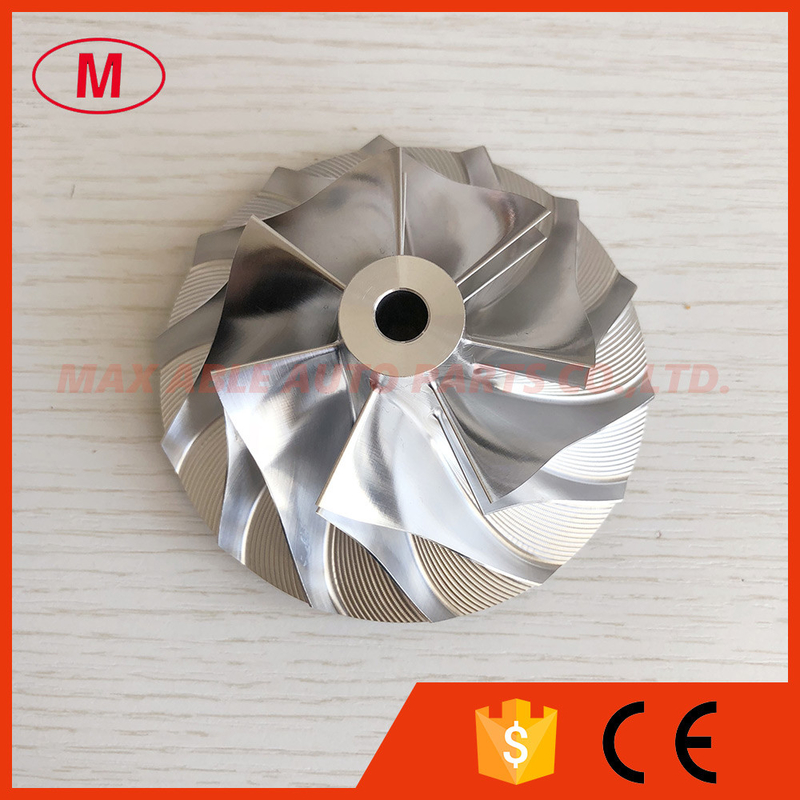

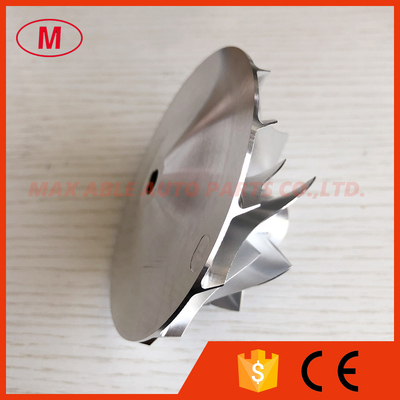

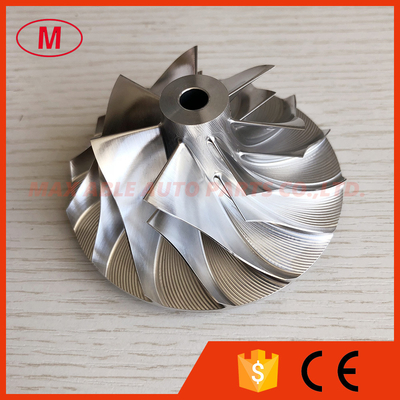

2. HX35 3537168 53.88/81.30 mm 7+7 blades turbo billet/milling/aluminum 2618 compressor wheel for K-OMATS-U/6BT/6BTA 3539699/3539698/3539700/3590032/6735-81-8021/6735-81-8301/6735-81-8041 /3804877
3.Size:
Nose Diameter:16.95mm
inducer:53.88mm
Exducer:81.30mm
Tip height:5.78mm
OE exducer:81.94mm
Superback:5.01mm
Overall height:39.50mm
Bore size:7.00mm
Trailing Angle:55
SP height angle:-8.20
Splitter height:18.55
Blade height:28.66mm
7+7 BLADES
FIT for OE compressor housing
Tapered tip angle:0 degree
Application:
3539699
3539698
3539700
3590032
6735-81-8021
6735-81-8301
6735-81-8041
3804877
4.High quality and competitive price.
5.Any questions please send email to me.
