Max Able Auto Parts Co.,Ltd.
Customer Satisfy is the eternal pursue of corporation.
Customer Satisfy is the eternal pursue of corporation.
 |
| Brand Name: | NO |
| Model Number: | HX30 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
|
1. MODEL:HX30 forward

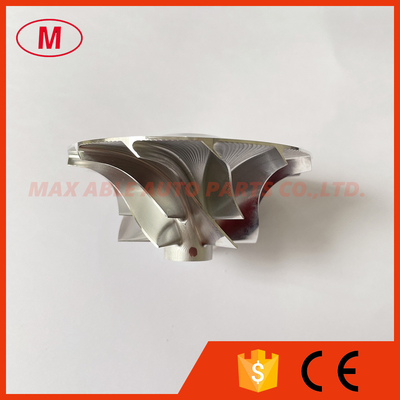

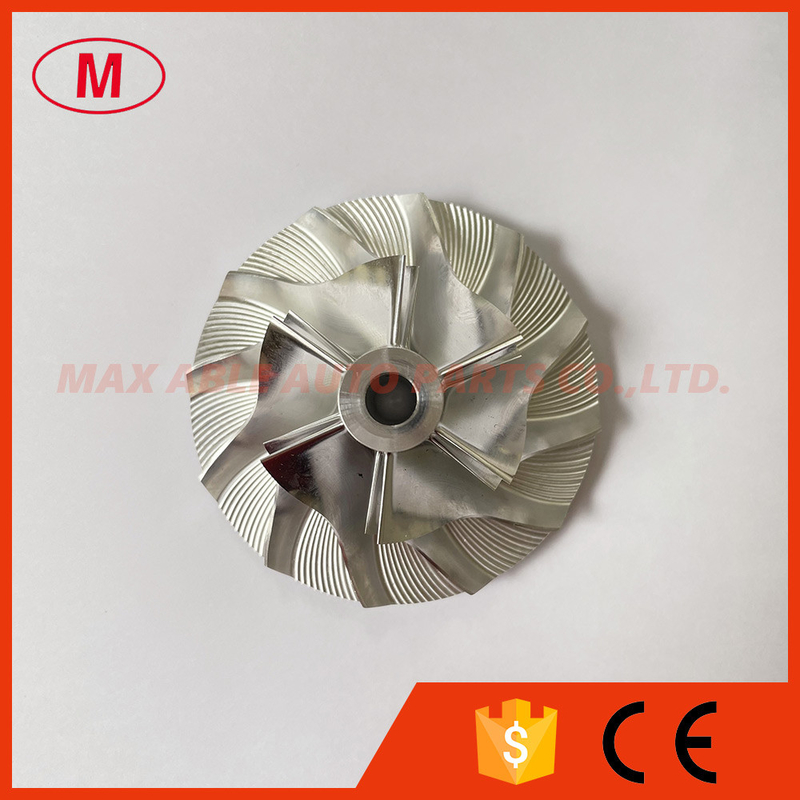

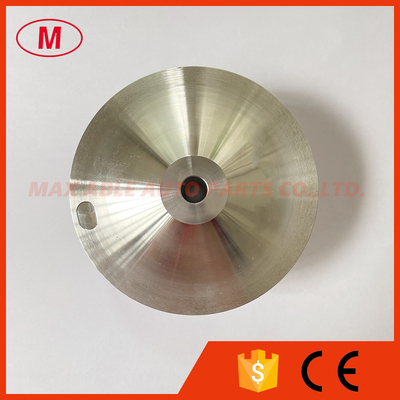

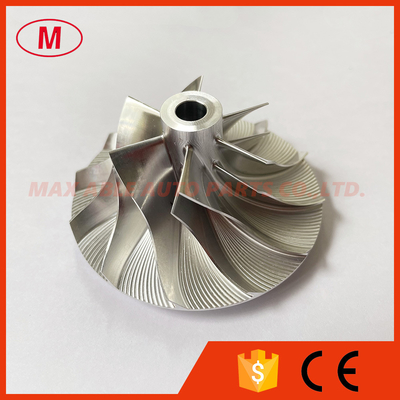

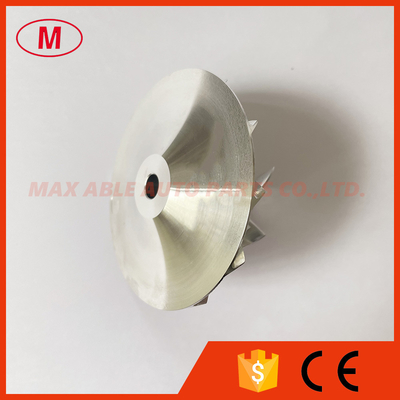

2.HX30 3599693 6732-81-8062 40.10/67.97mm 6+6 blades Billet/milling/aluminum 2618 compressor wheel for Komatsu /ELITE /4BTA 3802908/3592110/3592111/3592112
3.Size:
Nose diameter:14.10mm
Inducer:40.10mm
exducer:67.97mm
Tip height:4.40mm
Superback:5.01mm
bore size :7.00mm
bore type:through
Overall height:34.73mm
Cutback:0.0
Trailing Angle:45 degree
Blade height:25.08mm
Splitter height:17.60mm
Sp height angle:2.50
6+6 blades forward
Fit for OE compressor housing
Tapered tip Angle:0 degree
Application:
3802908
3592110
3592111
3592112
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
Skype: maxabledieselparts Wechat/Whatsapp:+86-18018657719
|
