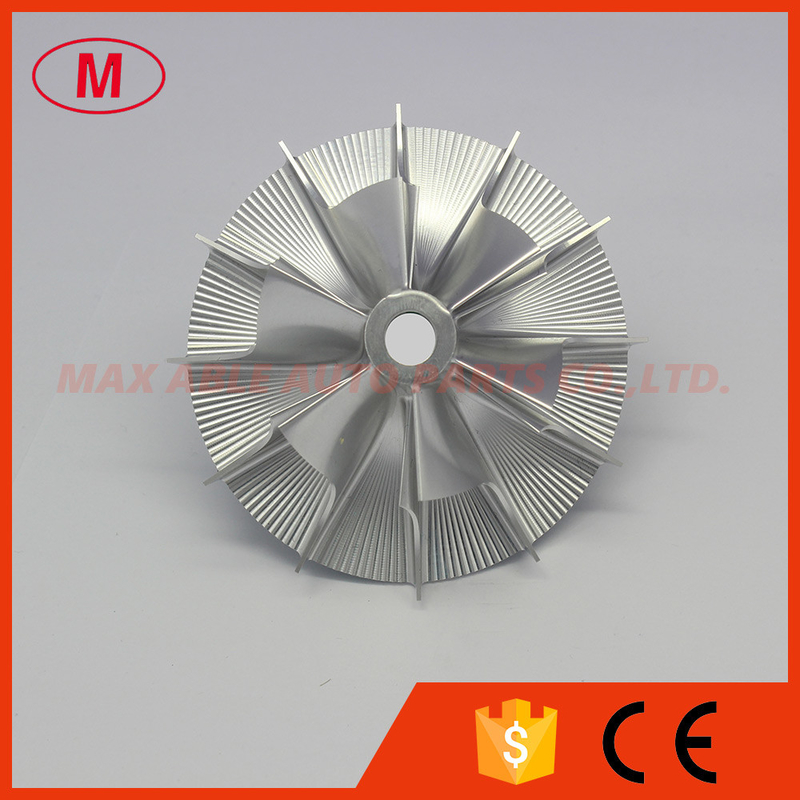

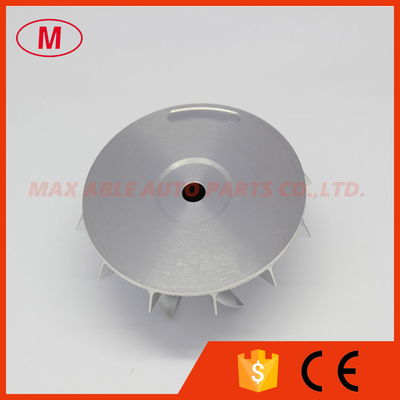

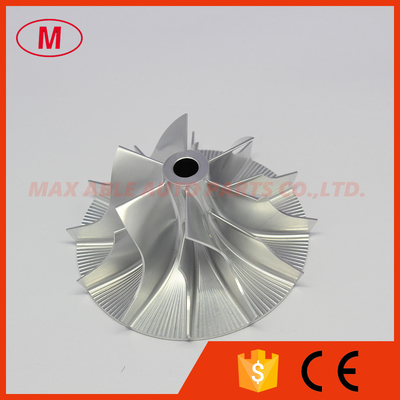

K23/3LD/KKK 3LDZ 5223-123-2003 50.40/76.10mm 6+6 blades high performance milling/aluminum 2618/billet compressor wheel

K23/3LD/KKK 3LDZ 5223-123-2003 50.40/76.10mm 6+6 blades high performance milling/aluminum 2618/billet compressor wheel

    • K23/3LD/KKK 3LDZ 5223-123-2003 50.40/76.10mm 6+6 blades high performance milling/aluminum 2618/billet compressor wheel
    • K23/3LD/KKK 3LDZ 5223-123-2003 50.40/76.10mm 6+6 blades high performance milling/aluminum 2618/billet compressor wheel
    • K23/3LD/KKK 3LDZ 5223-123-2003 50.40/76.10mm 6+6 blades high performance milling/aluminum 2618/billet compressor wheel
    • K23/3LD/KKK 3LDZ 5223-123-2003 50.40/76.10mm 6+6 blades high performance milling/aluminum 2618/billet compressor wheel

    Product Details:

    Brand Name: NO
    Model Number: k23/3LD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1. MODEL:K23/3LD/KKK 3LDZ forward
    2.K23/3LD/KKK 3LDZ 5223-123-2003 50.40/76.10mm 6+6 blades high performance Billet/milling/aluminum 2618 compressor wheel for Man,Porsche,Saurer 5222-988-3100/5223-988-2811/2812/2813/2814/2816/2830/2831/2832/2834/2840/2841/3112/3170/3179/5222-970-2802
    3.Size:
    Nose diameter:14.64mm
    Inducer:50.40mm
    exducer:76.10mm
    Tapered tip exducer:82.40mm
    Tip height:6.46mm
    Superback:-0.60mm
    bore size :7.94mm
    bore type:through
    Overall height:29.41mm
    Cutback:0.0
    Trailing Agnle:90 degree
    Blades height:27.45mm
    SP height angle:0.00
    Splitter Height:15.70mm
    6+6 blades
    forward
    FIT for OE compressor housing
    Tapered tip Angle:30 degree
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced.
