S200-EFR 1276-123-2006 57.15/76.23mm 7+7 blades high performance Billet/milling compressor wheel for 179315/179390/1793

Product Details:

Brand Name:	NO
Model Number:	S200

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Packaging Details:	neutral packing
Delivery Time:	3-7 days
Payment Terms:	TT ,western union ,paypal
Supply Ability:	1000pcs

Contact Now

Detailed Product Description

Size:	57.15/76.23mm	Type:	Turbochargers

1. MODEL:S200-EFR forward

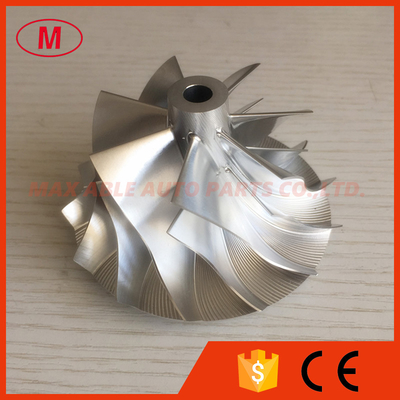

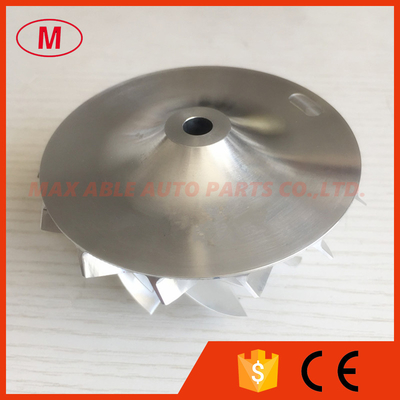

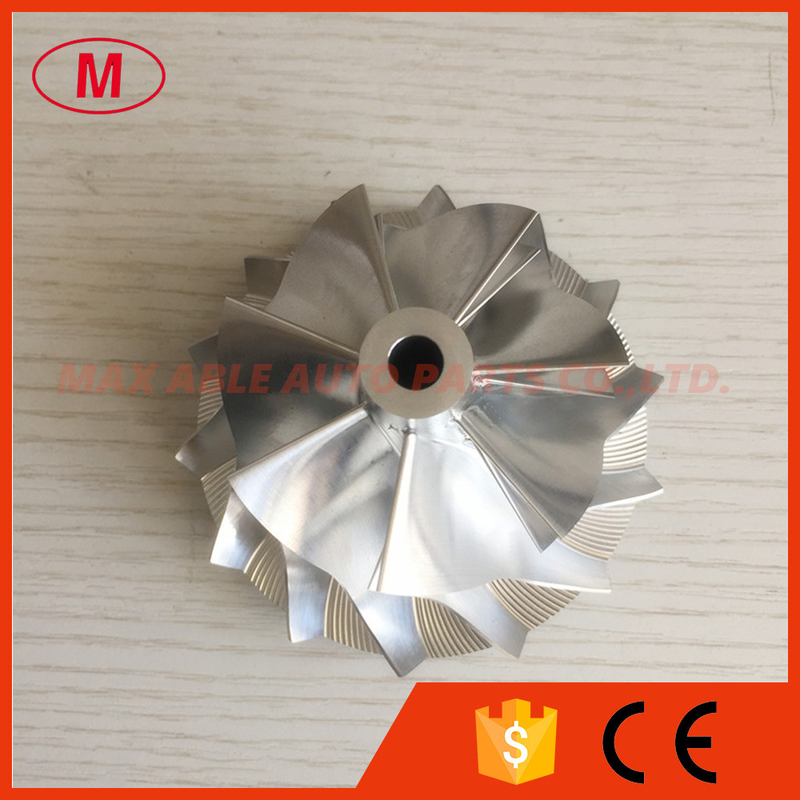

2.S200-EFR 1276-123-2006 57.15/76.23mm 7+7 blades high performance Turbo Billet/milling/aluminum 2024 compressor wheel for 179315/179390/179392 EFR7670 engine

3.Size:

Nose diameter:14.90mm

Inducer:57.15mm

exducer:76.23mm

Tapered tip exducer:81.70mm

Tip height:5.73mm

Superback:6.42mm

bore size :7.00mm

Overall height:48.00mm

Trailing Angle:45

Cutback:0.0

Tapered tip Angle:30 degree

Blade height:35.13mm

7+7 blades forward

Fit for OE compressor housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.

Contact Details

Max Able Auto Parts Co.,Ltd.

Contact Person: Mr. David

Tel: 86-21-61119327

Fax: 86-21-61119327
