| Brand Name: | NO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:GT15-25 forward

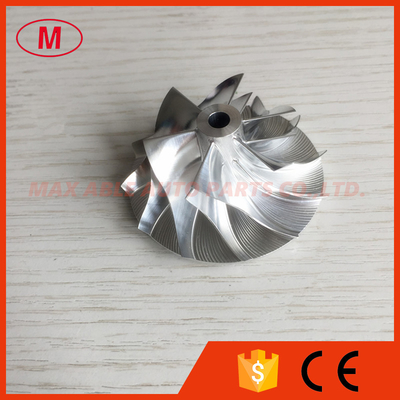

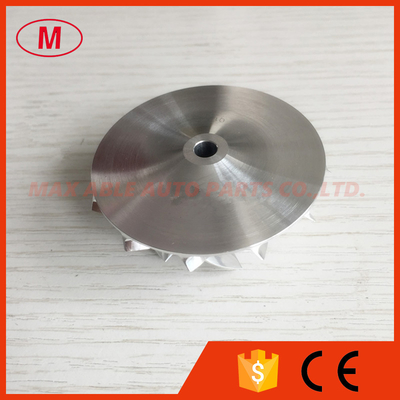

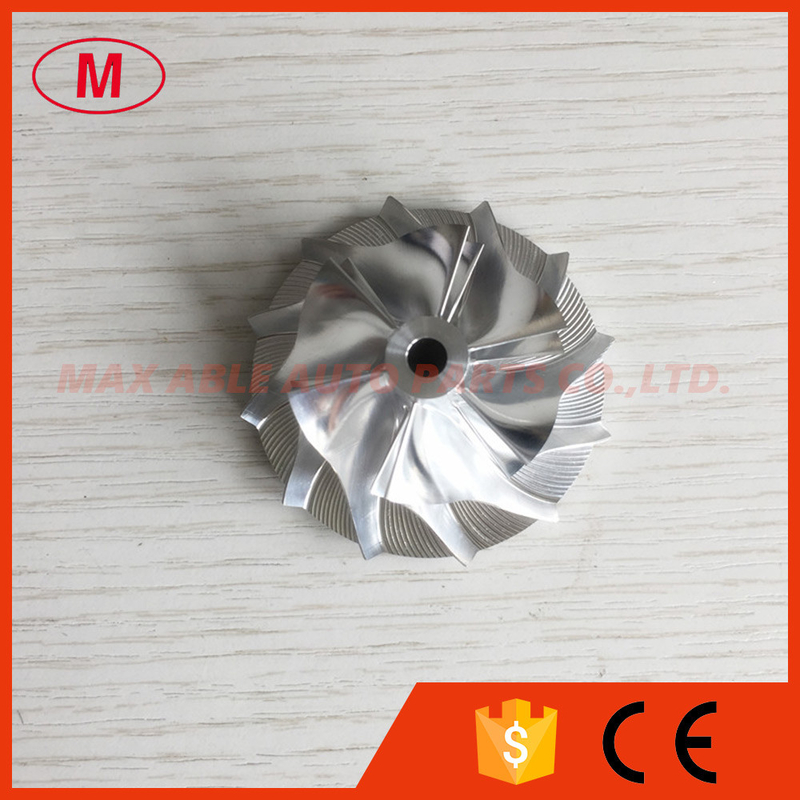

2.GT15-25 436131-0019 36.78/52.19mm 6+6 blades high performance billet/milling/aluminum 2618 compressor wheel for 709836/727461/709835
3.Size:
Nose diameter:10.60mm
inducer:36.78mm
Exduder:52.19mm
Tapered tip exducer:55.49mm
Tip height:3.86mm
Superback:2.39mm
Overall height:24.67mm
bore size :5.08mm
bore type:through
Trailing Angle:60 degree
Cutback:0.0
Blades height:20.35mm
Splitter height:14.45mm
Sp height angle:-5.00
6+6 blades
Forward rotation
Tapered tip Angle: 30 degree
Fit for OE compressor housing
Application:
709836
727461
709835
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
