Brand Name: | NO |
Model Number: | K16 |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000pcs |
1. MODEL:K16 forward

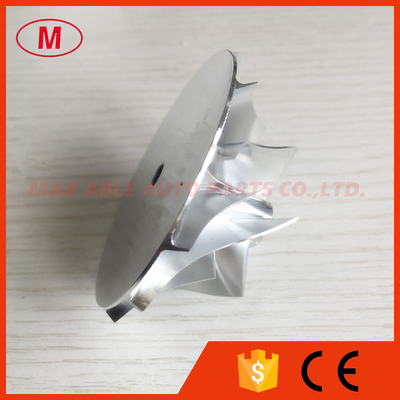

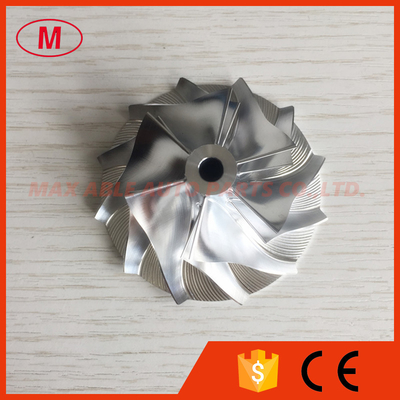

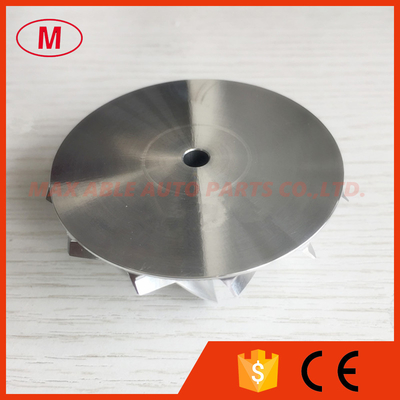

2.K16 5324-123-2006 40.50/60.50mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel for 5316-988-6735/6736/6726/6727
3.Size:
Nose diameter:11.83mm
inducer:40.50mm
Exduder:60.50mm
Tapered tip exducer:64.18mm
Tip height:4.17mm
Superback:-0.02mm
Overall height:27.00mm
bore size :5.41mm
bore type:through
Trailing Angle:65 degree
Cutback:0.00
SP Height angle:-5.50
Splitter height:17.00
Blade height:25.09mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
Fit for OE compressor housing
Application:
5316-988-6735
5316-988-6736
5316-988-6726
5316-988-6727
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
