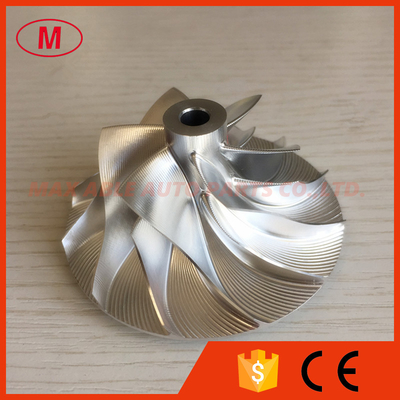

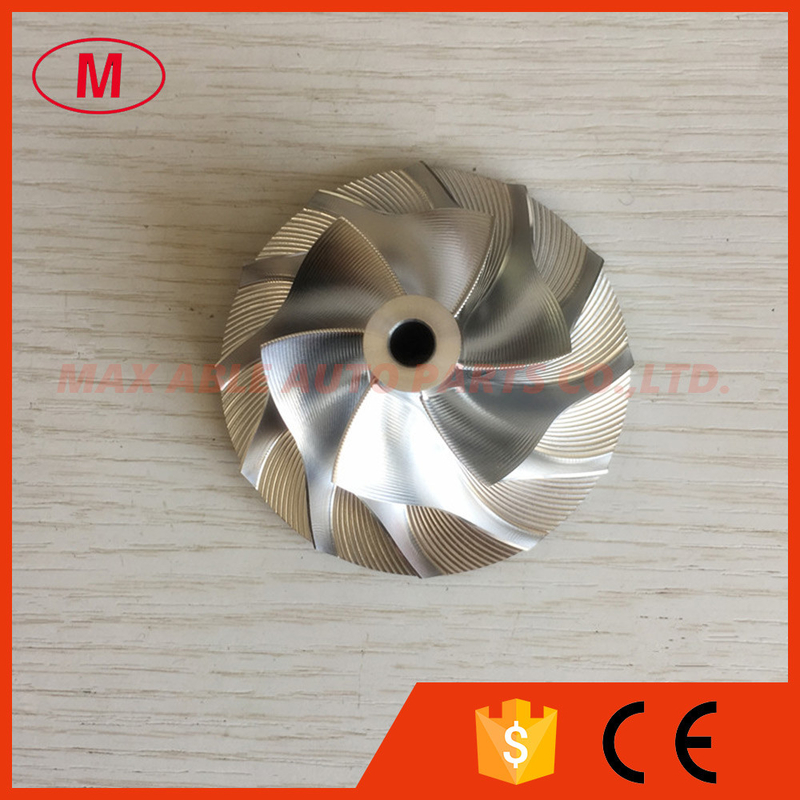

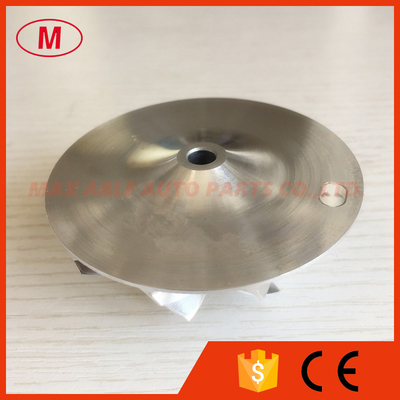

RHF55 46.52/68.01mm 6+6 blades point milling turbo Turbocharger Billet/milling/aluminum 2024 compressor wheel

Model Number:	RHF55

Contact Now

Detailed Product Description

Size:	46.52/68.01mm	Type:	Turbochargers

1. MODEL:RHF55 FORWARD

2.RHF55 46.52/68.01mm 6+6 blades point milling turbo Turbocharger Billet/milling/aluminum 2024 compressor wheel

3.Size:

Nose diameter:13.35mm

Inducer:46.52mm

exducer:68.01mm

Tip height:4.79mm

Superback:3.68mm

bore size :6.10mm

Trailing Angle:60

Cutback:3.0

SP Height Angle:5.00

Splitter Height:13.92mm

Overall height:34.00mm

Blade height:25.42 mm

6+6blades forward

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
