| Model Number: | GT3788 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 62.50/88.40mm | Type: | Turbochargers |
|---|
1. MODEL:GT3788 forward

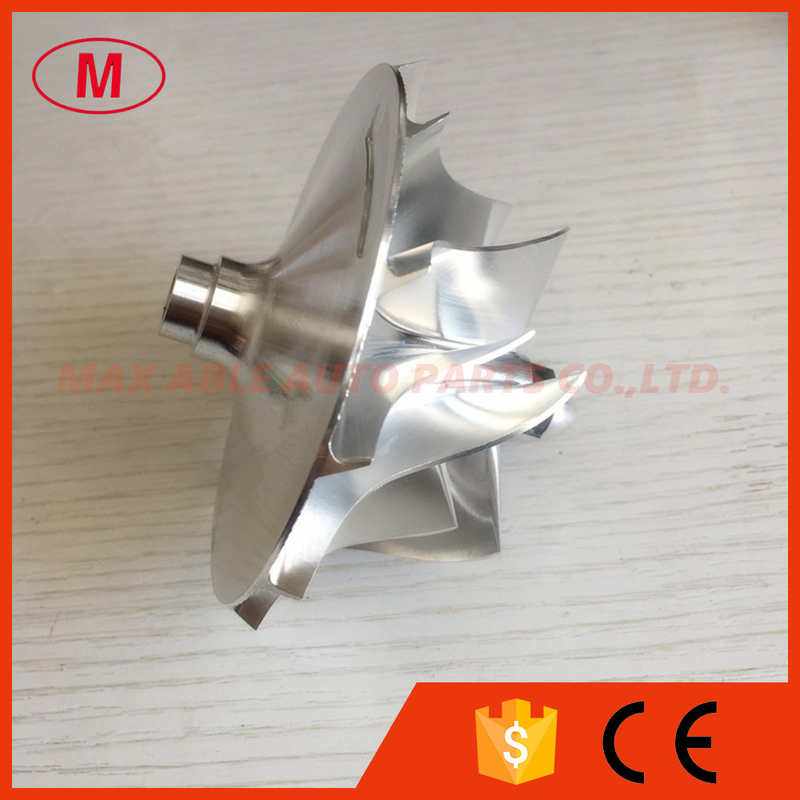

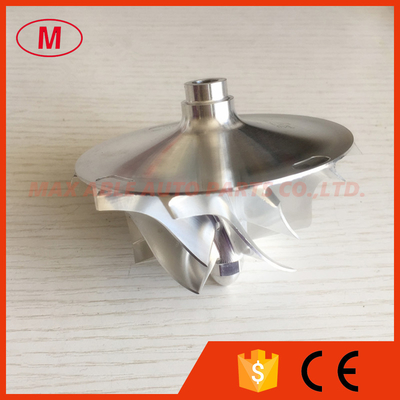

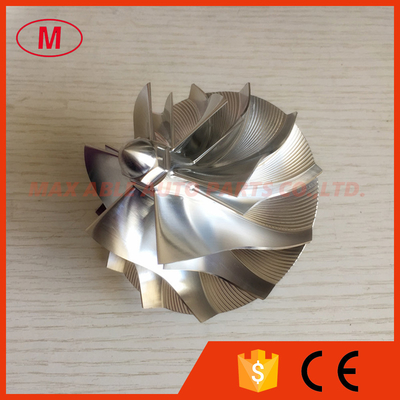

2.GT3788 62.50/88.40mm 6+6 blades 759335-0002 downsize high performance turbo Billet/aluminum 2618/milling compressor wheel for Chevy 6.6L 2007-2014 Duramax LMM & LML Upgrade
3.Size:
Nose diameter:16.07mm
inducer:62.50mm
Exduder:88.40mm
Tapered tip exducer:94.15mm
Tip height:5.98mm
Superback:20.00mm
Overall height:74.00mm
Trailing angle:45
bore size :BL
Bore type:Boreless-M8x1.0LHT
Cutback:0.0
SP height angle:-7.00
Blade height:38.07mm
Splitter height:28.00mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
