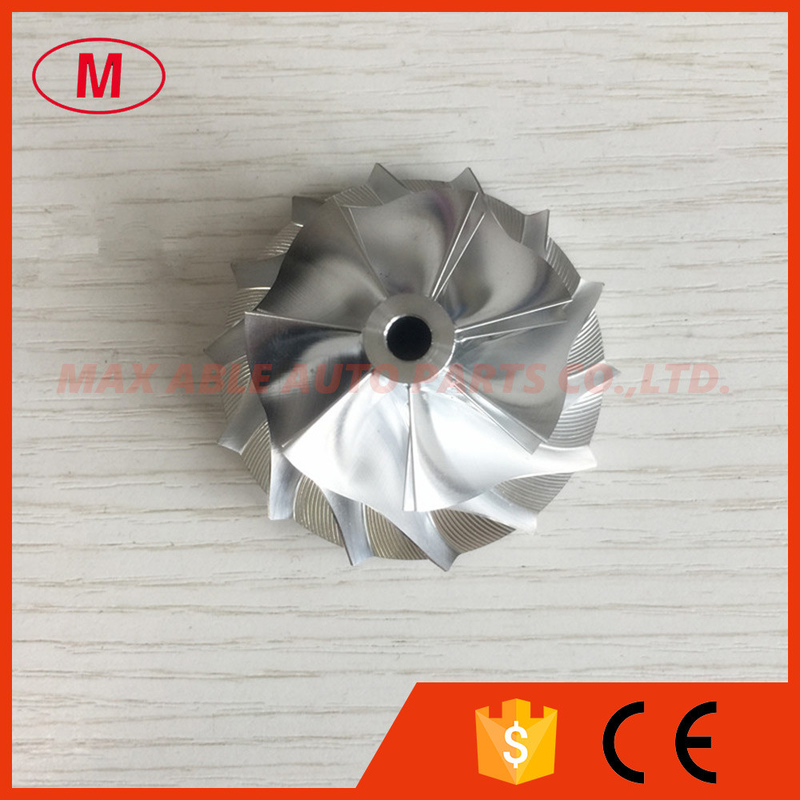

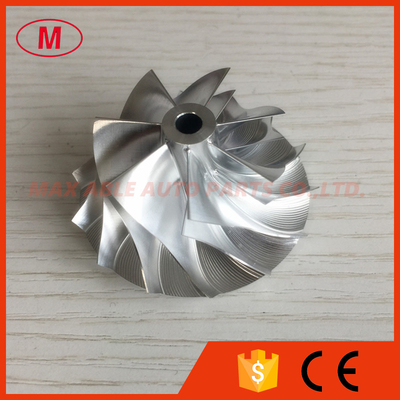

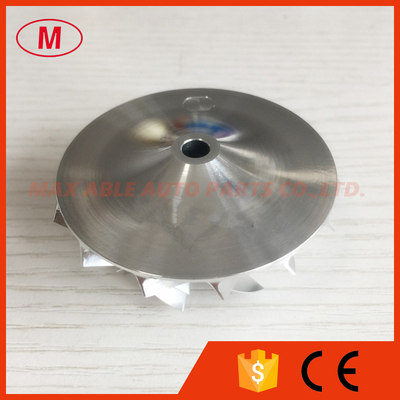

GT15-25 38.58/52.00mm 7+7 blades 784363-0002B/735475-0002 high performance turbo milling/billet compressor wheel

GT15-25 38.58/52.00mm 7+7 blades 784363-0002B/735475-0002 high performance turbo milling/billet compressor wheel

    • GT15-25 38.58/52.00mm 7+7 blades 784363-0002B/735475-0002 high performance turbo milling/billet compressor wheel
    • GT15-25 38.58/52.00mm 7+7 blades 784363-0002B/735475-0002 high performance turbo milling/billet compressor wheel
    • GT15-25 38.58/52.00mm 7+7 blades 784363-0002B/735475-0002 high performance turbo milling/billet compressor wheel
  • GT15-25 38.58/52.00mm 7+7 blades 784363-0002B/735475-0002 high performance turbo milling/billet compressor wheel

    Product Details:

    Model Number: GT15-25

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Size: 38.58/52.00mm Type: Turbochargers

    1.Model:GT15-25 forward

    2.GT15-25 38.58/52.00mm 7+7 blades 784363-0002B/735475-0002 high performance turbo billet/milling/aluminum 2618 compressor wheel for VW 760699-5004

    3.Size:

    Nose diamter:10.36mm

    inducer:38.58mm

    Exduder:52.00mm

    Tapered tip exducer:55.39mm

    Tip height:3.94mm

    Superback:3.90mm

    Overall height:27.00mm

    bore size :5.08mm

    bore type:through

    Trailing angle:60 degree

    Cutback:4.5mm

    SP Height angle:-8.50

    Blades height:21.40mm

    Splitter height:14.65mm

    7+7 blades

    Forward rotation

    Tapered tip angle:30 degree

    Fit OE compressor housing
