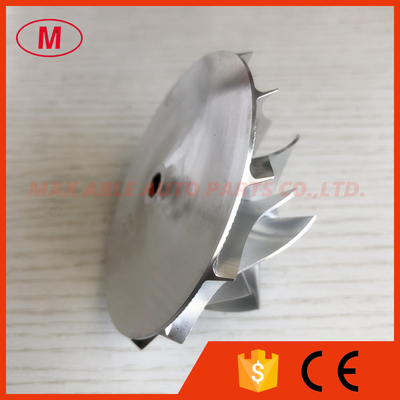

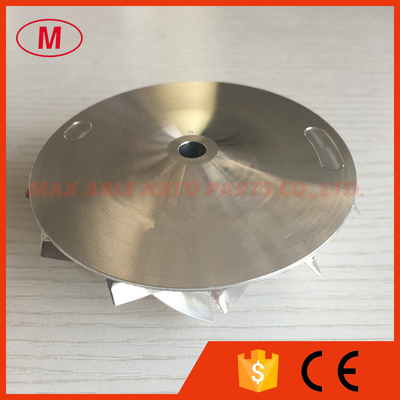

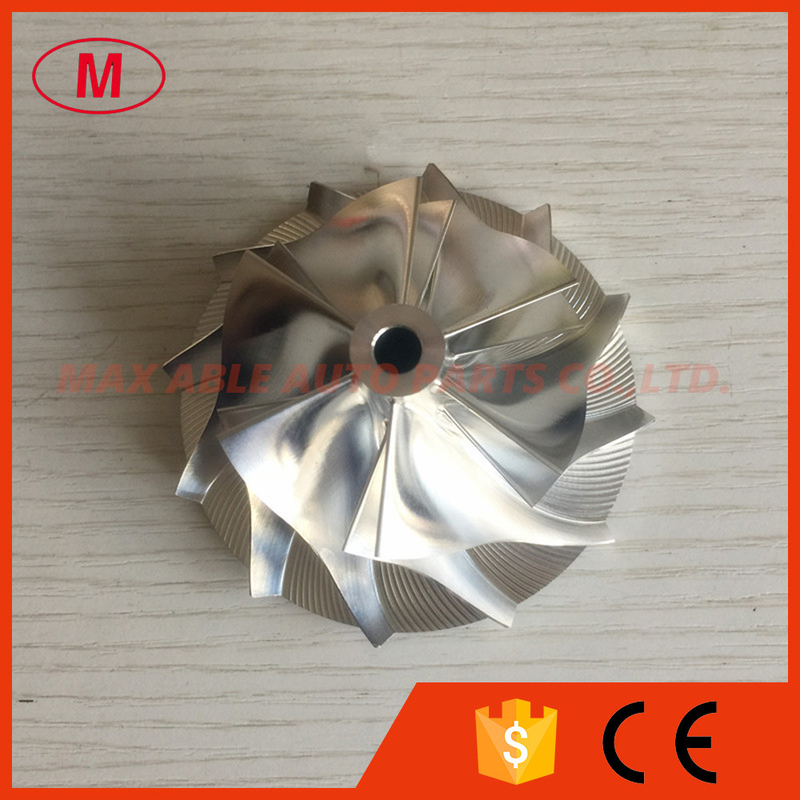

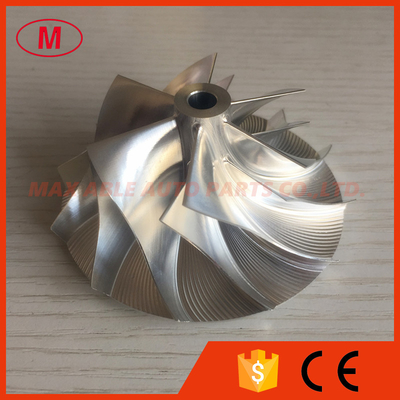

TD05H 6+6 blades 54.90/76.13mm forward high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel

TD05H 6+6 blades 54.90/76.13mm forward high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel

    • TD05H 6+6 blades 54.90/76.13mm forward high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel
    • TD05H 6+6 blades 54.90/76.13mm forward high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel
    • TD05H 6+6 blades 54.90/76.13mm forward high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel
    • TD05H 6+6 blades 54.90/76.13mm forward high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel
    • TD05H 6+6 blades 54.90/76.13mm forward high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel

    Product Details:

    Brand Name: no
    Certification: ISO
    Model Number: TD05H

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: Neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description

    1. MODEL:TD05H
    2.TD05H 6+6 blades 54.90/76.13mm forward high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel
    3.Size:
    Nose diameter:13.05mm
    Inducer:54.90mm
    exducer:76.13mm
    Tapered tip exducer:81.05mm
    Tip height:5.26mm
    Superback:2.90mm
    bore size :6.50mm
    Overall height:35.70mm
    Trailing angle:60
    Cut back:7.0
    SP height angle:-7.50
    Splitter height:21.80mm
    Blade height:30.41mm
    6+6 blades forward
    Tapered tip angle:30 degree
    It is for custom size ,please check carefully before buying.
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheel have been balanced.
