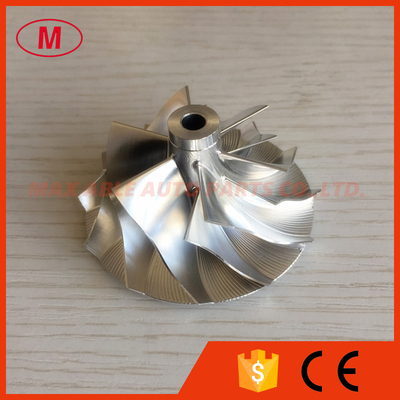

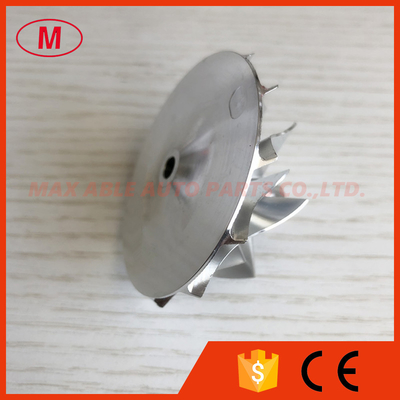

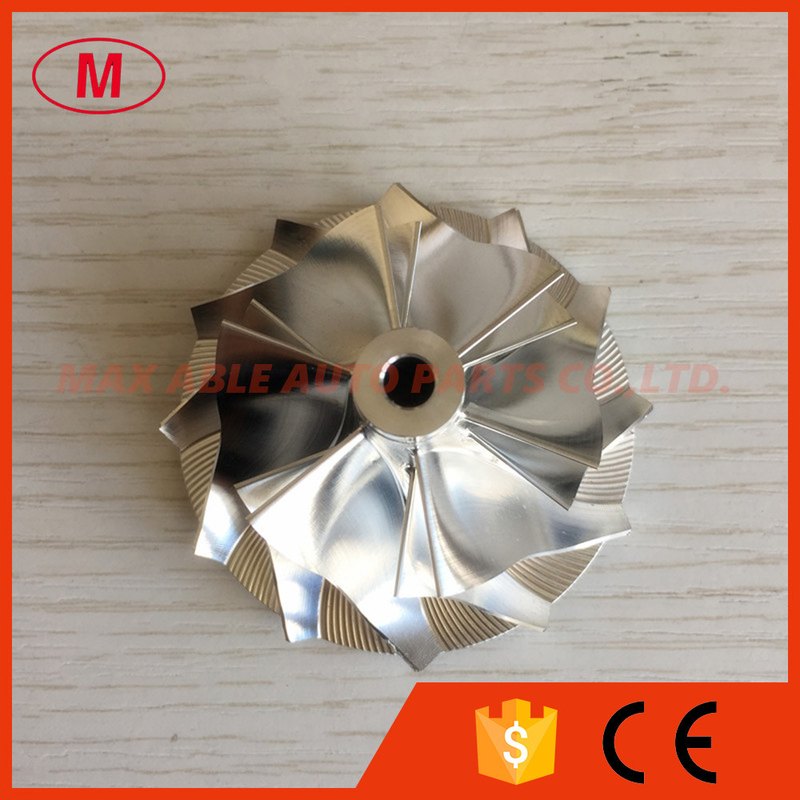

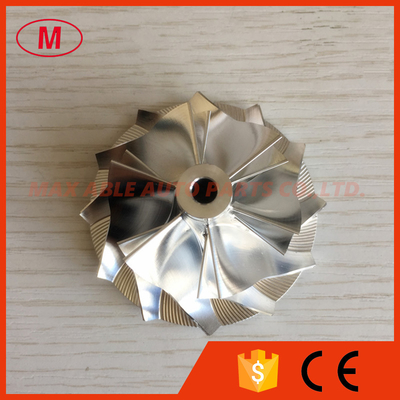

TD04HL 41.58/56.02mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel for 707114-0001 IVECO

TD04HL 41.58/56.02mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel for 707114-0001 IVECO

    • TD04HL 41.58/56.02mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel for 707114-0001 IVECO
    • TD04HL 41.58/56.02mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel for 707114-0001 IVECO
    • TD04HL 41.58/56.02mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel for 707114-0001 IVECO
    • TD04HL 41.58/56.02mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel for 707114-0001 IVECO
    • TD04HL 41.58/56.02mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel for 707114-0001 IVECO

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: TD04HL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Size: 41.58/56.02mm Type: Turbochargers

    1. MODEL:TD04HL Forward
    2.TD04HL 41.58/56.02mm 6+6 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel for 707114-0001 I-VECO
    3.Size:
    Nose diameter:11.38mm
    Inducer:41.58mm
    exducer:56.02mm
    Tapered tip exducer:59.36mm
    Tip height:3.89mm
    Superback:2.39mm
    bore size :5.00mm
    bore type:through
    Overall height:29.20mm
    Trailing angle:65 degree
    Cutback:0.0
    Blades height:20.17mm
    Splitter height:13.45mm
    Sp height angle:-6.00
    6+6 blades
    forward rotation
    Tapered tip angle:30 degree
    It is custom size ,please check carefully before buying.
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheel have been balanced.

    Skype: maxabledieselparts

    Wechat/Whatsapp:+86-18018657719

    TD04HL 41.58/56.02mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel for 707114-0001 IVECOTD04HL 41.58/56.02mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel for 707114-0001 IVECOTD04HL 41.58/56.02mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel for 707114-0001 IVECOTD04HL 41.58/56.02mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel for 707114-0001 IVECO
