Customer Satisfy is the eternal pursue of corporation.
Brand Name: | NO |
Certification: | ISO |
Model Number: | GT3782VAS |
Minimum Order Quantity: | 1PC |
---|---|
Price: | DISCUSS |
Packaging Details: | neutral packing |
Delivery Time: | 3-7 DAYS |
Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
Supply Ability: | 1000PCS |

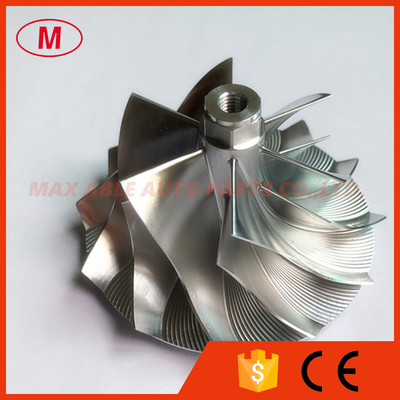

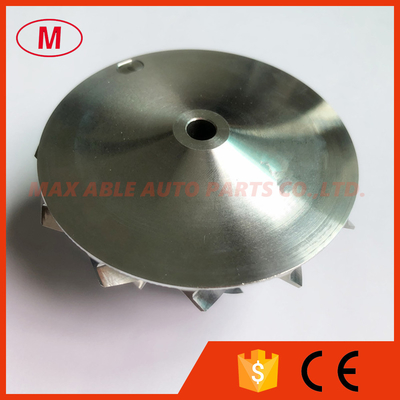

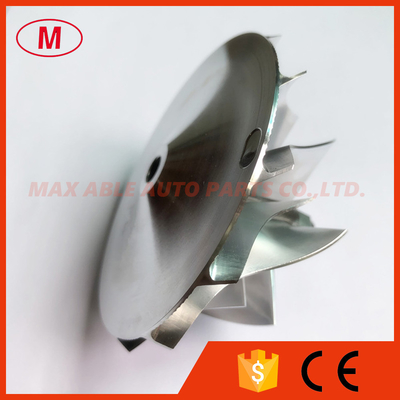

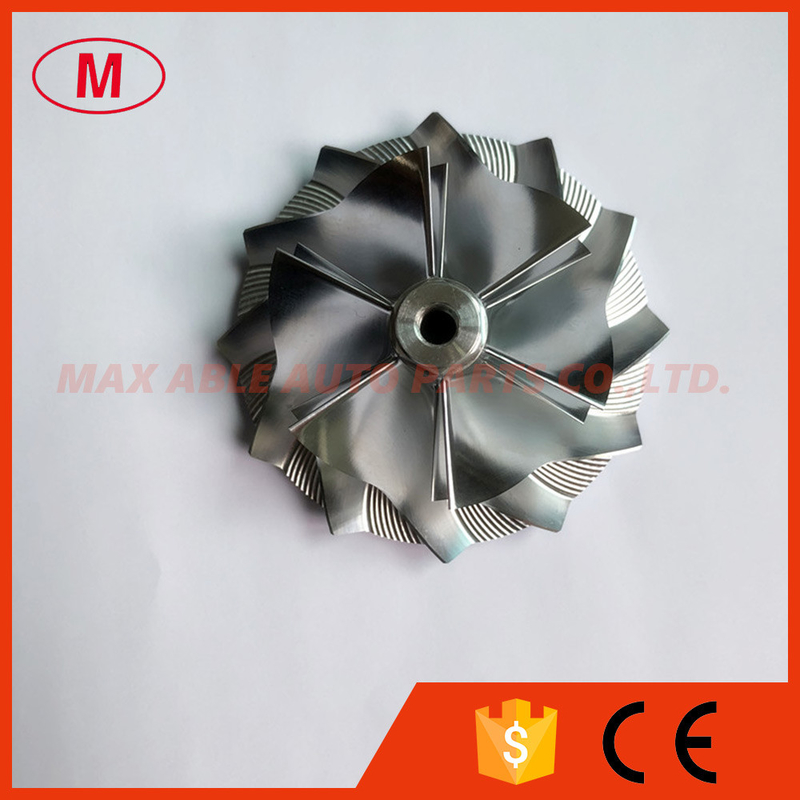

1. MODEL:GT3782VAS front
2.GT3782VAS 59.10/82.04mm 6+6 blades billet/milling/aluminum 2618 compressor wheel for PowerMax turbo Stage 1: 759361-0010 GT3782R with an 82mm, 50 trim compressor wheel
3.Size:
Nose diameter:15.78mm
inducer:59.10mm
Exduder:82.04mm
Tapered tip:87.50mm
Tip height:5.73mm
Superback:5.40mm
Overall height:49.00mm
bore size:7.48mm
Trailing angle:45
Cutback:0.0
Sp height angle:0.00
Splitter height:22.60mm
Bore type:Threaded-M7x1.0LHT
Blade height:33.81mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the turbine shaft and compressor wheel have balanced .
The more models we also have.
