| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD05H 16G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:TD05H 20G reverse

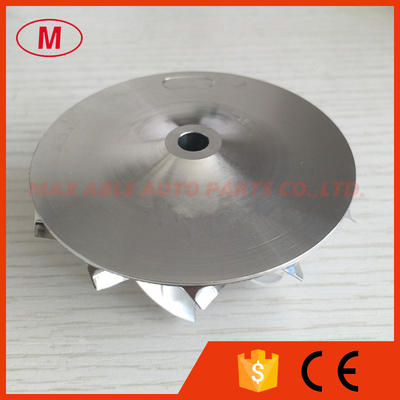

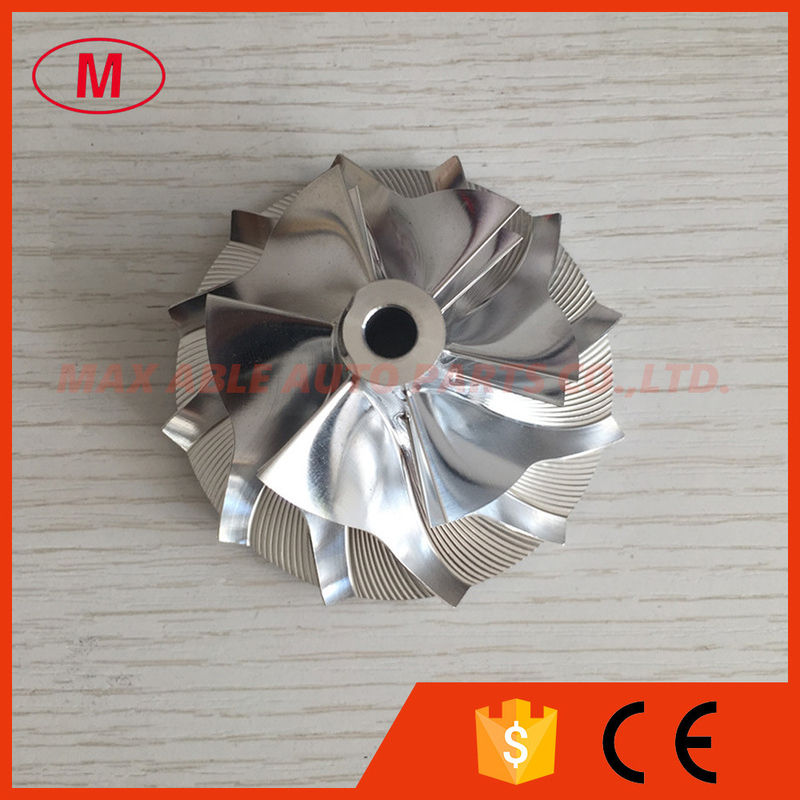

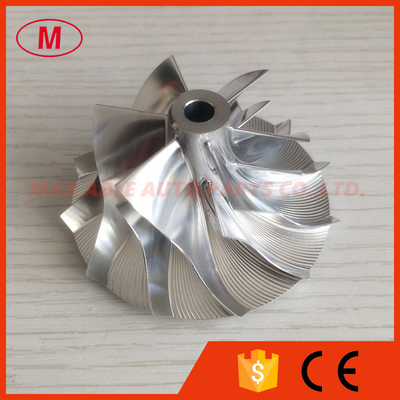

2.TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance Turbo Billet/milling/aluminum 2024 compressor wheel
3.Size:
Nose diameter:13.50mm
Inducer:52.56mm
Exducer:68.01mm
Tapered tip exducer:73.05mm
Tip height:5.37mm
Superback:2.90mm
Overall height:35.00mm
bore size :6.50mm
Trailing Angle:45
Cutback:0.0
SP height angle:-8.50
Splitter height:20.20mm
Blade height :28.90mm
6+6 BLADES.
FIT FOR OE compressor housing
Reverse rotation
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheel have been balanced.
