| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TF035 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TF035 forward

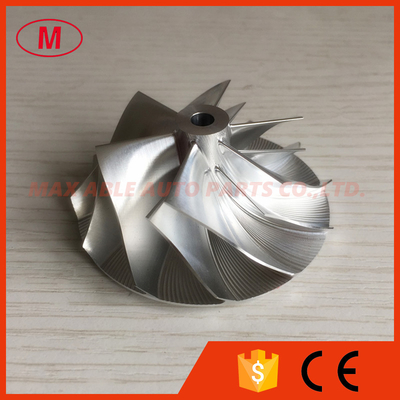

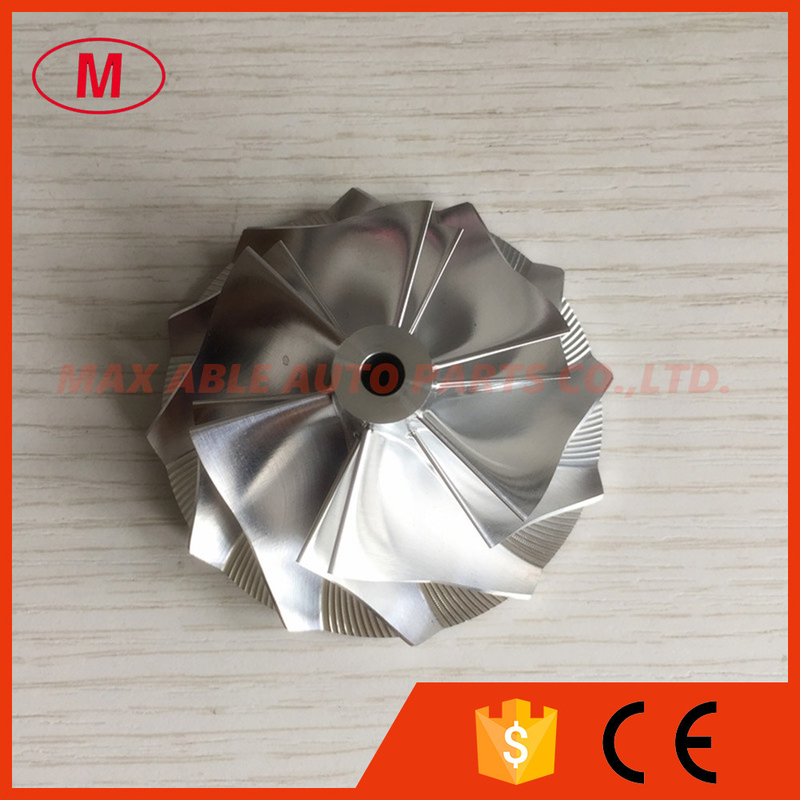

2.TF035 45.70/60.13mm 6+6 high performanceTurbo Billet/milling/aluminum 2618 compressor wheel for racing
3.Size:
Nose diameter:11.51mm
inducer:45.70mm
Exduder:60.13mm
Tapered tip:62.45mm
Tip height:4.58mm
Superback:1.90mm
bore size :5.00mm
Overall height:26.13mm
Trailing angle:45
SP height angle:0.00
Splitter height:15.50mm
Blade height:21.80mm
Cutback:3.0
6 long 6 short
Forward rotation
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the compressor wheel have been balanced.
The more models we also have.
