| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | KTR110 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:KTR110 reverse rotation

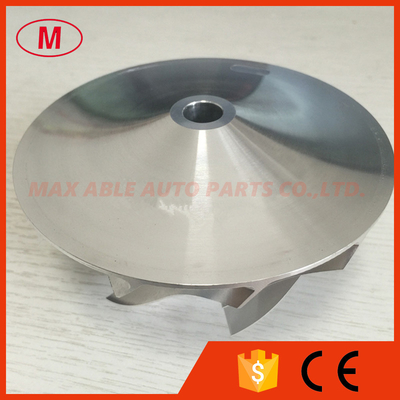

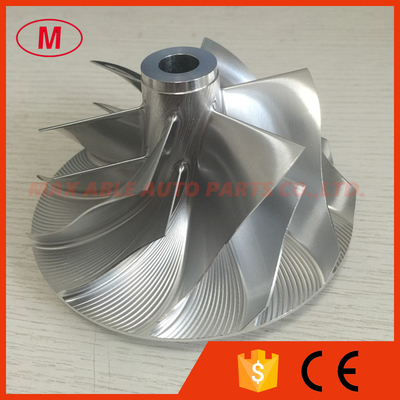

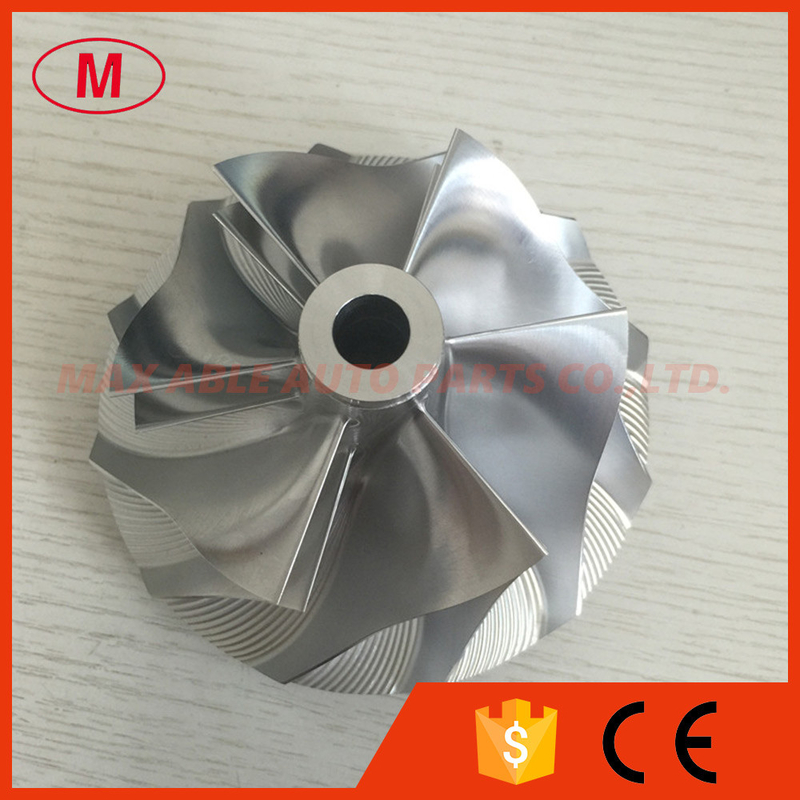

2.KTR110 reverse 6505-51-1410 72.14/106.00mm 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for Komats*u 6505-52-5410
3.Size:
Nose diameter:21.75mm
inducer:72.14mm
Exducer:106.00mm
Tip height:8.80mm
OE Exducer:108.76mm
Superback:9.05mm
Overall height:55.00mm
Bore size:11.00mm
bore type:through
Trailing angle:50 degree
Cutback:0.0
Blades height:40.80mm
Splitter height:26.15mm
Sp height angle:-3.90
6+6 blades
reverse rotation
Tapered tip angle:0 degree
Fits OE Compressor Housing
4.High quality and competitive price.
5.Any questions please send email to me.
All the billet compressor wheels have been balanced.
