Max Able Auto Parts Co.,Ltd.
Customer Satisfy is the eternal pursue of corporation.
Customer Satisfy is the eternal pursue of corporation.
 |
| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:GT15-25 forward

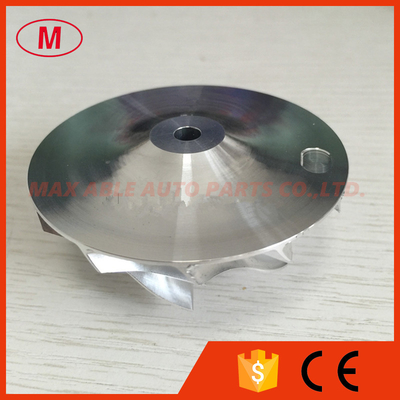

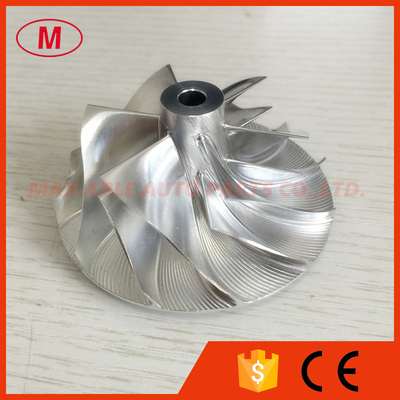

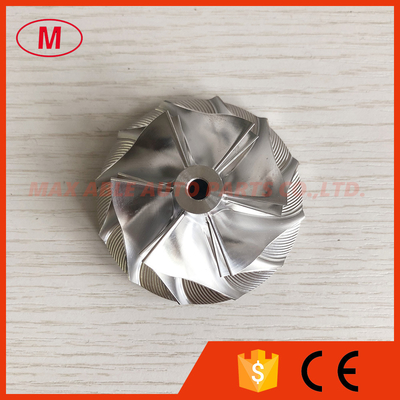

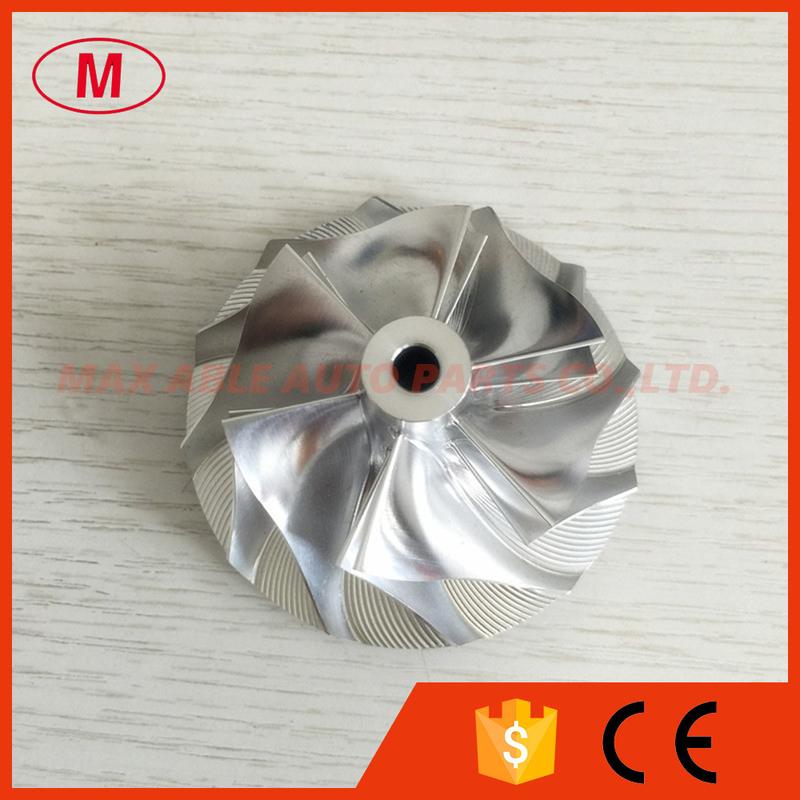

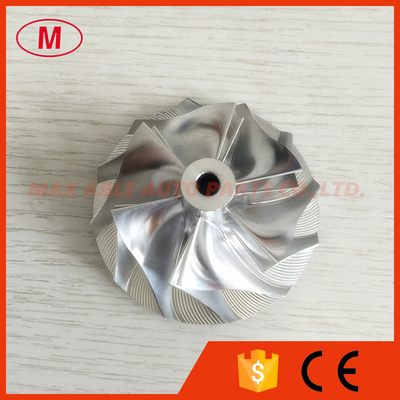

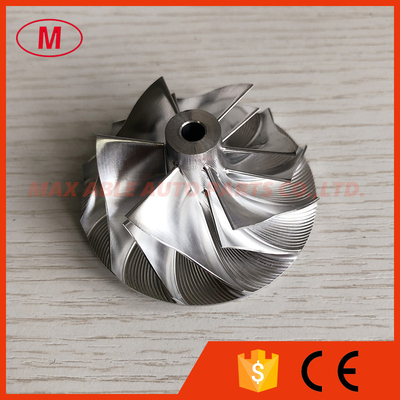

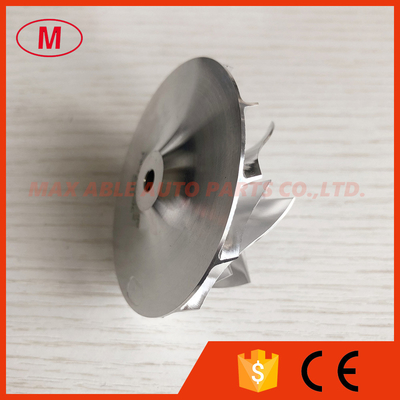

2.GT15-25 Forward 44.39/60.01mm 6+6 Blades 784369-0002/787571-0002 turbo billet/milling/aluminum 2618 compressor wheel for 758351-0003, 758351-0005, 758351-0009, 758351-0013, 758351-0015, 758351-0017, 758351-0019, 758351-0020, 758351-0022, 758351-0024, 765985-0001, 765985-0003, 765985-0001, 765985-0003, 765985-0005, 765985-0006, 765985-0008, 765985-0010, 802774-0004, 802774-0005, 769909-0009, 769909-0010, 776470-0001, 776470-0003, 769909-0010, 776470-0001, 769909-0009
3.Size:
Nose Diameter:12.11mm
inducer:44.39mm
Exduder:60.01mm
Tip height:5.16mm
Superback:3.79mm
Overall height:29.44mm
bore size :5.08mm
bore type:through
Trailing angle:60 degree
Cutback:0.0
SP height angle:-4.20
Splitter height:13.75mm
Blade height:20.50mm
Forward rotation
6+6 blades
Tapered tip angle:0 degree
Application:
758351-0003, 758351-0005, 758351-0009, 758351-0013, 758351-0015, 758351-0017, 758351-0019, 758351-0020, 758351-0022, 758351-0024, 765985-0001, 765985-0003, 765985-0001, 765985-0003, 765985-0005, 765985-0006, 765985-0008, 765985-0010, 802774-0004, 802774-0005, 769909-0009, 769909-0010, 776470-0001, 776470-0003, 769909-0010, 776470-0001, 769909-0009
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement .
The more models we also have.
