| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 10000pcs |
1.Model:K04 forward

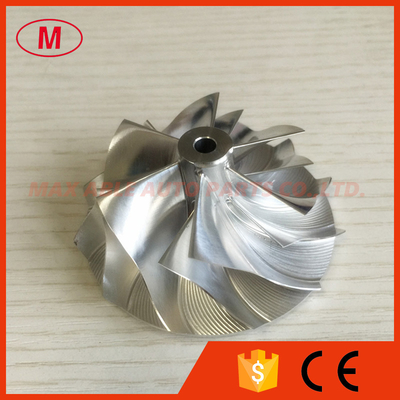

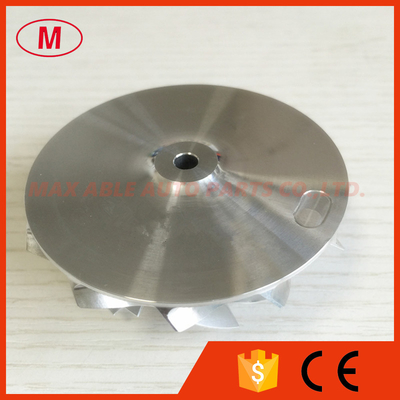

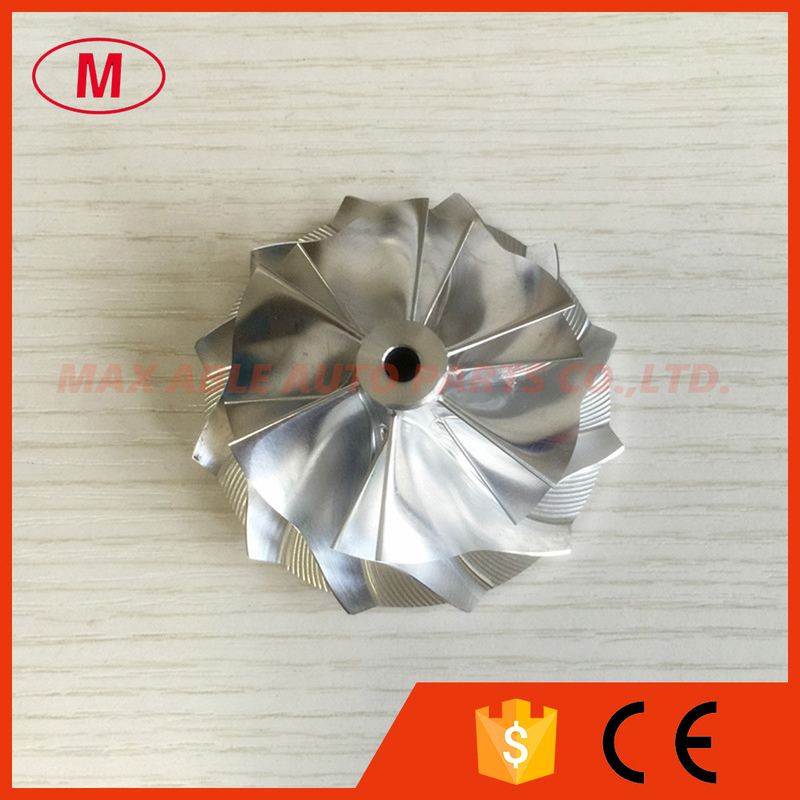

2.K04 49.62/61.98mm 6+6 blades high performance turbo aluminum 2618/milling/ billet compressor wheel
3.SIZE:
Nose Diameter:11.78mm
inducer:49.62mm
Exducer:61.98mm
Tapered tip exducer:65.90mm
Tip height:4.95mm
Superback:1.80mm
Overall height:28.00mm
bore size :4.61mm
bore type:through
Trailing angle:60 degree
Cutback:8.0
SP Height angle:-6.00
Blades height:23.25mm
Splitter height:16.35mm
6+6 blades
forward rotation
Tapered tip angle:27 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5. aluminum 2618/milling/ billet compressor wheel.
6.Please send email to me or talk to me on online ,if you want to know more details.
All the compressro wheels have been balanced.
