| Model Number: | TD05H 16G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD05H 16G

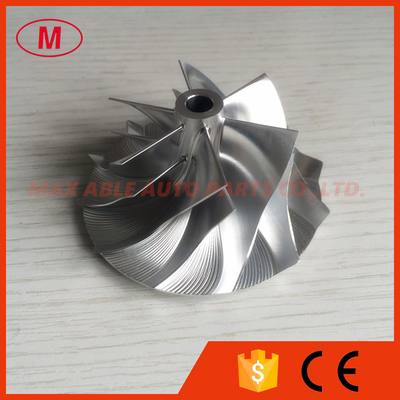

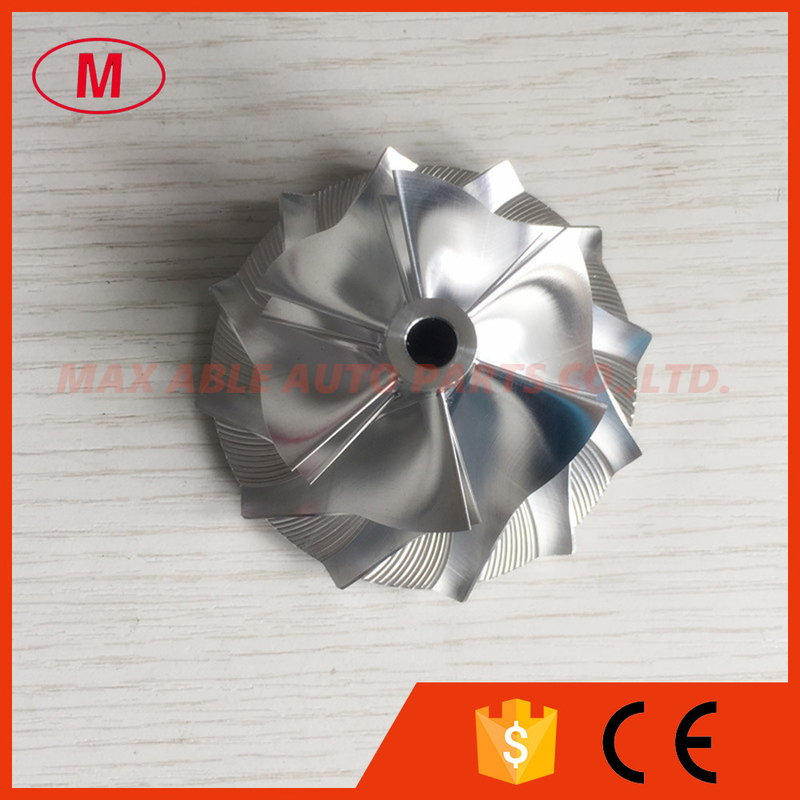

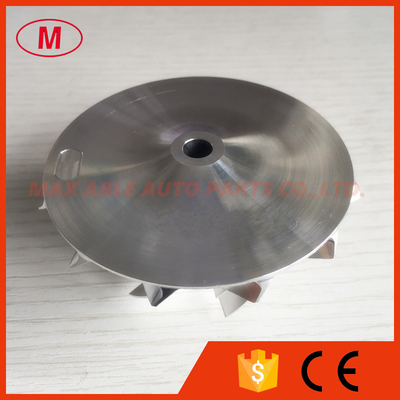

2.TD05H 16G reverse 48.30/68.01mm 6+6 blades high performance Billet/milling/aluminum 2024 compressor wheel for 49178-01560
3.Size:
Nose diameter:11.50mm
Inducer:48.30mm
Exducer:68.01mm
Tapered tip:72.18mm
Tip height:4.61mm
Superback:2.90mm
Ovearll height:35.00mm
Bore:6.50mm
Blade height:29.20mm
6 long 6 short reverse
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheel have been balanced.
