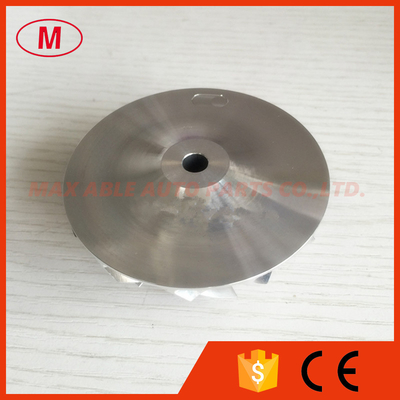

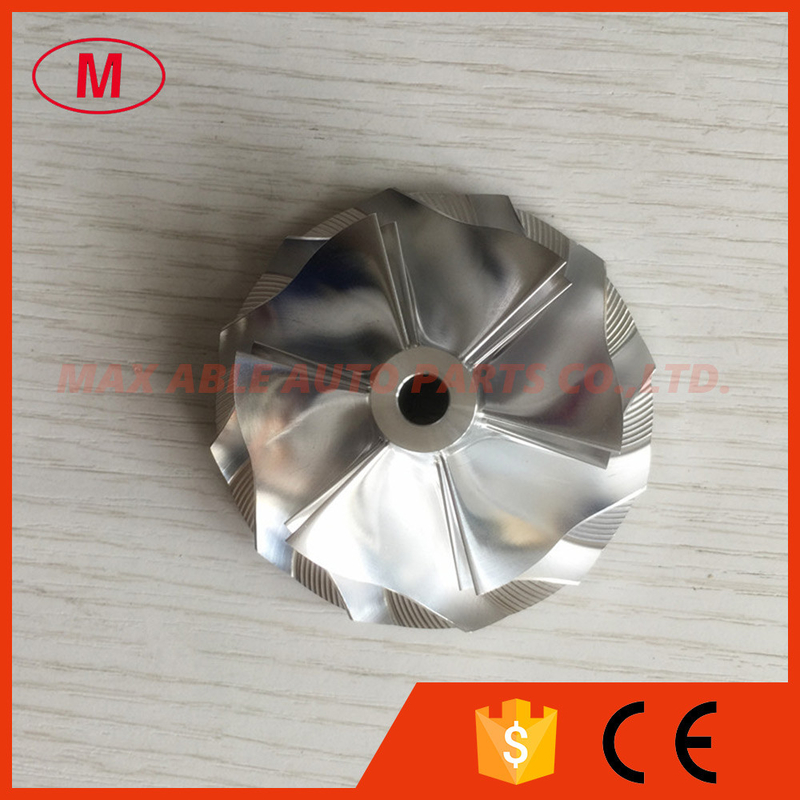

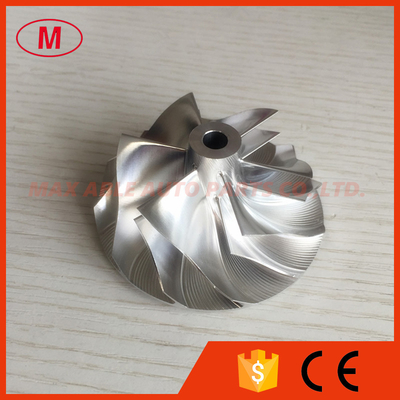

TD05H-20G 49179-43400 52.56/68.01mm 6+6 blades Turbo 49179-00260/EVO Billet/milling compressor wheel

TD05H-20G 49179-43400 52.56/68.01mm 6+6 blades Turbo 49179-00260/EVO Billet/milling compressor wheel

    • TD05H-20G 49179-43400 52.56/68.01mm 6+6 blades Turbo 49179-00260/EVO Billet/milling compressor wheel
    • TD05H-20G 49179-43400 52.56/68.01mm 6+6 blades Turbo 49179-00260/EVO Billet/milling compressor wheel
    • TD05H-20G 49179-43400 52.56/68.01mm 6+6 blades Turbo 49179-00260/EVO Billet/milling compressor wheel
  • TD05H-20G 49179-43400 52.56/68.01mm 6+6 blades Turbo 49179-00260/EVO Billet/milling compressor wheel

    Product Details:

    Model Number: TD05H 20G

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description



    1. MODEL:TD05H 20G foward

    2.TD05H 20G 52.56/68.01mm 49179-43400 6+6 blades Turbo Billet/milling/aluminum 2618 compressor wheel

    for 49179-00260/EVO

    3.Size:

    Nose diameter:13.50mm

    Inducer:52.56mm

    Exducer:68.01mm

    Tip height:6.03mm

    Superback:2.90mm

    Overall height:31.50mm

    bore size :6.50mm

    Trailing Angle:60

    Cutback:0.0

    Blade height :22.94mm

    Tapered tip Angle:0 degree

    6+6 BLADES.

    Forward rotation

    FIT for OE compressor housing
