| Model Number: | gt15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1.Model:GT15-25 Forward

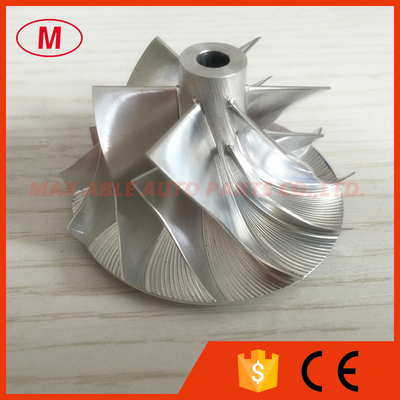

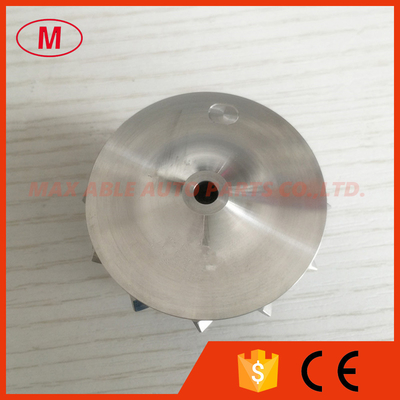

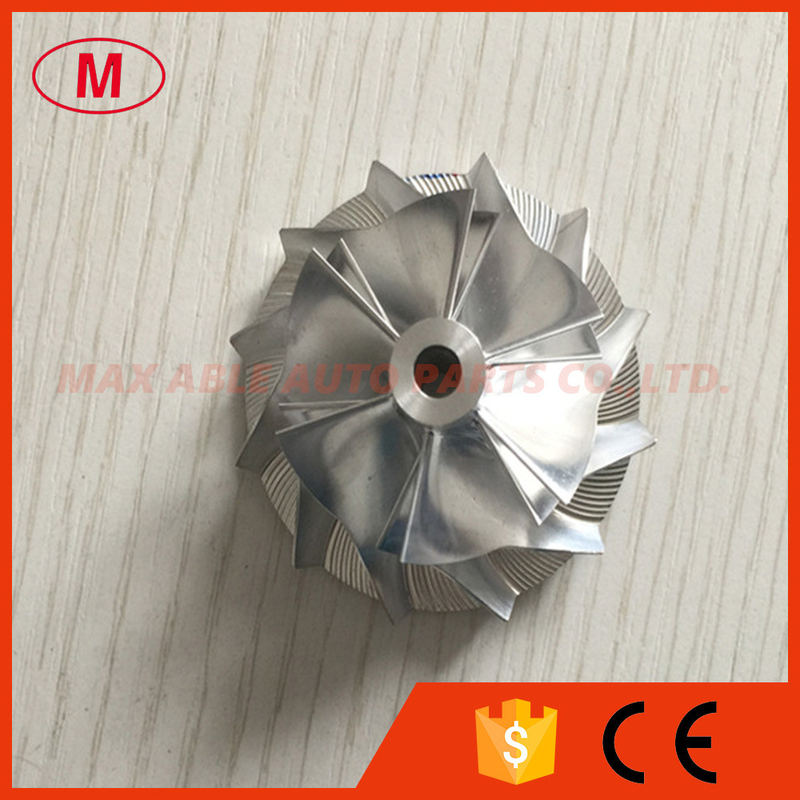

2. GT15-25 38.62/52.19mm 6+6 Blades 436131-0002 billet/aluminum 2618/milling turbocharger compressor wheel for 452204/454061/454135-0001/0002/0006/0011/705954
3.Size:
Nose diameter:10.63mm
Inducer: 38.62mm
Exuducer:52.19mm
Tapered tip exducer:56.39mm
Tip height:4.64mm
Superback:2.39mm
Overall height:26.07mm
Bore:5.08mm
bore type:through
Trailing angle:60 degree
Blades height:18.77mm
Cutback:0.0mm
SP height angle:0.00
Splitter height:12.00mm
6+6 blades
Forward Rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
Application:
452204
454061
454135-0001/0002/0006/0011
705954
4.High quality and competitive price.
5.Any questions please send email to me,we have many size.
All the compressor wheels have been balanced.
