| Brand Name: | NO |
| Model Number: | TF08L |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1. MODEL:TF08L forward

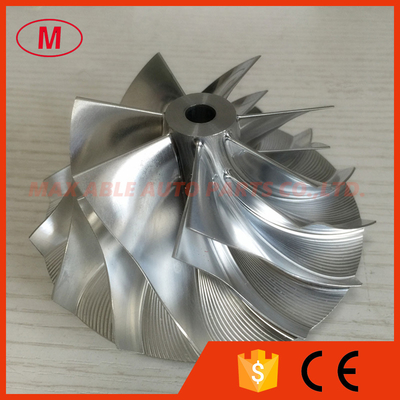

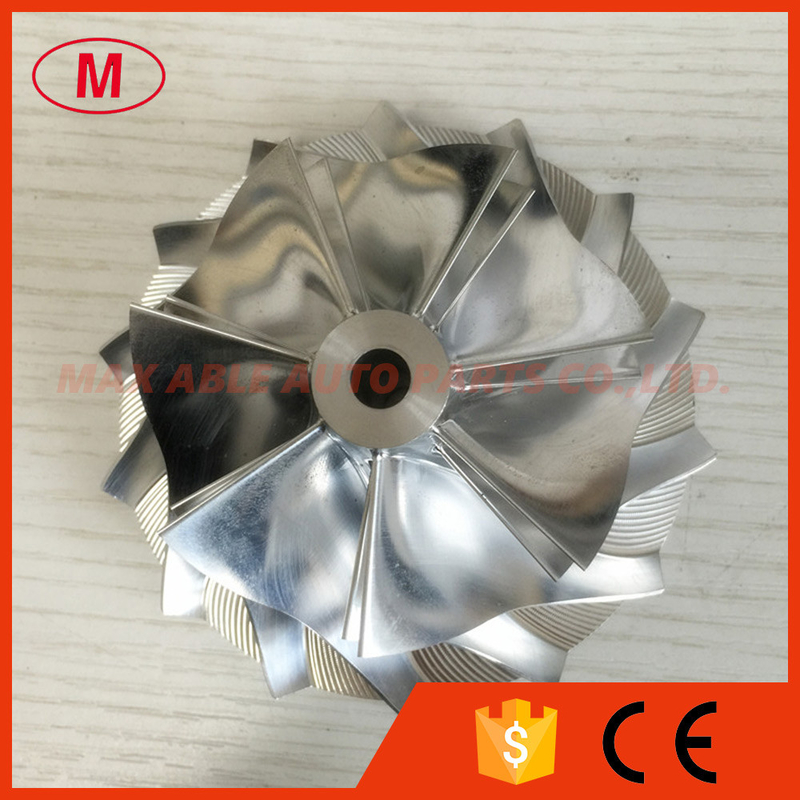

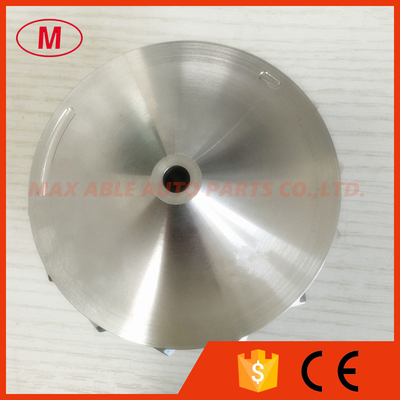

2.TF08L 49134-40500/34KX3 71.92/98.00mm 7+7 blades Turbo performance design Billet/milling/aluminum 2024 compresssor wheel for Mitsubishi
3.Size:
Nose diameter:18.38mm
Inducer:71.92mm
Exducer:98.00mm
Tapered tip exducer103.84mm
Tip height:6.06mm
Superback:11.00mm
Overall height:50.30mm
Bore:7.95mm
Blade height:37.56mm
Trailing Angle:60
Cutback:0.0
7 long 7 short
Tapered tip Angle:30 degree
Fit for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me.
