Place of Origin: | CHINA |
Brand Name: | NO |
Model Number: | GT15-25 |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT/western union/paypal |
Supply Ability: | 1000 |
1. MODEL:GT15-25 forward

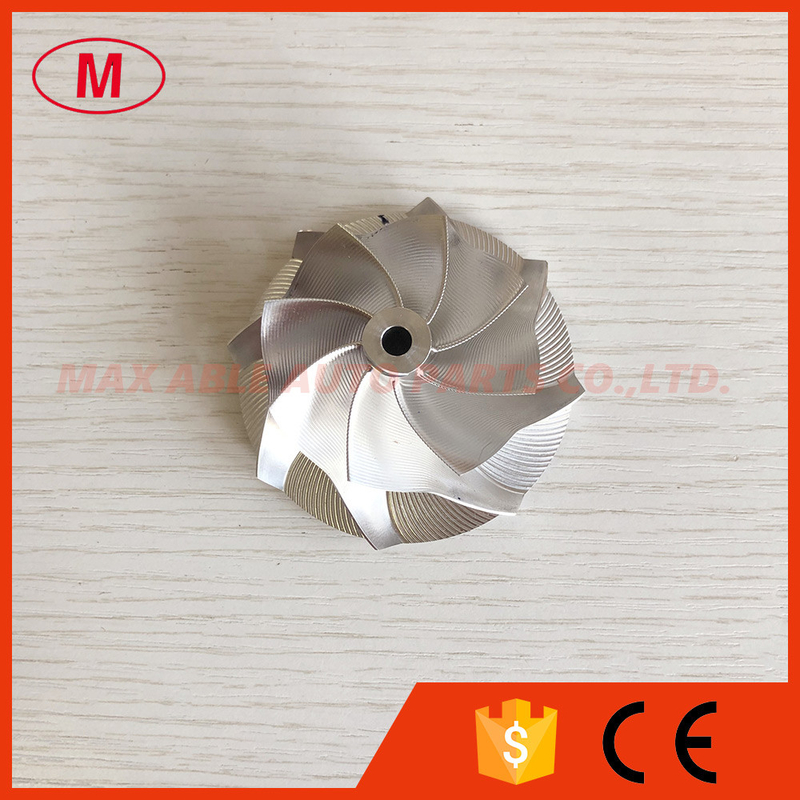

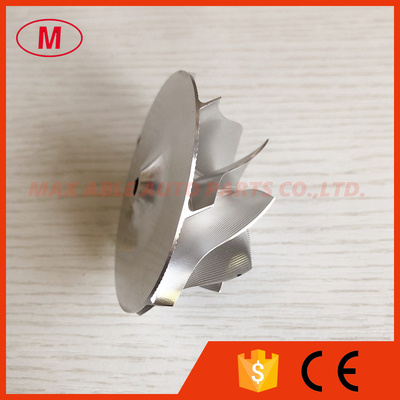

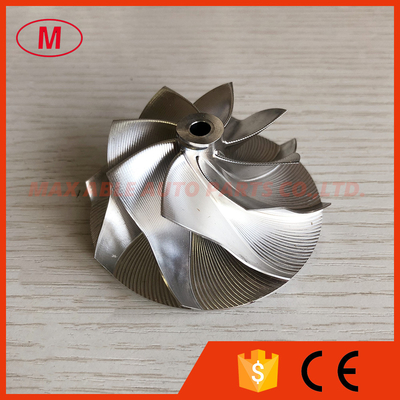

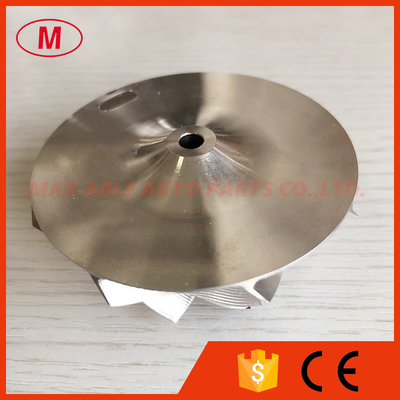

2.GT15-25 49.70/67.40mm 8+0 blades Point Milling, Air curve turbocharger milling/aluminum 2618/Billet compressor wheel
3.Size:
Nose diameter:11.91mm
inducer:49.70mm
Exduder:67.40mm
Tapered tip exducer:70.65mm
Tip height:6.00mm
Superback:3.71mm
Overall height:34.00mm
bore size :5.08mm
bore type:through
Trailing angle:50 degree
Cutback:0.0mm
SP height angle:0.0
Blade height:26.27mm
Splitter height:0.00mm
8+0 blades
Forward rotation
It is Custom size ,please check carefully before buying.
Tapered tip angle:18 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
