Customer Satisfy is the eternal pursue of corporation.
Place of Origin: | CHINA |
Brand Name: | NO |
Model Number: | GT55 |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT/western union/paypal |
Supply Ability: | 1000 |

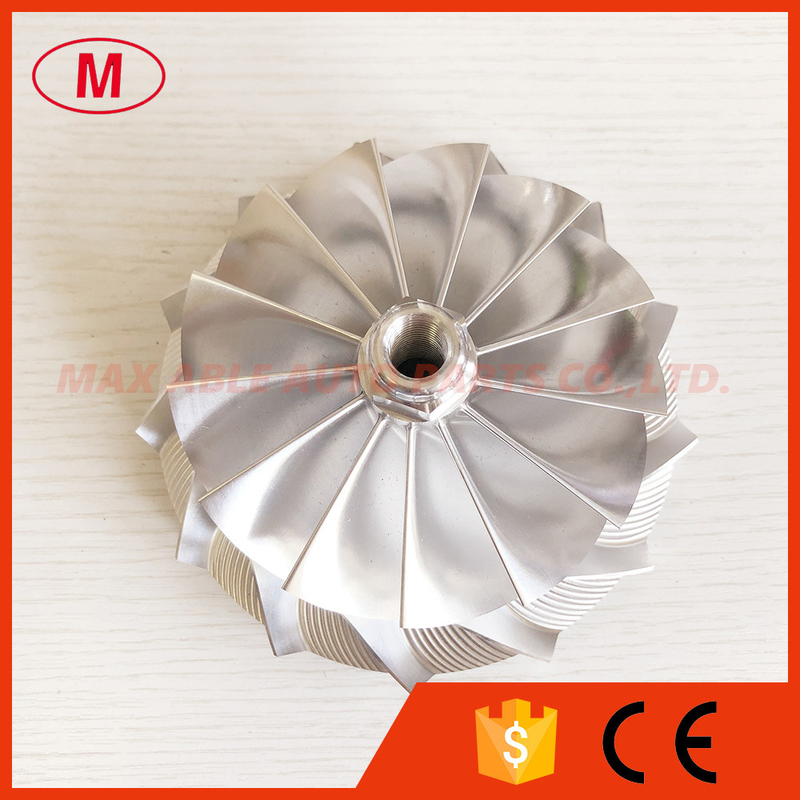

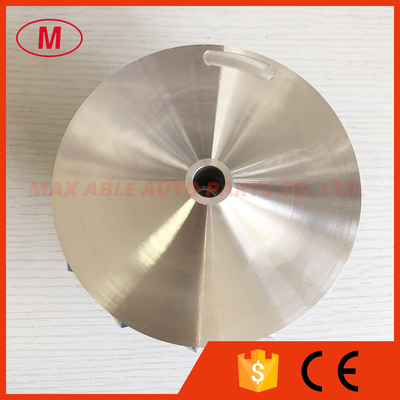

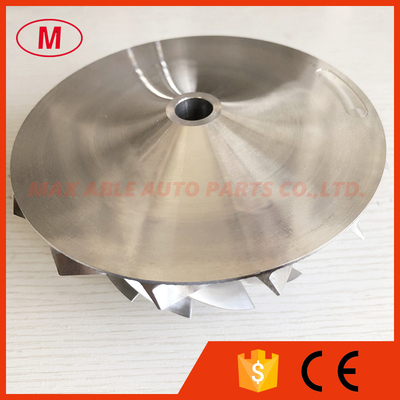

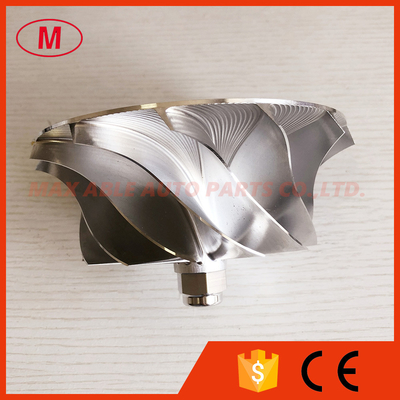

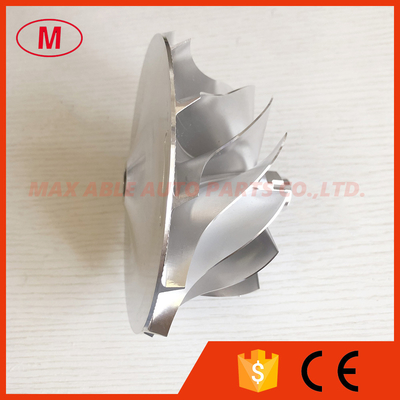

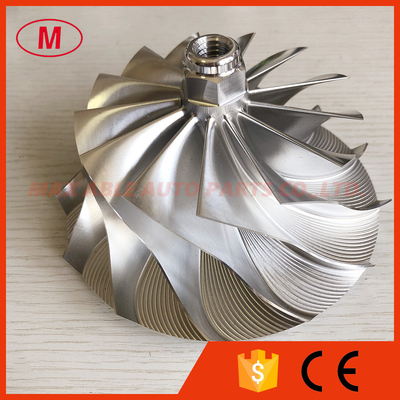

1. GT55 102.00/133.37mm 13+0 blades turbo milling/aluminum 2618/billet compressor wheel
2.Size :
Nose diameter:23.61mm
Inducer :102.00mm
Exducer:133.37mm
Tapered tip exducer:140.00mm
Tip height:9.35mm
superback:7.66mm
Overall height:81.20mm
Bore type:Threaded-1/2-13G-LHT
bore size:13.45mm
Trailing Angle:60
Cutback:5.00mm
sp height angle:0.00
Splitter height:0.00
Blade height:53.79mm
13+0 blades
Forward rotation
Tapered tip angle:22.88 degree
It is for OE compressor housing
3.High quality and competitive price.
4.if you want more details, please send email to me.
We can produce as your requirement.The minimun order 5pcs.
All the turbine shaft and compressor wheel have balanced .
The more models we also have.
