| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | TD04HL |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT/western union/paypal |
| Supply Ability: | 1000 |

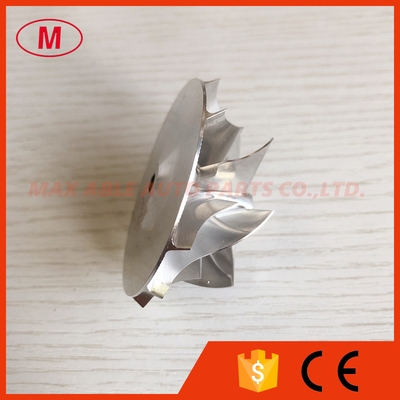

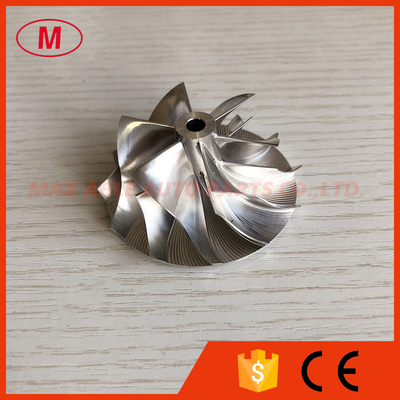

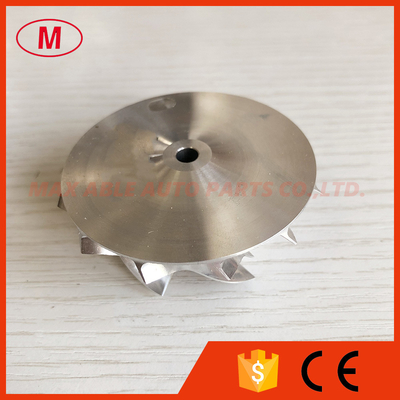

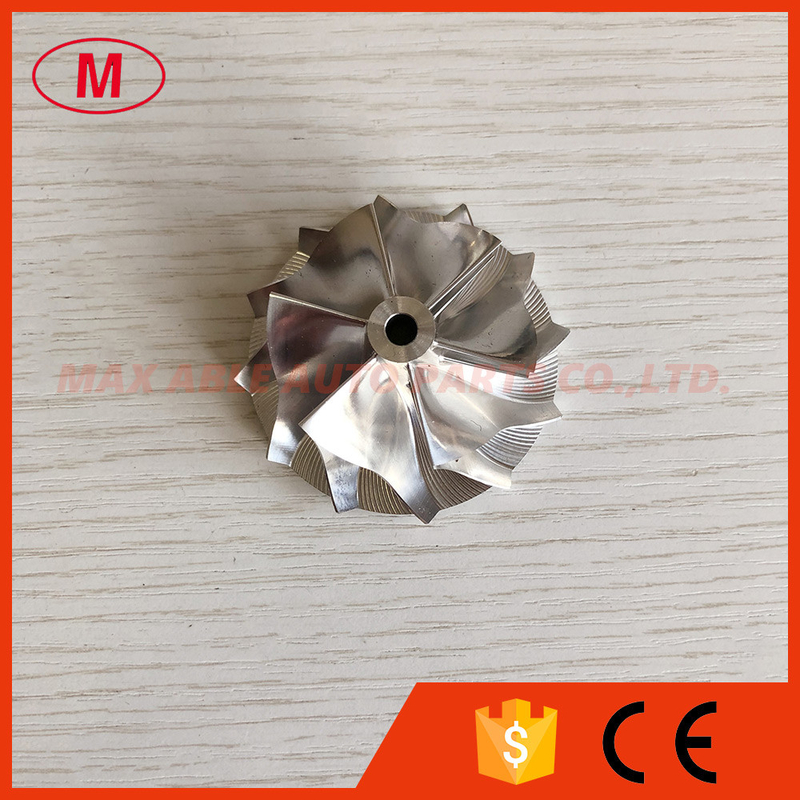

1. MODEL:TD04HL 16T Forward
2.TD04HL 16T 49189-00016 43.43/56.02mm 6+6 blades high performance Turbo milling/aluminum 2618 compressor wheel/Billet for 49189-01330/1350/1450/49377-00221
3.Size:
Nose diameter:10.64mm
inducer:43.43mm
Exduder:56.02mm
Tapered tip exducer:60.10mm
Tip height:4.53mm
Superback:1.83mm
bore size :5.00mm
bore type:through
Overall height:26.18mm
Trailing angle:60
Cutback:0.0
SP height angle:-4.50
Blade height:22.35mm
Splitter height:14.05
6+6 blades
FORWARD ROTATION
Tapered tip angle:30 degree
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
