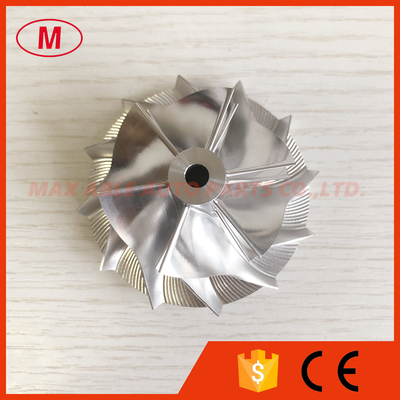

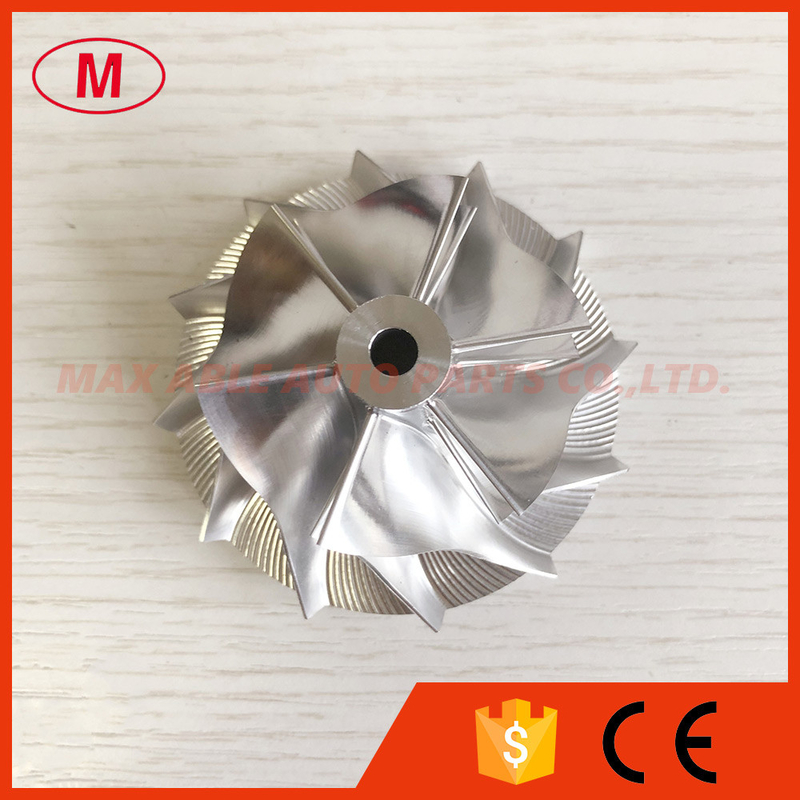

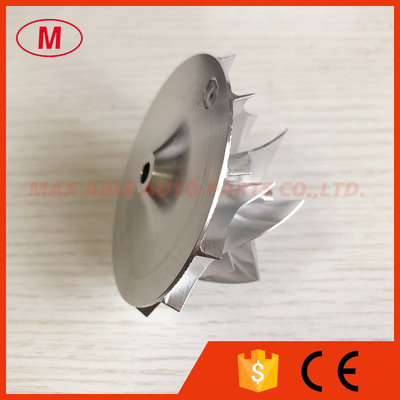

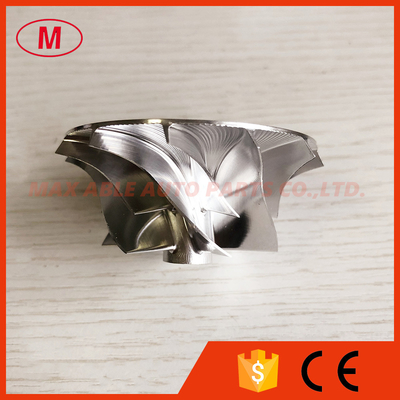

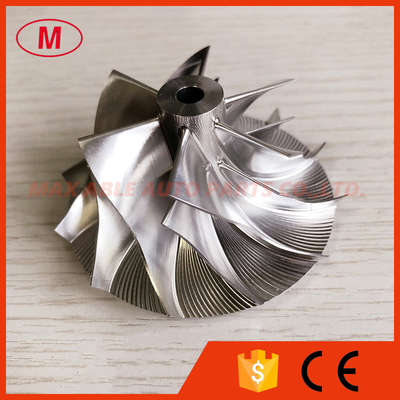

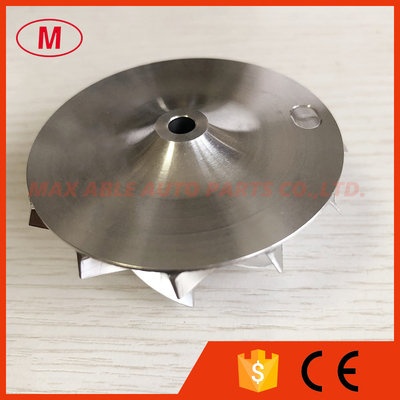

GT15-25 702549-0019/702549-0010 1102-022-404 42.87/59.48mm 6+6 blades performance aluminum 2618/billet compressor wheel

GT15-25 702549-0019/702549-0010 1102-022-404 42.87/59.48mm 6+6 blades performance aluminum 2618/billet compressor wheel

    • GT15-25 702549-0019/702549-0010 1102-022-404 42.87/59.48mm 6+6 blades performance aluminum 2618/billet compressor wheel
    • GT15-25 702549-0019/702549-0010 1102-022-404 42.87/59.48mm 6+6 blades performance aluminum 2618/billet compressor wheel
    • GT15-25 702549-0019/702549-0010 1102-022-404 42.87/59.48mm 6+6 blades performance aluminum 2618/billet compressor wheel
    • GT15-25 702549-0019/702549-0010 1102-022-404 42.87/59.48mm 6+6 blades performance aluminum 2618/billet compressor wheel
    • GT15-25 702549-0019/702549-0010 1102-022-404 42.87/59.48mm 6+6 blades performance aluminum 2618/billet compressor wheel
    • GT15-25 702549-0019/702549-0010 1102-022-404 42.87/59.48mm 6+6 blades performance aluminum 2618/billet compressor wheel

    Product Details:

    Place of Origin: China
    Brand Name: NO
    Model Number: GT15-25

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT,western union ,paypal
    Contact Now
    Detailed Product Description



    1.  MODEL:GT15-25 forward
    2.GT15-25 702549-0019/702549-0010 1102-022-404 42.87/59.48mm 6+6 blades  high performance turbo milling/aluminum 2618/billet compressor wheel for 702989-0003/0006
    3.Size:
    Nose diameter:12.13mm
    Inducer:42.87mm
    exducer:59.48mm
    Tapered tip exducer:63.88mm
    Tip height:4.81mm
    Superback:3.68mm
      bore size :5.08mm
    Overall height:32.38mm
    Cutback:0.0
    Trailing Angle:75
    SP Height angle:-6.00
    Blades height:25.72mm
    Splitter height:17.65mm
    6+6 blades  forward
    Fit for OE compressor housing
    Tapered tip Angle:30 degree
    4.High quality and competitive price.
    5.if you want more details, please send email to me.
     We can produce as your requirement ,the minimum order is 5pcs.
    All the compressor wheel have been balanced.
