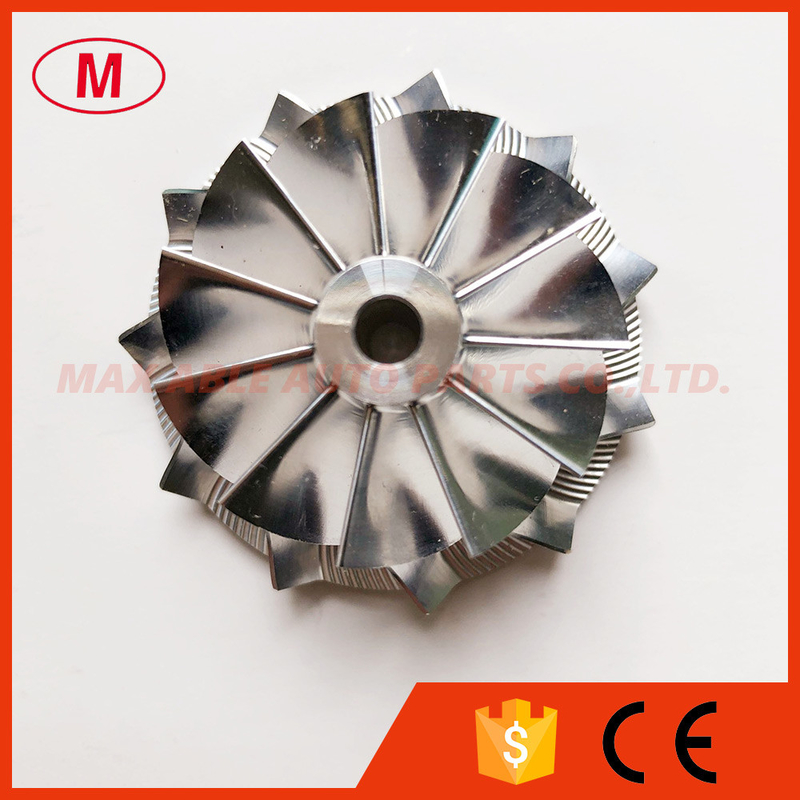

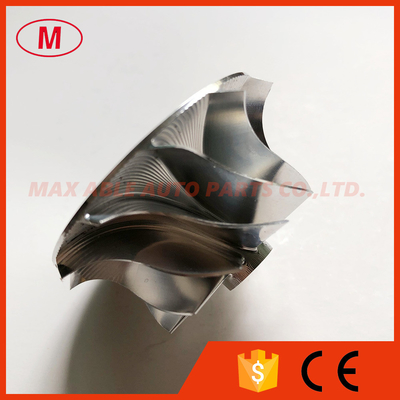

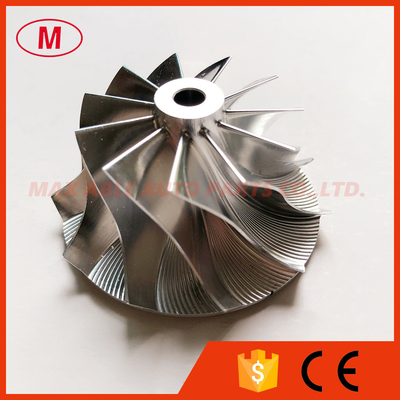

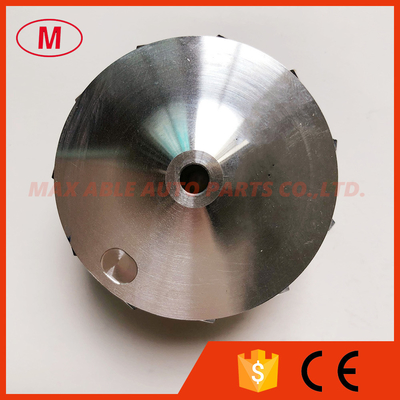

TD04 36.80/49.00mm 11+0 blades high performance turbocharger milling/aluminum 2618/billet compressor wheel

China TD04 36.80/49.00mm 11+0 blades high performance turbocharger milling/aluminum 2618/billet compressor wheel supplier
TD04 36.80/49.00mm 11+0 blades high performance turbocharger milling/aluminum 2618/billet compressor wheel supplier TD04 36.80/49.00mm 11+0 blades high performance turbocharger milling/aluminum 2618/billet compressor wheel supplier TD04 36.80/49.00mm 11+0 blades high performance turbocharger milling/aluminum 2618/billet compressor wheel supplier TD04 36.80/49.00mm 11+0 blades high performance turbocharger milling/aluminum 2618/billet compressor wheel supplier

Large Image :  TD04 36.80/49.00mm 11+0 blades high performance turbocharger milling/aluminum 2618/billet compressor wheel

Product Details:

Place of Origin: CHINA
Brand Name: -
Model Number: TD04

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: neutral packing
Delivery Time: 3-7 days
Payment Terms: TT/western union/paypal
Supply Ability: 1000
Contact Now
Detailed Product Description

1.Model:TD04 Forward
2.TD04 36.80/49.00mm 11+0 blades high performance turbocharger milling/aluminum 2618/billet compressor wheel
3.Size:
Nose diameter:11.00mm
Inducer:36.80mm
Exducer:49.00mm
Tapered tip exducer:52.69mm
Tip height:4.20mm
Superback:1.90mm
Overall height:26.70mm
Bore size:5.00mm
Trailing angle:45
Cutback:0.0
SP Height angle:0.00
Blade height:22.30mm
Splitter height:0.00mm
11+0 blades
Forward rotation
Tapered tip angle:30 degree
It is custom size,please check carefully before buying.

4.High quality ,competitive price and good service.

5.We can also produce as your requirement.
All the compressor wheel have been balanced.

6.If you want more details, please send email to me or talk to me online.
We will try our best to meet your needs.

TD04 36.80/49.00mm 11+0 blades high performance turbocharger milling/aluminum 2618/billet compressor wheelTD04 36.80/49.00mm 11+0 blades high performance turbocharger milling/aluminum 2618/billet compressor wheelTD04 36.80/49.00mm 11+0 blades high performance turbocharger milling/aluminum 2618/billet compressor wheel
