| Model Number: | k04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:K04 forward

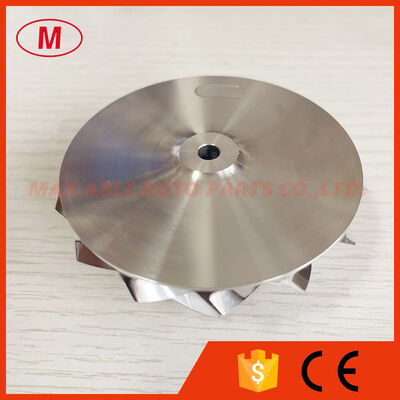

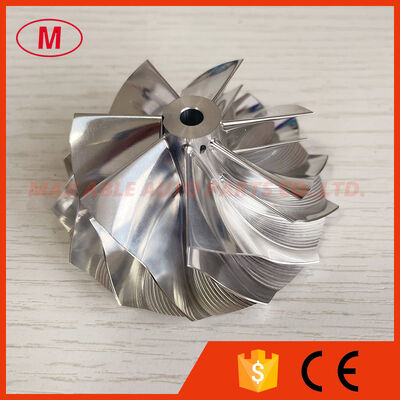

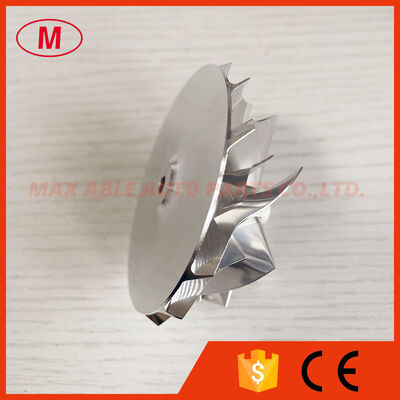

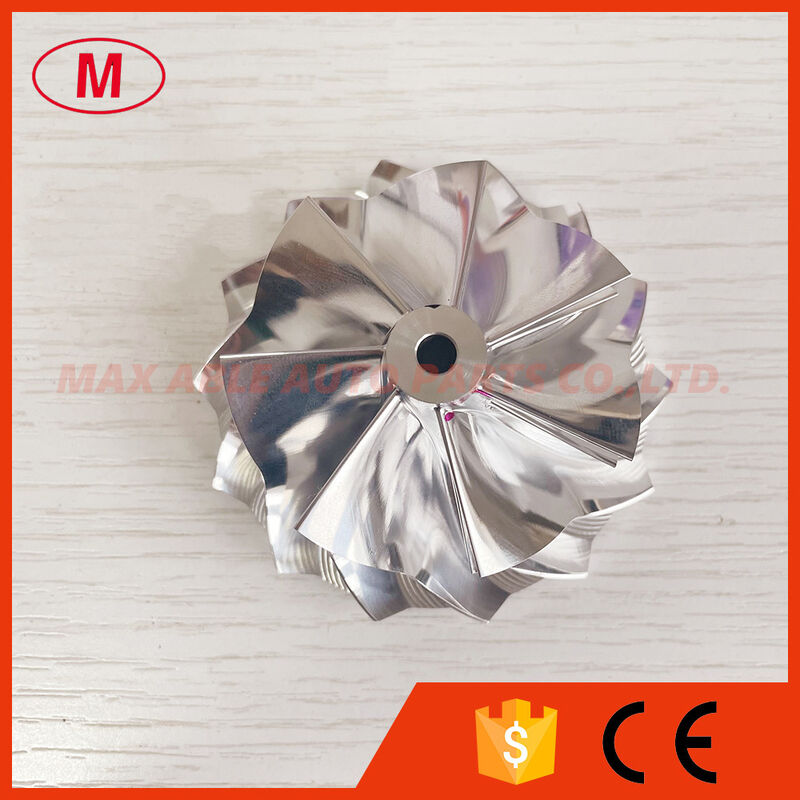

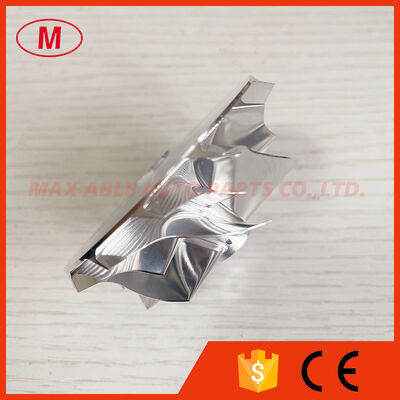

2.K04 51.58/61.98mm 7+7blades High Performance Milling/aluminum 2618/billet Compressor Wheel
3.Size:
Nose diameter:11.50mm
inducer:51.58mm
Exduder:61.98mm
Tapered tip exducer:66.31mm
Tip height:4.75mm
Superback:1.80mm
Overall height:28.00mm
bore size :4.61mm
bore type:through
Trailing Angle:45 degree
Cutback:8.0mm
SP height angle:-1.20
Blade height:24.00mm
Splitter height:13.90mm
7+7 blades
Tapered tip Angle:30 degree
Forward rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
