1. MODEL:GT15-25 forward

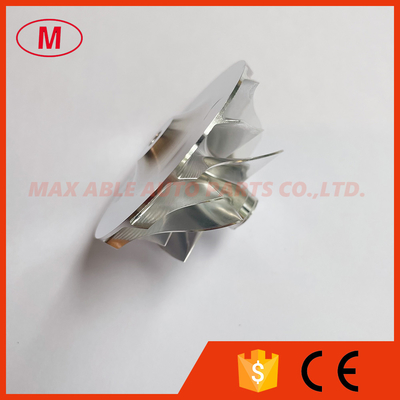

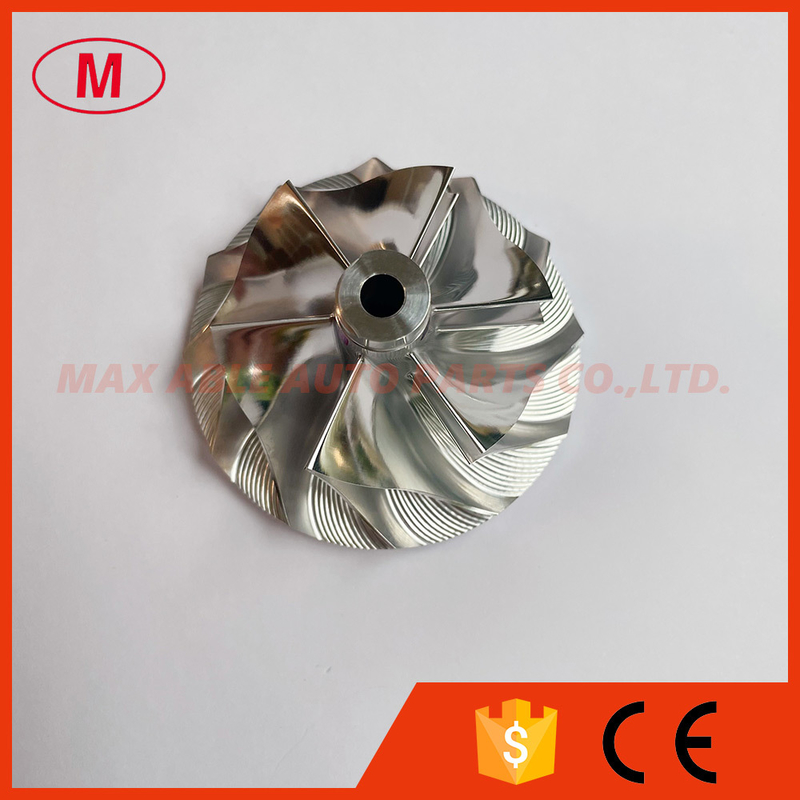

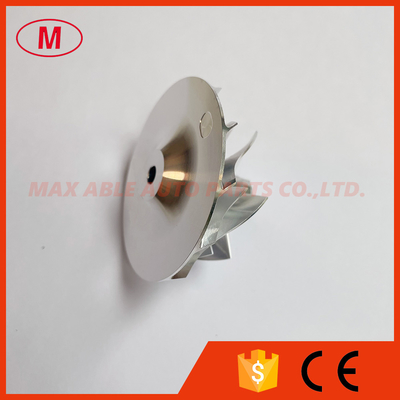

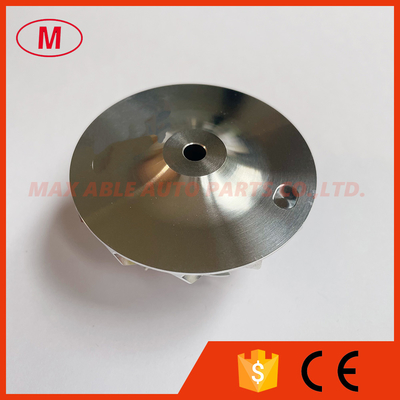

2.GT15-25 41.54/56.03mm 6+6 Blades 436563-0001/436563-0009/703361-0010 Turbo Milling/aluminum 2618 /Billet Compressor Wheel for 700935-0001, 700935-0002, 700935-0003, 700935-0004, 700935-0006, 700935-0007, 704361-0004, 704361-0005, 704361-0006, 704361-0010, 711009-0001, 711009-0002, 711009-0003, 712541-0001, 712541-0002, 712541-0003, 712541-0004, 712541-0005, 712541-0006, 712541-0007, 715568-0001, 715568-0002, 721204-0001, 727463-0001, 727463-0002, 727463-0003, 727463-0004, 727463-0006, 742289-0001, 742289-0002, 742289-0003, 742289-0004, 750510-0001, 751578-0001, 751578-0002, 751758-0001, 751758-0002, 763263-0002, 763263-0003, 763263-0004, 763263-0006
3.Size:
Nose diameter:11.40mm
Inducer:41.54mm
exducer:56.03mm
Tip height:4.59mm
Superback:3.68mm
bore size :5.08mm
bore type:through
Overall height:30.94mm
Cutback:0.00mm
Trailing Angle:45 degree
SP height angle:-6.00
Blades height:20.17mm
Splitter height:13.05mm
6+6 blades forward
Fit for OE compressor housing
Tapered tip Angle:0 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement ,the minimun order is 5pcs .
All the compressor wheels have been balanced.
