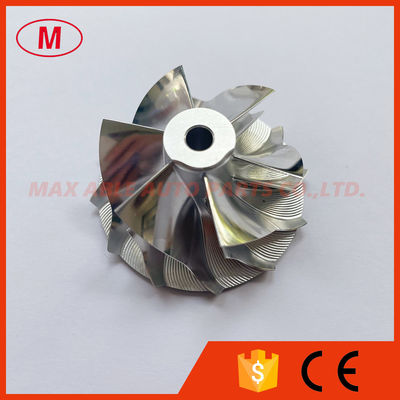

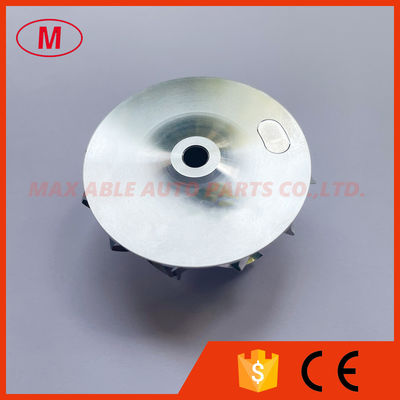

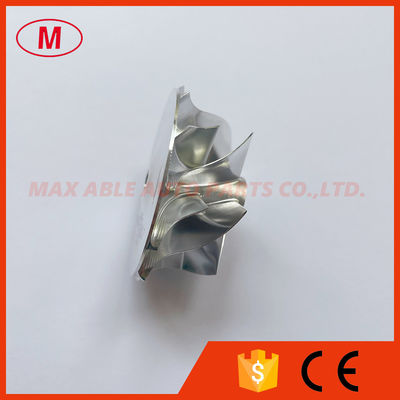

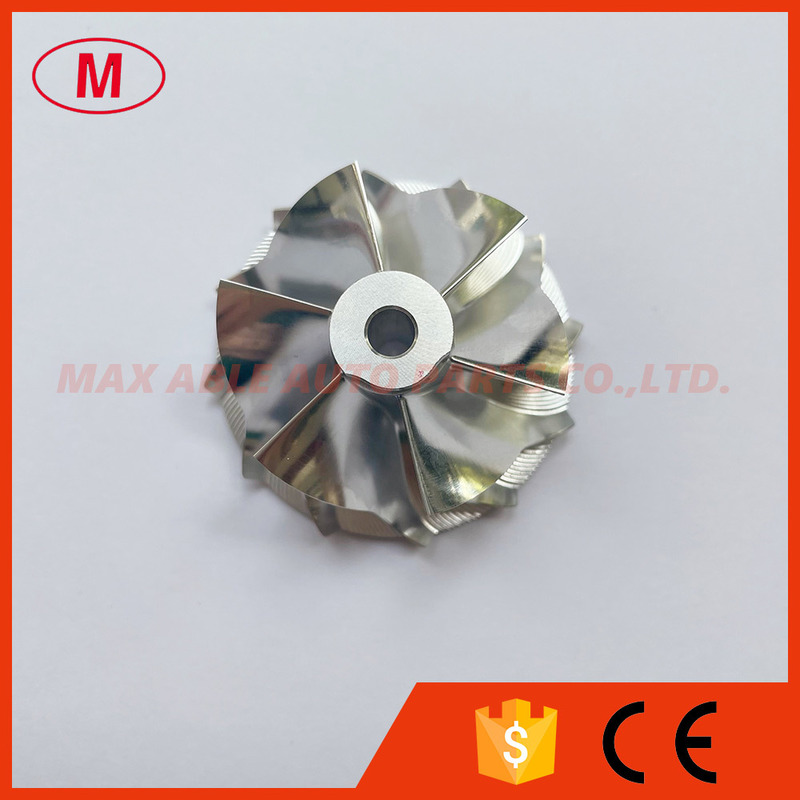

TD04 39.10/46.00mm 6+6 blades turbocharger milling/aluminum 2618/billet compressor wheel

TD04 39.10/46.00mm 6+6 blades turbocharger milling/aluminum 2618/billet compressor wheel

    • TD04 39.10/46.00mm 6+6 blades turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04 39.10/46.00mm 6+6 blades turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04 39.10/46.00mm 6+6 blades turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04 39.10/46.00mm 6+6 blades turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04 39.10/46.00mm 6+6 blades turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04 39.10/46.00mm 6+6 blades turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04 39.10/46.00mm 6+6 blades turbocharger milling/aluminum 2618/billet compressor wheel

    Product Details:

    Place of Origin: China
    Brand Name: no
    Model Number: TD04

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1.Model:TD04 Forward
    2.TD04 39.10/46.00mm 6+6 blades turbocharger billet/milling/aluminum 2618 compressor wheel
    3.Size:
    Nose diameter:13.00mm
    Inducer:39.10mm
    Exducer:46.00mm
    Tapered tip exducer:48.92mm
    Tip height:2.50mm
    Superback:1.23mm
    Overall height:23.60mm
    Bore size:5.00mm
    bore type:through
    Trailing angle:60 degree
    Cutback:6.5mm
    SP Height angle:0.00
    Blade height:20.45mm
    Splitter height:11.00mm
    6+6 blades
    Forward rotation
    Tapered tip angle:39 degree
    It is custom size ,please check carefully before buying.

    4.High quality ,competitive price and good service.

    5.We can also produce as your requirement.
    All the compressor wheels have been balanced.

    6.If you want more details, please send email to me or talk to me online.
    We will try our best to meet your needs.

    Skype: maxabledieselparts

    Wechat/Whatsapp:+86-18018657719

    TD04 39.10/46.00mm 6+6 blades turbocharger milling/aluminum 2618/billet compressor wheel
    TD04 39.10/46.00mm 6+6 blades turbocharger milling/aluminum 2618/billet compressor wheelTD04 39.10/46.00mm 6+6 blades turbocharger milling/aluminum 2618/billet compressor wheelTD04 39.10/46.00mm 6+6 blades turbocharger milling/aluminum 2618/billet compressor wheelTD04 39.10/46.00mm 6+6 blades turbocharger milling/aluminum 2618/billet compressor wheelTD04 39.10/46.00mm 6+6 blades turbocharger milling/aluminum 2618/billet compressor wheelTD04 39.10/46.00mm 6+6 blades turbocharger milling/aluminum 2618/billet compressor wheelTD04 39.10/46.00mm 6+6 blades turbocharger milling/aluminum 2618/billet compressor wheel
