| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | KTR110 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1.Model:KTR110 forward rotation

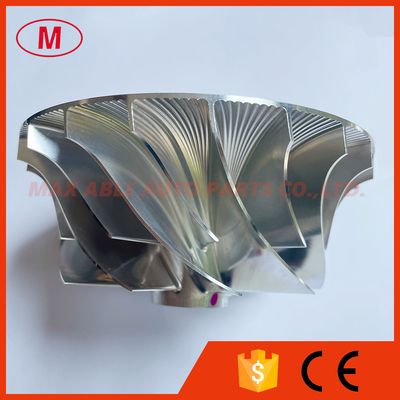

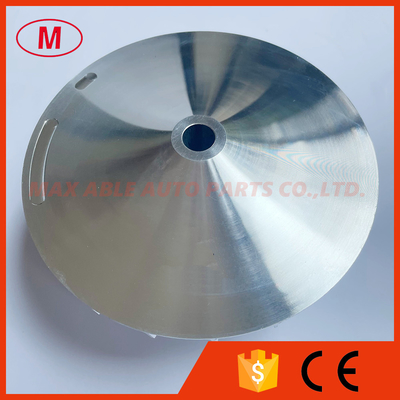

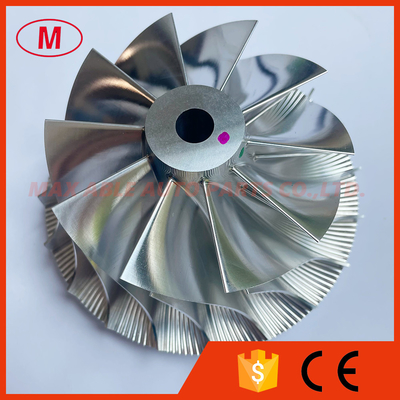

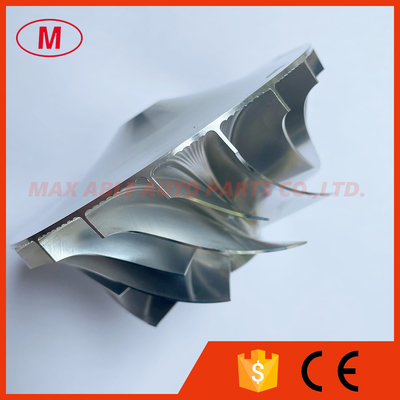

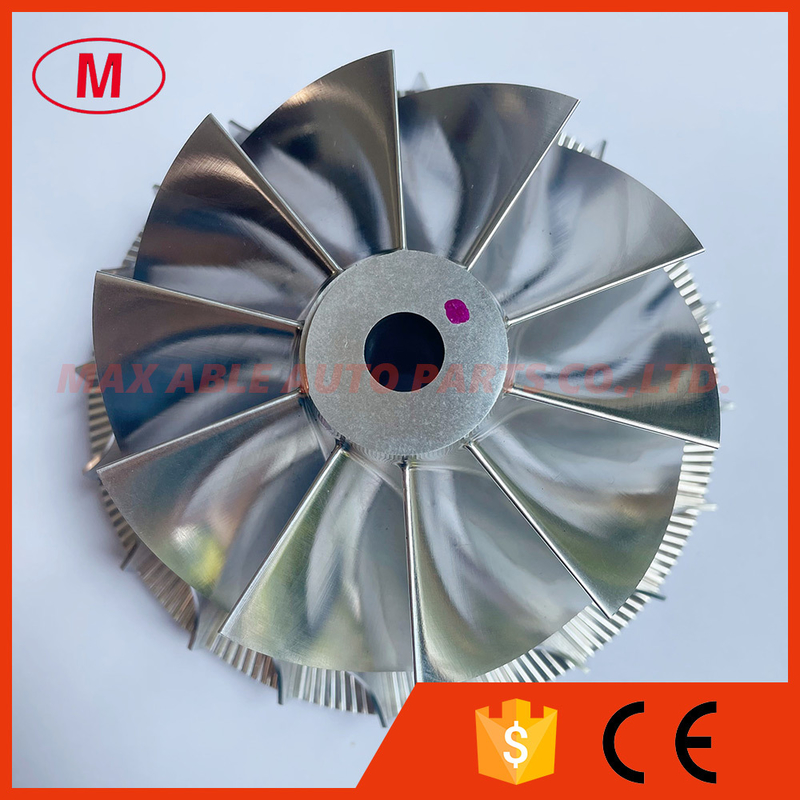

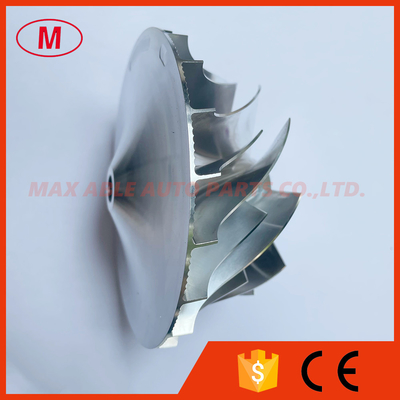

2.KTR110 forward 94.00/125.98mm 10+10Blades billet/milling/aluminum 2618 turbo compressor wheel
3.Size:
Nose diameter:28.30mm
Inducer:94.00mm
Exducer:125.98mm
Tip height:9.36mm
Superback:11.79mm
Overall height:67.03mm
Bore size:11.03mm
bore type:through
Trailing angle:80 DEGREE
Cutback:3.0mm
SP Height angle:2.50
Blades height:49.50mm
Splitter height:34.20mm
10+10blades
forward rotation
Tapered tip angle:0 degree
It is for OE compressor housing
4.Good quality and competitive price.
5.if you want to know more details ,please send email to me !
We have more model you want.
