| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | SUPERCHARGER |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |

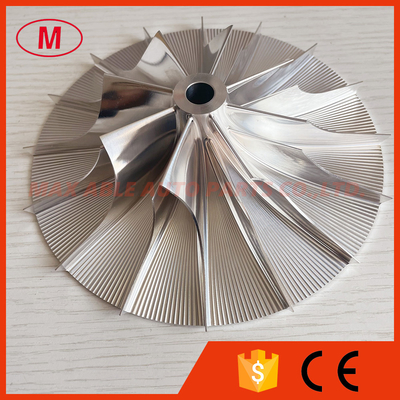

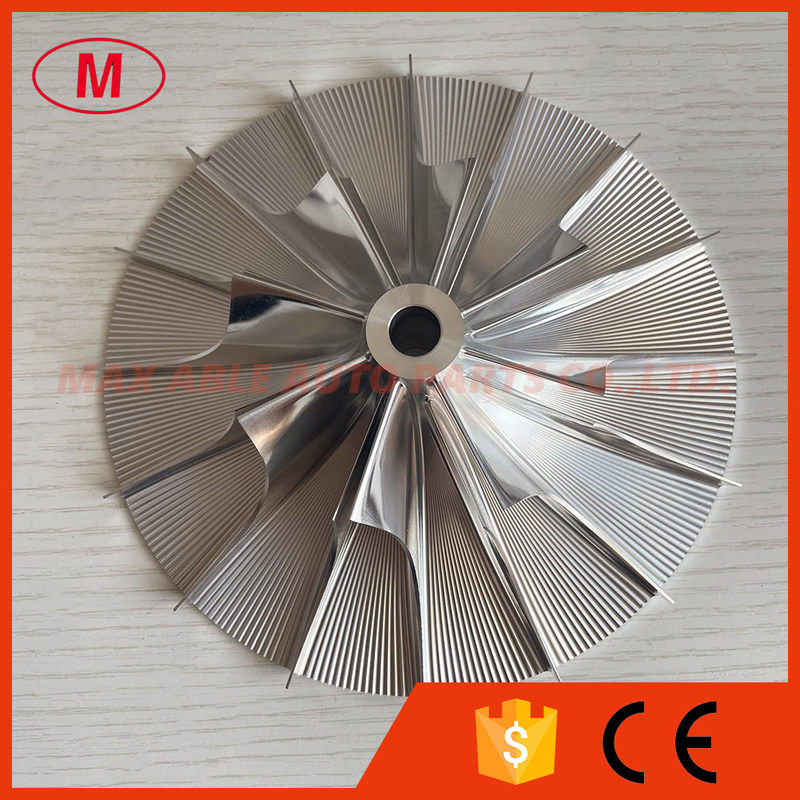

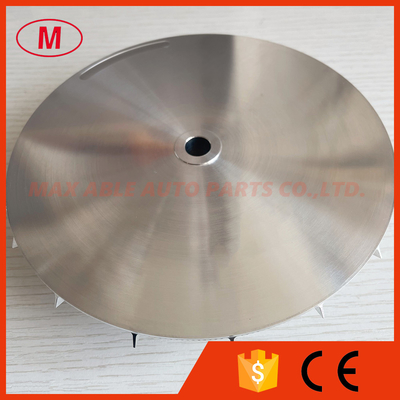

1.Model:supercharger forward
3.Size:
Nose diamter:18.87mm
inducer:76.00mm
Exduder:145.90mm
Tapered tip exducer:151.82mm
Tip height:6.63mm
Superback:0.70mm
Overall height:36.45mm
bore size :10.00mm
bore type:through
Trailing Angle:90 degree
Cutback:0.0mm
SP height angle:0.80
Splitter height:23.60mm
Blades height:33.90mm
It is for OE COMPRESSOR HOUSING
8+8 blades
FORWARD ROTATION
Tapered tip angle:30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement. The minimum order is 5pcs .
All the compressor wheels have been balanced.
The more models we also have.
