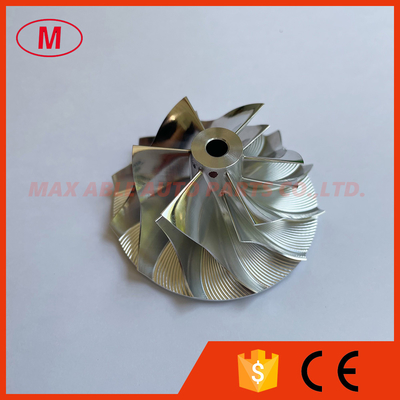

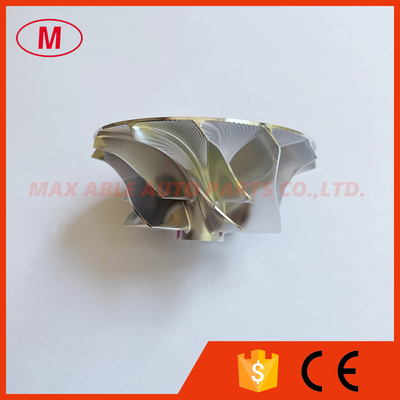

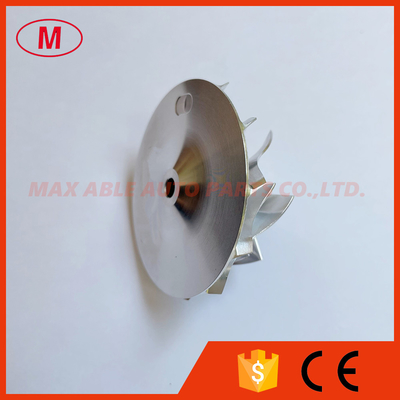

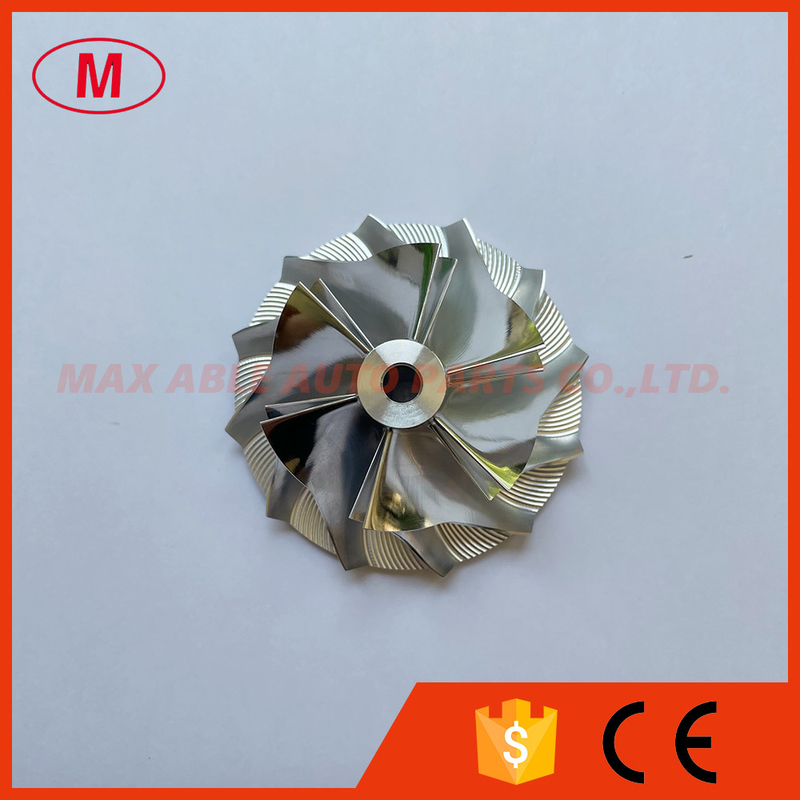

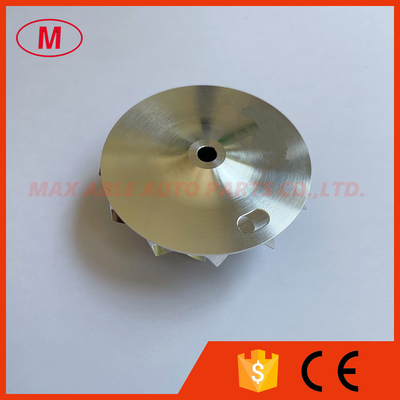

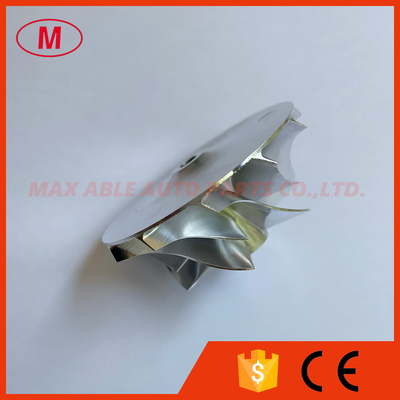

GTA15-25 40.40/56.02mm 6+6 blades701374-00031102-022-402 turbo milling/aluminum 2618/billet compressor wheel

GTA15-25 40.40/56.02mm 6+6 blades701374-00031102-022-402 turbo milling/aluminum 2618/billet compressor wheel

    • GTA15-25 40.40/56.02mm 6+6 blades701374-00031102-022-402 turbo milling/aluminum 2618/billet compressor wheel
    • GTA15-25 40.40/56.02mm 6+6 blades701374-00031102-022-402 turbo milling/aluminum 2618/billet compressor wheel
    • GTA15-25 40.40/56.02mm 6+6 blades701374-00031102-022-402 turbo milling/aluminum 2618/billet compressor wheel
    • GTA15-25 40.40/56.02mm 6+6 blades701374-00031102-022-402 turbo milling/aluminum 2618/billet compressor wheel
    • GTA15-25 40.40/56.02mm 6+6 blades701374-00031102-022-402 turbo milling/aluminum 2618/billet compressor wheel
    • GTA15-25 40.40/56.02mm 6+6 blades701374-00031102-022-402 turbo milling/aluminum 2618/billet compressor wheel
    • GTA15-25 40.40/56.02mm 6+6 blades701374-00031102-022-402 turbo milling/aluminum 2618/billet compressor wheel

    Product Details:

    Model Number: GTA15-25

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Size: 40.40/56.02mm Type: Turbochargers

    1.Model:GTA15-25 forward
    2.GTA15-25 40.40/56.02mm 6+6 blades 701374-0003 1102-022-402 turbo Billet/milling/aluminum 2618 compressor wheel
    3.Size:
    Nose diameter:11.93mm
    Inducer:40.40mm
    exducer:56.02mm
    Tapered tip exducer:58.34mm
    Tip height:4.57mm
    Superback:2.39mm
    bore size :5.08mm
    bore type:through
    Overall height:27.00mm
    Cutback:2.0mm
    Trailing Angle:55 degree
    Blades height:22.40mm
    Splitter height:15.55mm
    Sp height angle:-3.30
    6+6 blades
    forward rotation
    It is custom size ,please check carefully before buying.
    Tapered tip Angle:18 degree

    4.High quality and competitive price.
    5.if you want more details, please send email to me.
    All the compressor wheels have been balanced.
