| Place of Origin: | CHINA |
| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | MGT1446 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1.Model:MGT1446 forward

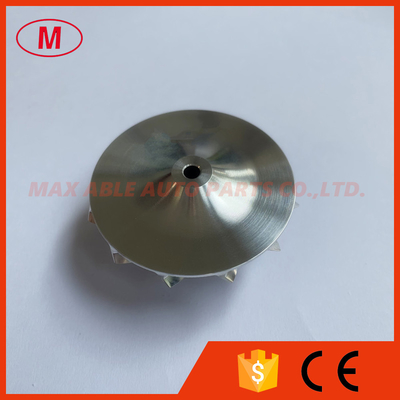

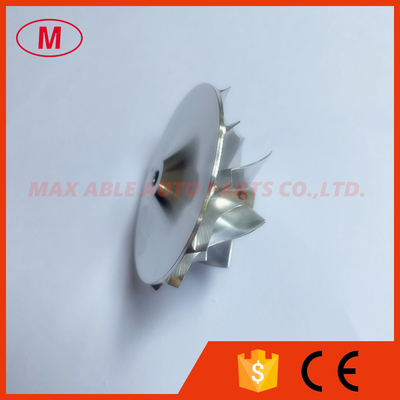

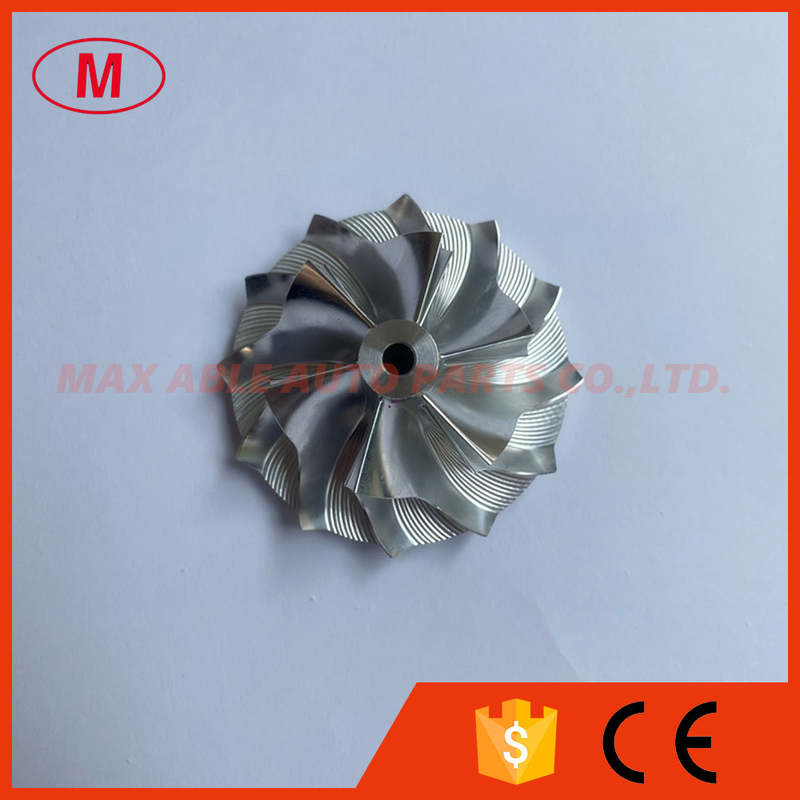

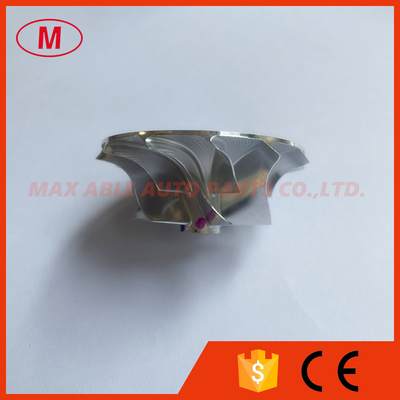

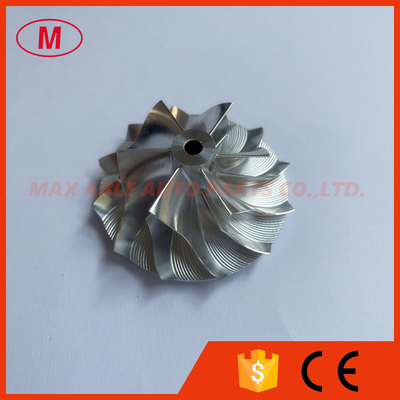

2.MGT1446 6+6 blades 35.75/50.60mm Performance Design turbo billet/milling/aluminum 2618 compressor wheel
3.SIZE:
Nose diameter:10.20mm
inducer:35.75mm
Exducer:50.60mm
Tapered tip exducer:53.84mm
Tip height:3.81mm
Superback:3.90mm
Overall height:25.15mm
bore size :4.08mm
bore type:Through
Trailing angle :45 degree
Cutback:3.5mm
Sp height Angle:0.00 degree
Splitter Height:11.70mm
Blade height:19.30mm
6+6 blades
Forward rotation
Tapered tip Angle:30 degree
It is for OE Compressor housing
4.Good quality and competitive price
5.please email to me or talk to me on online ,if you want to know more details.
All the compressor wheels have been balanced.
We can produce as your requirement.
