| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GT28 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |

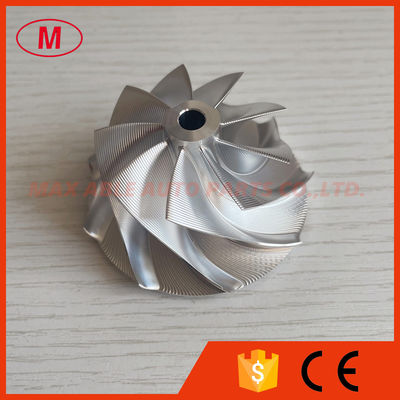

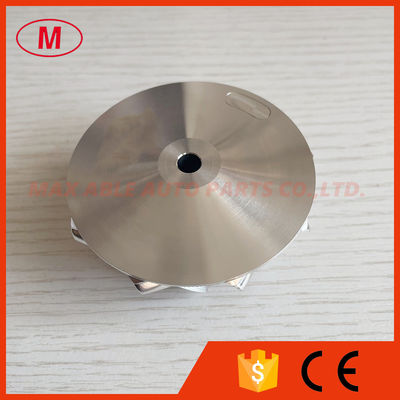

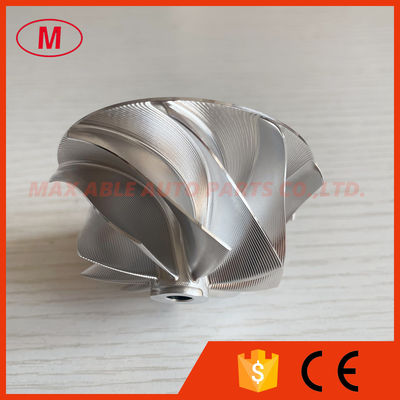

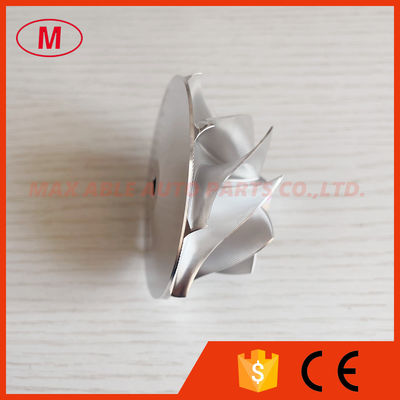

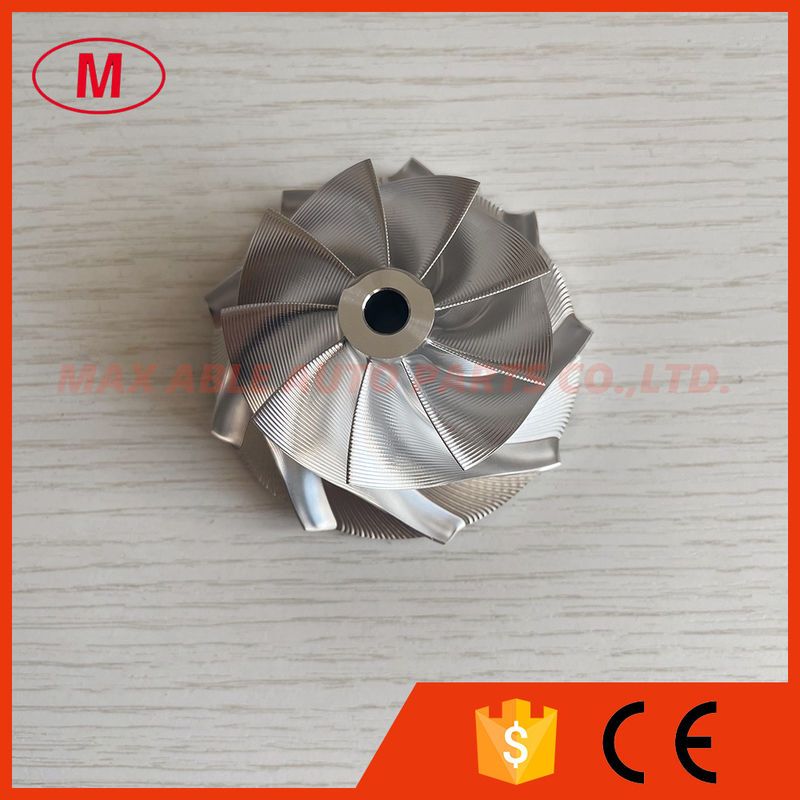

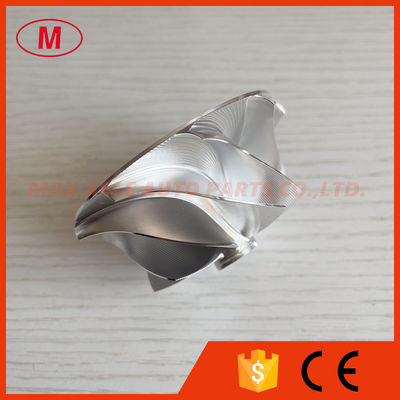

1.GT28 47.50/62.60mm 9+0 Blades Point Milling Turbocharger Milling/aluminum 2618/billet Compressor Wheel
2.Size:
Nose Diameter:13.00mm
inducer:47.50mm
Exducer:62.60mm
Tapered tip exducer:66.14mm
Tip height:5.23mm
Superback:2.30mm
Overall height:33.50mm
Bore size:6.00mm
bore type:through
Trailing Angle:60 degree
Cutback:16.0mm
splitter height:0.00mm
sp height angle:0.00 degree
Blades height:28.31mm
6+6 blades
forward rotation
Tapered tip Angle:22.7 degree
It is Customs size ,please check carefully before buying
