| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:GT15-25 forward

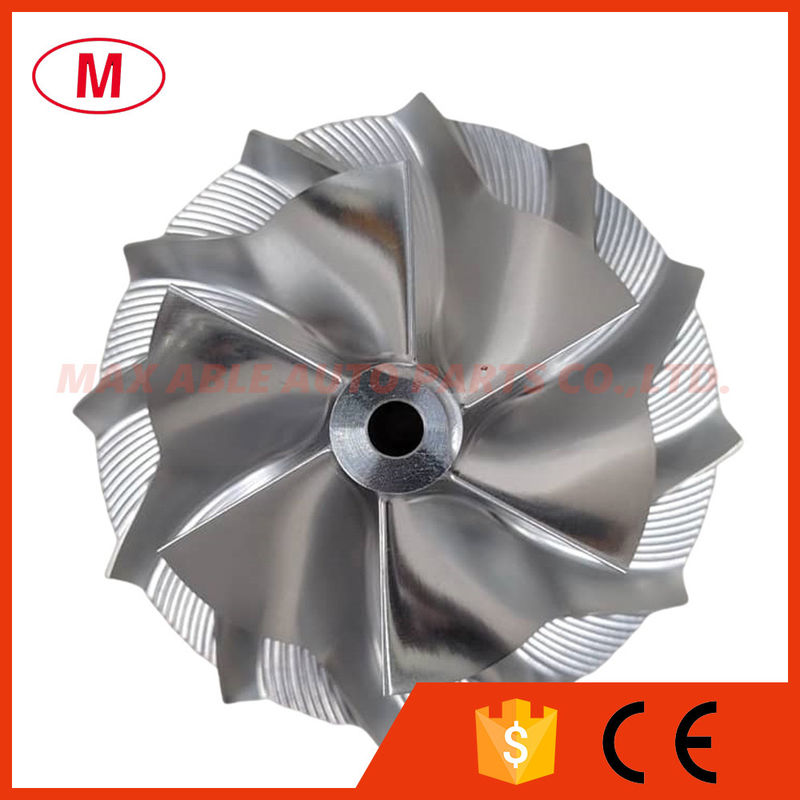

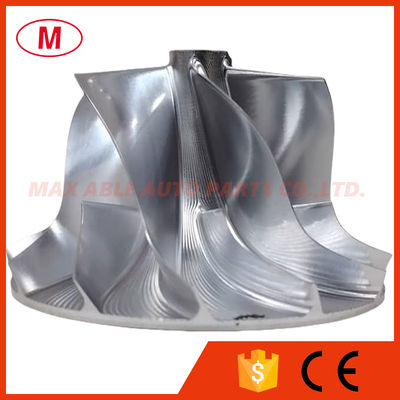

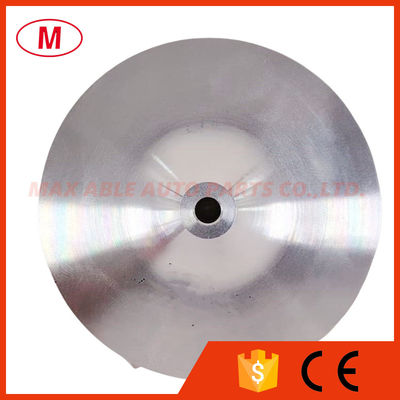

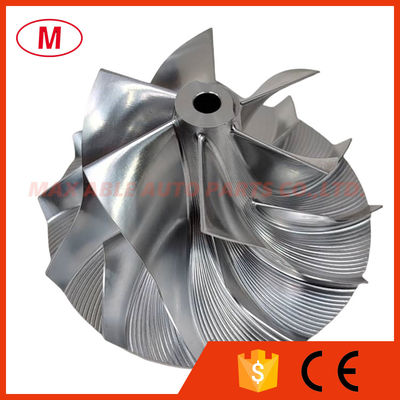

2.GT15-25 49.70/67.40mm 6+6 Blades high performance turbo billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:12.00mm
inducer:49.70mm
Exduder:67.40mm
Tapered tip exducer:71.70mm
Tip height:4.72mm
Superback:3.80mm
Overall height:35.00mm
bore size :5.08mm
bore type:through
Trailing Angle:55 degree
Cutback:4.7mm
SP Height Angle:-6.40
Splitter height:12.10mm
Blade height:29.00mm
Tapered Tip Angle:30 degree
6+6 blades
Forward rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
the minimun order is 5pcs
The more models we also have.
All the billet compressor wheels have been balanced.
