| Brand Name: | NO |
| Model Number: | TD05H 20G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 52.56/68.01mm | Type: | Turbochargers |
|---|
1. MODEL:TD05H 20G forward

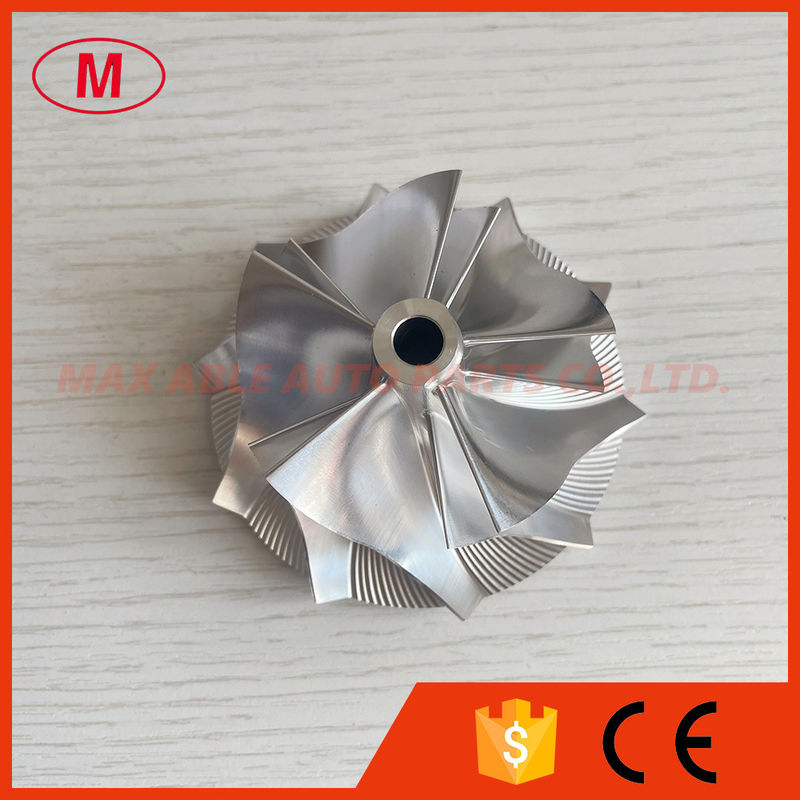

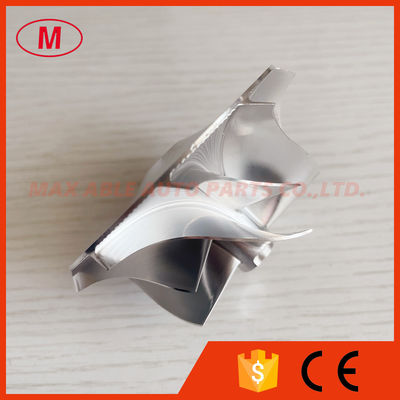

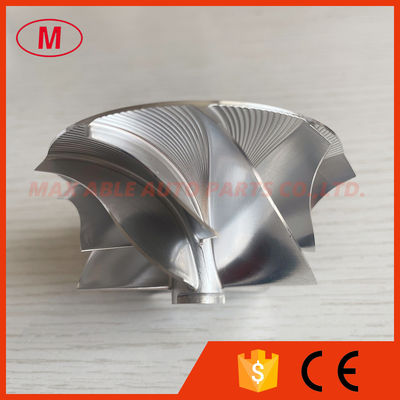

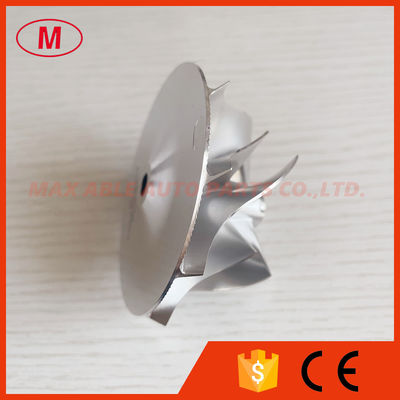

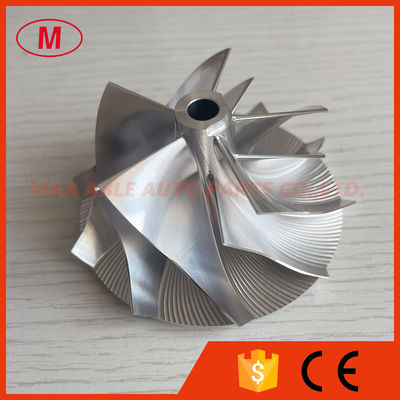

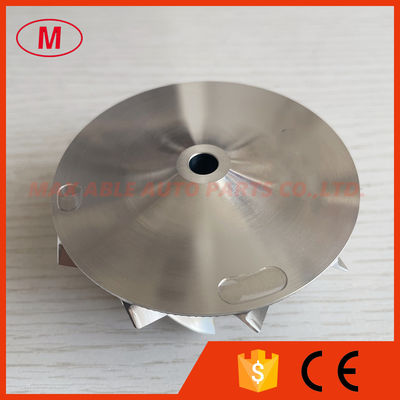

2.TD05H 20G forward 5+5 blades 52.56/68.01mm high performance turbo billet/milling/aluminum 2618 compressor wheel
Nose diameter:11.96mm
inducer:52.56mm
Exduder:68.01mm
Tapered tip exducer:73.05mm
Tip height:5.37mm
Superback:2.90mm
Overall height:35.20mm
bore size :6.50mm
bore type:through
Trailing Angle:50 degree
Cutback:0.0mm
SP Height angle:-8.30
Blades height:29.10mm
Splitter height :21.75mm
5+5blades
forward rotation
It is for OE compressor housing
Tapered tip Angle: 30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been blanced.
The more models we also have.
