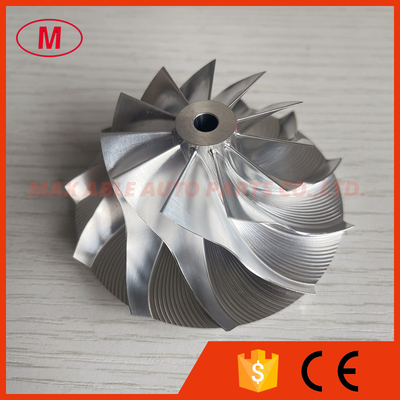

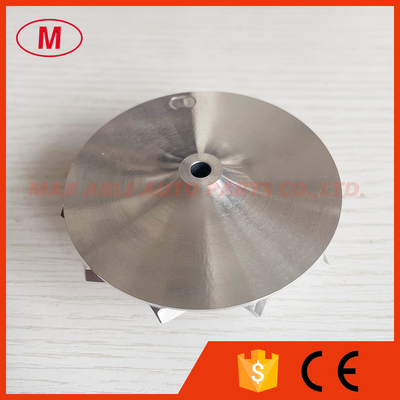

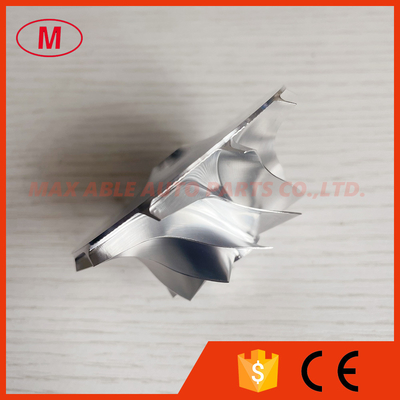

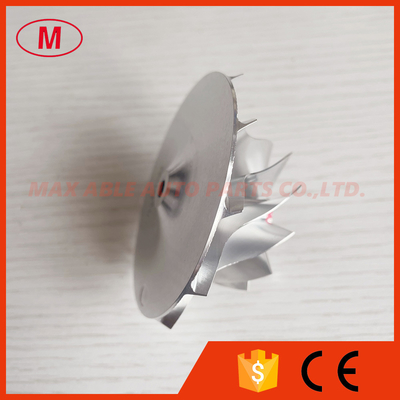

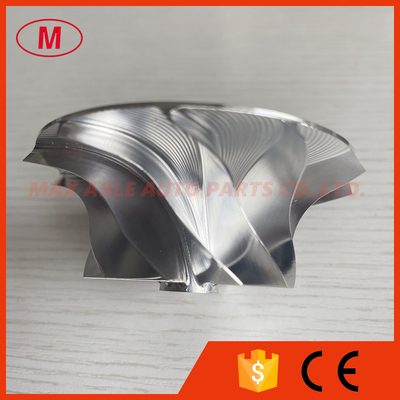

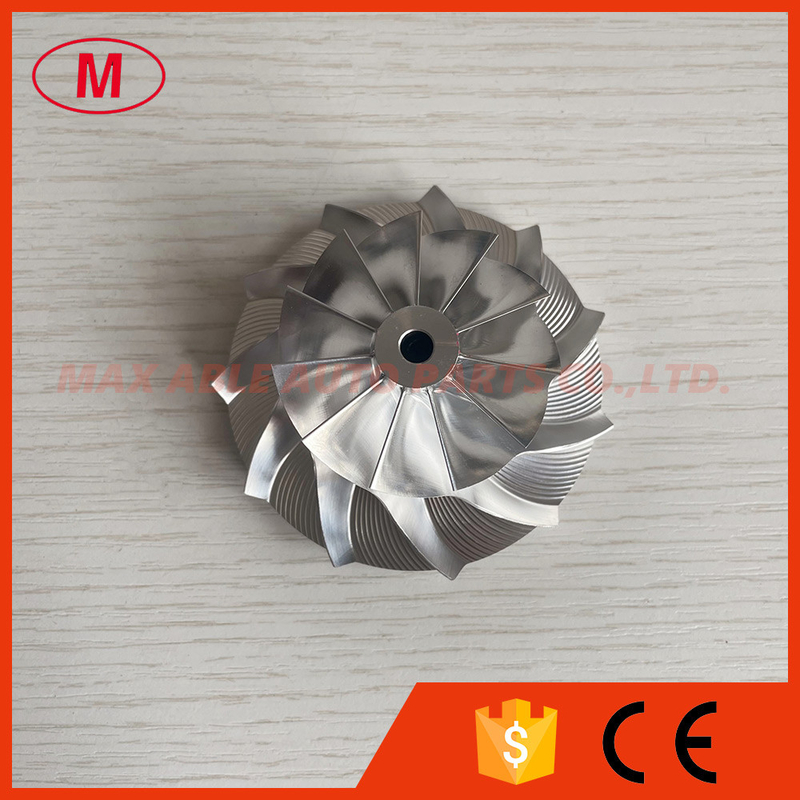

Name: GT15-25 45.00/69.00mm 11+0 blades Turbo milling/aluminum 2618/billet compressor wheel
Brand: Max Able Auto Parts Co.,Ltd.
SKU: GT15-25
Availability: InStock

Home Products Billet compressor wheel

GT15-25 45.00/69.00mm 11+0 blades Turbo milling/aluminum 2618/billet compressor wheel

Product Details:

Brand Name:	NO
Model Number:	GT15-25

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Packaging Details:	neutral packing
Delivery Time:	3-7 days
Payment Terms:	TT ,western union ,paypal
Supply Ability:	1000

Contact Now

Detailed Product Description

Size:	45.00/69.00mm	Type:	Turbochargers

1. MODEL:GT15-25 forward

2.GT15-25 45.00/69.00mm 11+0 blades Turbo Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:13.29mm

Inducer:45.00mm

exducer:69.00mm

Tapered tip exducer:73.13mm

Tip height:4.58mm

Superback:3.80mm

bore size :5.08mm

bore type:through

Overall height:32.41mm

Trailling angle:65 degree

Cutback:0.00mm

Tapered tip Angle:30 degree

SP height angle:0.00

Splitter height:0.00

Blade height:26.49mm

11+0 blades forward

It is for Custom size ,please check carefully before buying.

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

GT15-25 45.00/69.00mm 11+0 blades Turbo milling/aluminum 2618/billet compressor wheel
