| Brand Name: | NO |
| Model Number: | RHF3 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

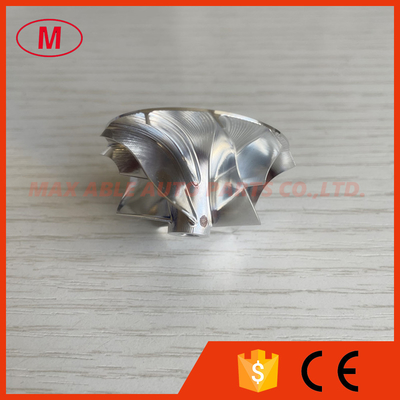

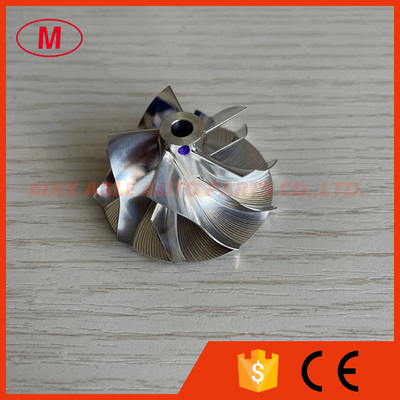

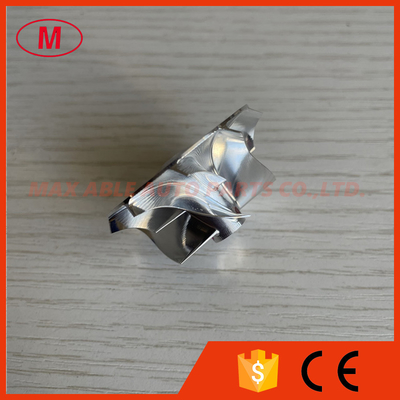

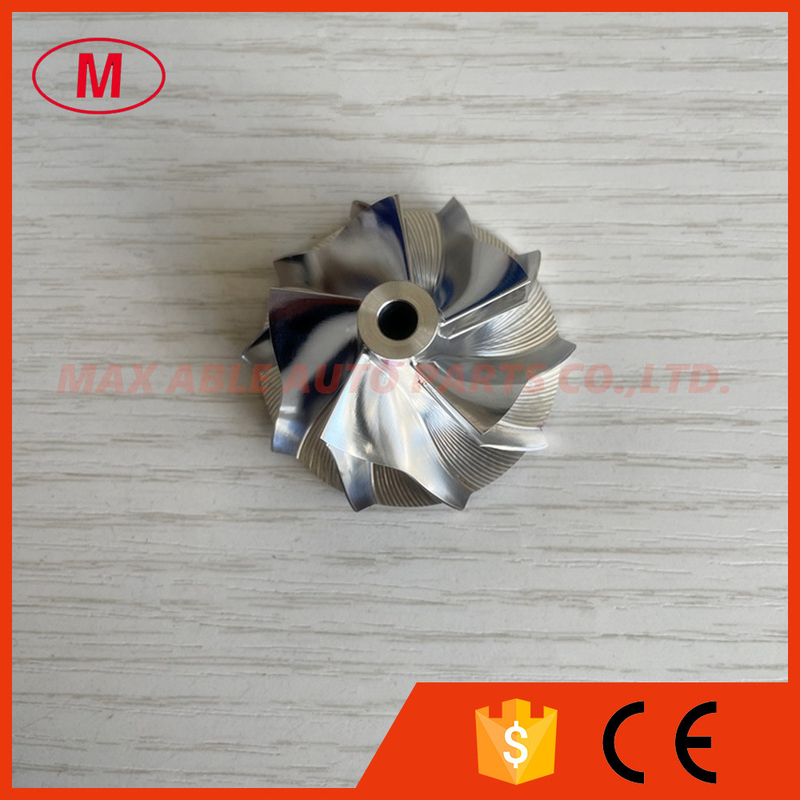

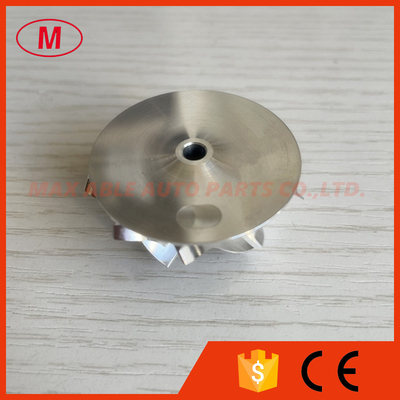

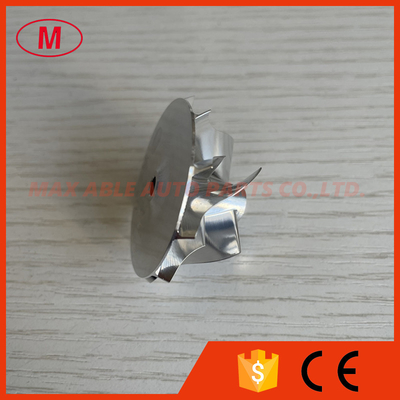

1. RHF3 31.00/40.00mm 5+5 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel for CK27, VJ2, VJ27, VL36, VL38, 55212916, 55222014, 55218934, 71724555, 71724556, 71724485, 55248311, 71794951 Fia-t 500 Abarth T-jet motor, Romeo Mito, F-iat Grande Punto 1.4L, F-iat Bravo 1.4L, Lancia Delta III 1.4L
2.Size:
Nose diameter:9.00mm
Inducer :31.00mm
Exducer:40.00mm
Tapered tip exducer:43.33mm
Tip height:3.68mm
superback:1.06mm
Overall height:21.40mm
bore size:4.41mm
bore type:through
Trailing Angle:60 degree
Cutback:3.0mm
SP height angle:5.00
Blade height:18.20mm
Splitter height:9.25mm
5+5 blades
forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
3.High quality and competitive price.
We have more size and we can produce as your requirement .
All the compressor wheel have been balanced
