| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD09 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:TD09 forward

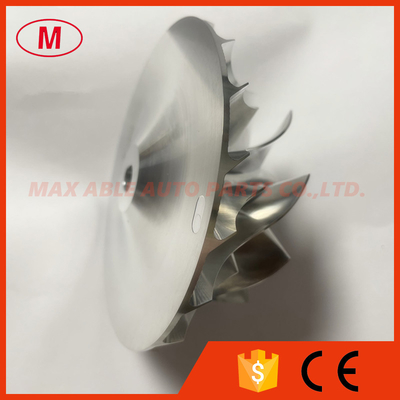

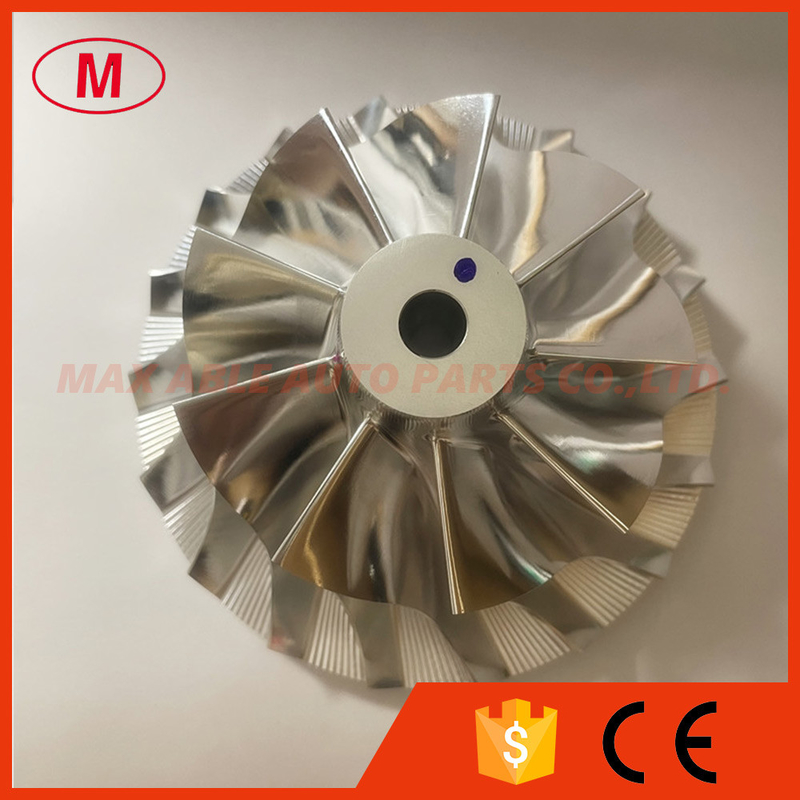

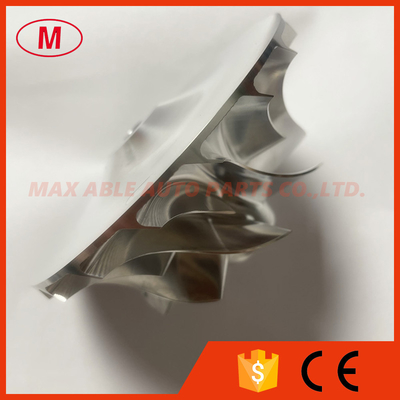

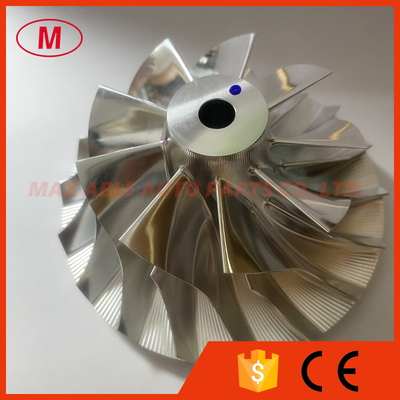

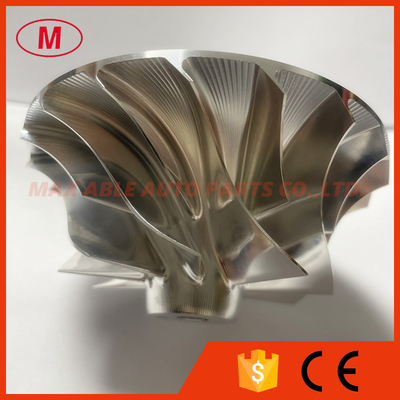

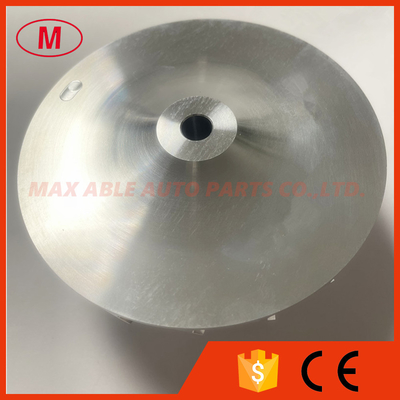

2.TD09 forward 77.40/110.00mm 9+9 blades 49132-40631 Turbo Billet/milling/Aluminum 2618 compressor wheel for 49132-04000, 49132-04010, 49132-04020, 49132-09530, TD09-36QRC-21.0 Earth Moving Construction Engine FGLD180 L6
3.Size:
Nose diameter:25.30 mm
inducer:77.40mm
exducer:110.00mm
Tip height:7.72mm
Superback:6.43mm
Blade height:39.40mm
Overall height:54.40mm
bore size :9.12mm
bore type :through
Trailing angle:45 degree
Tapered tip Angle: 0 degree
Cutback:1.0mm
Splitter height:23.30mm
Sp height angle:1.50
9+9 blades
forward rotation
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheel have been balanced.
