| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | td05hr |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:TD05HR 16G6-9T Reverse

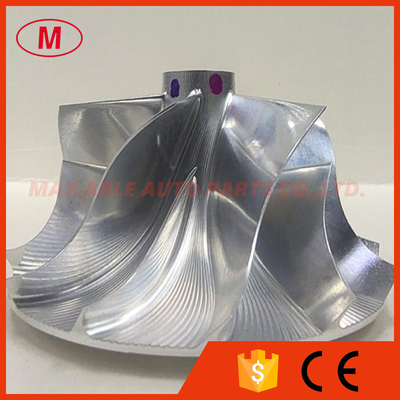

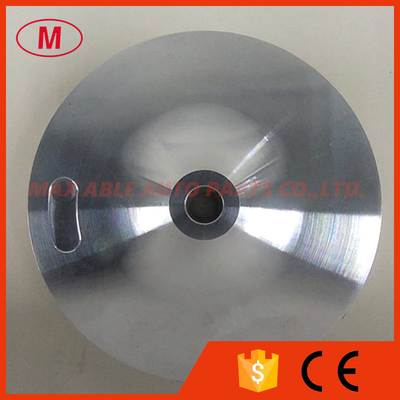

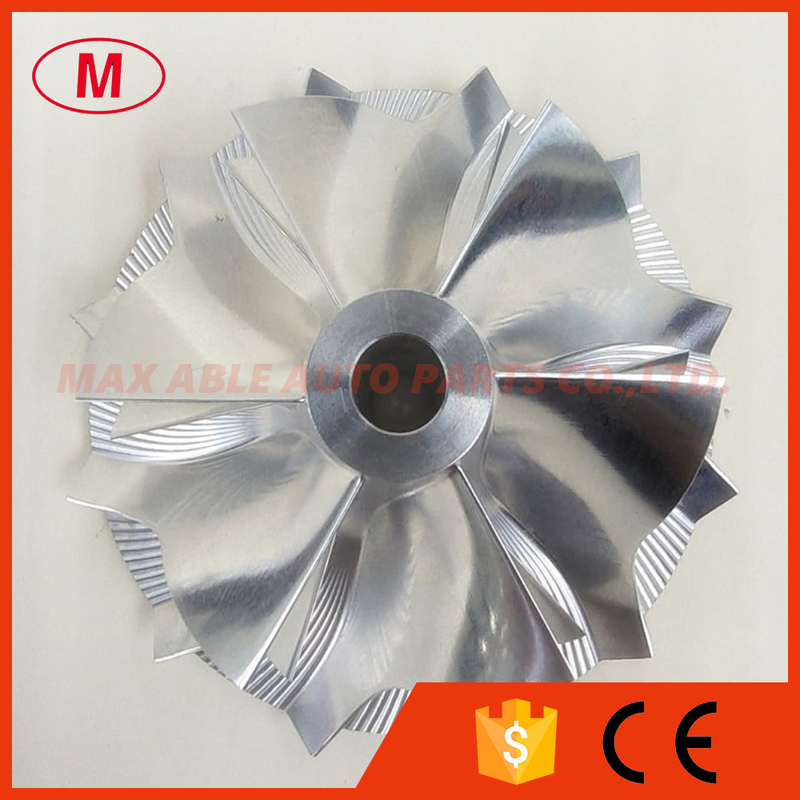

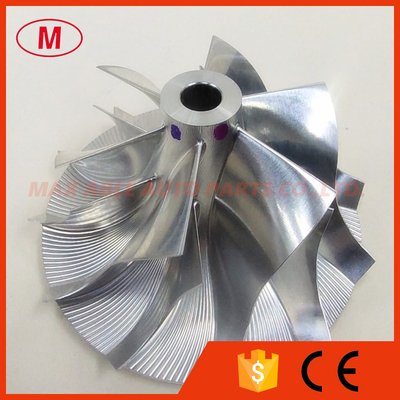

2.TD05HR 16G6-9T reverse 49.28/65.00mm 6+6 blades 49179-44100 high performance Turbo Billet/milling/Aluminum 2618 compressor wheel for 49178-01500/49178-01510 Lancer Evo04
3.Size:
Nose diameter:13.00 mm
inducer:49.28mm
exducer:65.00mm
Tapered tip exducer:69.15mm
Tip height:4.60mm
Superback:2.80mm
Blade height:27.00mm
Overall height:33.00mm
bore size :6.51mm
bore type :through
Trailing angle:45 degree
Tapered tip Angle: 30 degree
Cutback:6.0mm
Splitter height:18.20mm
Sp height angle:-10.00
6+6 blades
reverse rotation
It is custom size,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheel have been balanced.
